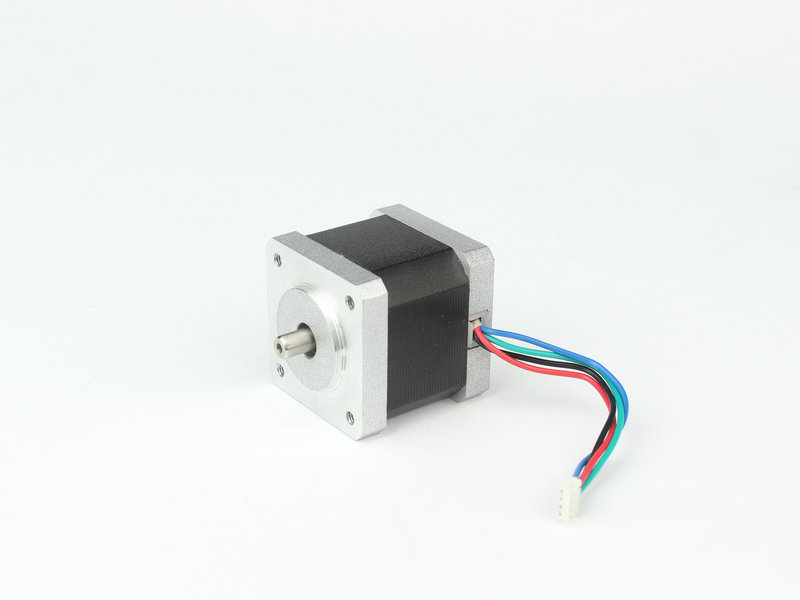

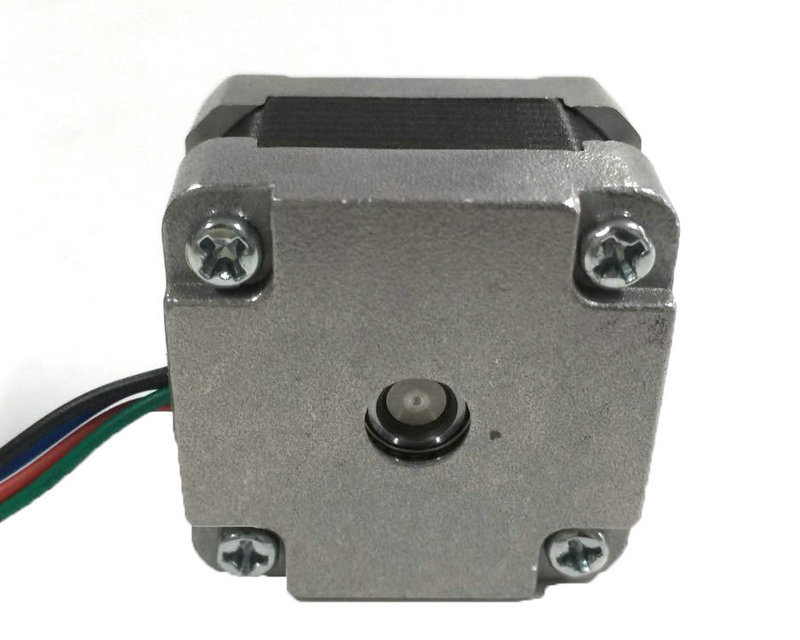

35BYGH 35mm Stepper Motor Hybrid NEMA 14 Frame 4 Wire 0.15N.M Torque For Precision Motion
35BYGH 35mm Stepper Motor Hybrid NEMA 14 Frame 4 Wire 0.15N.M Torque For Precision Motion
35BYGH 35mm Stepper Motor Hybrid NEMA 14 Frame 4 Wire 0.15N.M Torque For Precision Motion
35BYGH 35mm Stepper Motor Hybrid NEMA 14 Frame 4 Wire 0.15N.M Torque For Precision Motion
Specifications
Brand Name :
WEIGU
Model Number :
35BYGH
Certification :
RoHS
Place of Origin :
China
MOQ :
1
Price :
$5~10/unit
Payment Terms :
T/T,Western Union,MoneyGram,D/P
Supply Ability :
10000Units per month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
hybrid stepper motor
Step Angle :
1.8°
Phase :
2
Wire :
4-Lead
Body Size :
27mm/34mm/40mm
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

35BYGH Stepper Motor – NEMA 14 Frame, 4-Wire, 0.15N.m Torque for Precision Motion

The 35BYGH Stepper Motor, featuring a NEMA 14 frame, is built for precision motion applications. With 4-wire connectivity and 0.15N.m torque, it delivers reliable, controlled movement—ideal for 3D printers, small robotics, and lab equipment. Its compact design balances power and accuracy, ensuring consistent performance in tasks requiring precise positioning.

Mechanical Dimension:MM

35BYGH 35mm Stepper Motor Hybrid NEMA 14 Frame 4 Wire 0.15N.M Torque For Precision Motion

Technique Parameter

Item Specification
Step Angel 1.8°
Temperature Rise 80℃ max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100Ω Min.,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max.(450g-load)
Shaft Axial Play 0.08Max.(450g-load)

Specifications

Model No. Step Angle (°) Motor Length (mm) Current/Phase A Resistence /Phase Ω Industance /Phase mH Holding Torquue g.cm Leads No. Detent Torque g.cm Rotor Inertia g.cm² Weight Kg

35BYGH27

-0504

 1.8 27 0.5 10 14 1000 4 80 6 0.13

35BYGH34

-1004

 1.8 34 1 2 3 1200 4 110 9 0.17

35BYGH40

-1004

 1.8 40 1 2 4 1500 4 140 12 0.22

The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.
