Specifications
Brand Name :
yue lin sen
Model Number :
Y2255
Certification :
ISO9001 ISO13485
Place of Origin :
Dongguan, Guangdong
MOQ :
100 pcs
Price :
0.5-20
Payment Terms :
T/T
Supply Ability :
5000000pcs
Delivery Time :
5-8 working days
Packaging Details :
Vacuum packaging carton
Surfacefinish :
Ra 0.8 - 1.6 µm
Payment Term :
TT Westerm Union MomeyGram Paypal
Productname :
Medical Machining Parts
Specification :
200*300*260
Feature :
Slip Resistant
Hs Code :
7301200000
Wall Thickness :
0.1 mm - 3.0 mm
Material :
Stainless Steel, Titanium, Aluminum, Plastic
Surface Treatment :
Polished,anodizing
Customization :
Fully Customizable per Client Drawings
Biocompatibility :
Meets Medical Grade Standards
Application :
Medical Devices, Surgical Instruments, Implants
Leadtime :
2-6 weeks depending on order size
Trademark :
yue lin sen
Process :
Cnc Machining+deburrs, Anodized nature
Description

Customized Sandblasting Of 304 Stainless Steel Cannula Puncture Needle Scale

Customized Sandblasting Of 304 Stainless Steel Cannula Puncture Needle Scale

Product Application:

These precision-engineered 304 stainless steel capillary tubes are specifically designed for manufacturing high-performance cannula needles and three-bevel needles . They are critical components in medical and industrial applications requiring sharp, durable, and precisely marked penetrating tools.

  • Medical & Clinical Use: Hypodermic needles, biopsy needles, acupuncture needles, catheter introducers, and specialized surgical needles.

  • Laboratory & Research: Micro-injection systems, sample collection probes, and precision fluid transfer tools.

  • Industrial & Technical Applications: Precision dispensing nozzles for adhesives or lubricants, delicate probing instruments, and fine mechanical assembly tools.

Product Description:

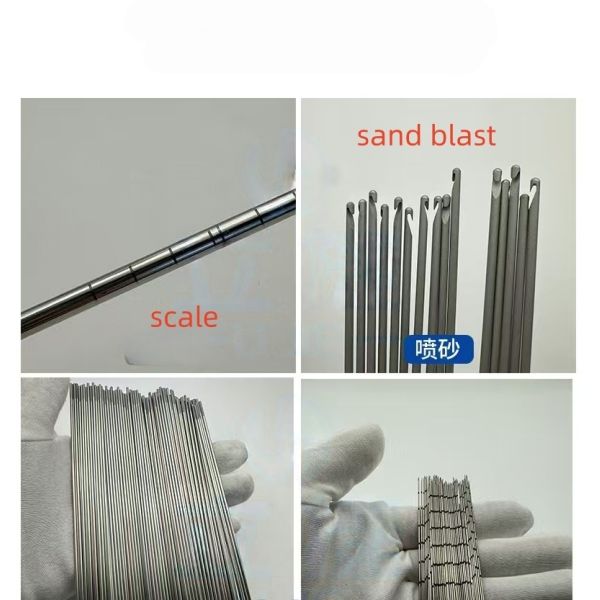

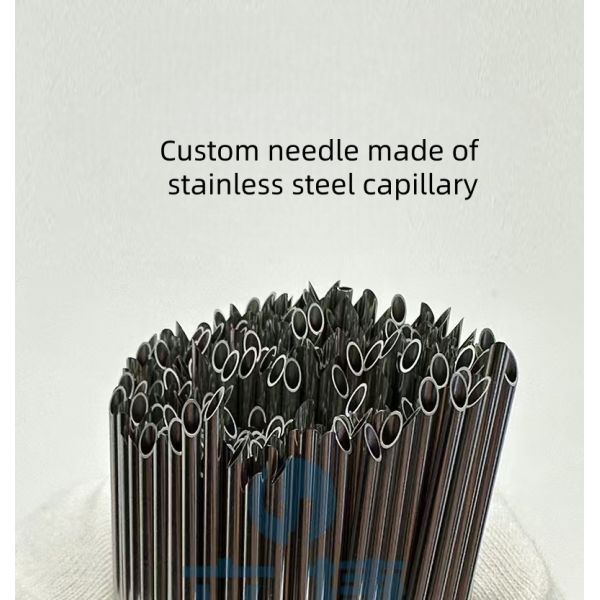

We specialize in the end-to-end custom fabrication of 304 stainless steel capillary tubes into cannula needles (hollow-core) and three-bevel needles (solid or hollow, featuring a triple-faceted ground point). Our comprehensive process includes precision tube cutting, point grinding/forming to create sharp, consistent bevels, followed by uniform sandblasting for an optimal matte, non-reflective surface finish. Finally, we apply high-precision, permanent graduation marking via laser engraving for accurate depth indication. Utilizing high-grade 304 stainless steel ensures excellent corrosion resistance, mechanical strength, and cost-effectiveness for applications where the superior biocompatibility of 316L is not mandatory.

Product Technical Parameters:

Category Parameter Details / Specification
Base Material Material Standard AISI 304 Stainless Steel / UNS S30400
Key Properties Good corrosion resistance, high strength, excellent formability and sharpness retention.
Needle Types Cannula Needle Hollow core for fluid passage. Customizable inner/outer diameter and tip geometry (e.g., lancet, pencil point).

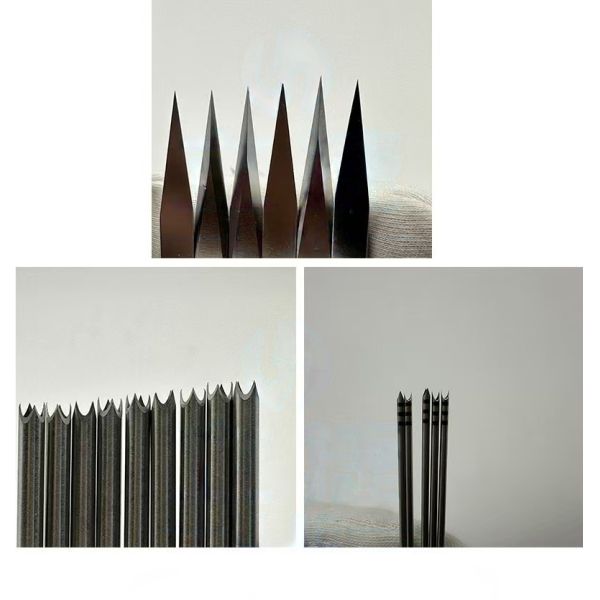

Three-Bevel Needle Triple-faceted ground point for superior sharpness and controlled penetration. Can be solid or hollow.
Processing Point Grinding/Forming Precision grinding to create sharp, consistent bevels (e.g., 12°-20° bevel angles) with minimal burrs.
Sandblasting Uniform matte finish for reduced glare, improved grip, and enhanced aesthetic. Controlled surface roughness.
Graduation Marking Permanent, high-contrast laser engraving of depth scales. Typical resolutions: 1mm, 5mm, or 10mm increments. Custom logos/text available.
General Specifications Outer Diameter (OD) 0.2 mm to 2.0 mm (standard range, customizable).
Inner Diameter (ID) For cannulas: Custom based on OD and wall thickness. Can be ultra-fine.
Wall Thickness 0.05 mm to 0.3 mm (typical for cannulas).
Needle Length Custom cut, typically from 10 mm to 150 mm.
Bevel Angle Standard: 12°, 15°, 18°. Custom angles available.
Dimensional Tolerance OD: ±0.01mm; Length: ±0.1mm (tighter tolerances achievable).
Quality Sharpness Testing Can meet industry-standard sharpness penetration force requirements.
Surface Finish Smooth, debris-free surface post-blasting. Bioburden control available for medical applications.
Cleanliness & Packaging Clean-room packaging optional. Standard packaging ensures protection from damage and contamination.
