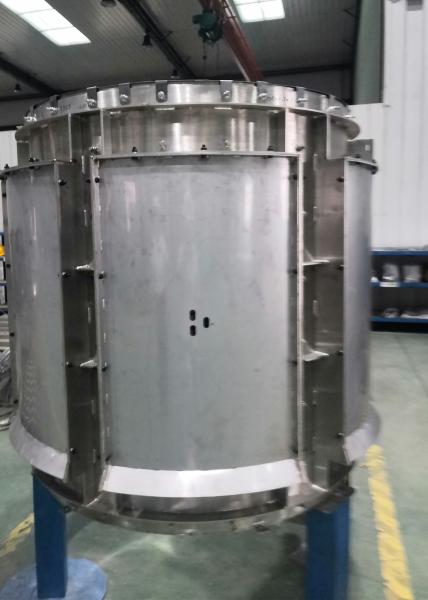

Vacuum Sintering High Temperature Furnace Heat Chamber 0-30C/Min Heating Rate
Vacuum Sintering High Temperature Furnace Heat Chamber 0-30C/Min Heating Rate
Vacuum Sintering High Temperature Furnace Heat Chamber 0-30C/Min Heating Rate
Vacuum Sintering High Temperature Furnace Heat Chamber 0-30C/Min Heating Rate
Vacuum Sintering High Temperature Furnace Heat Chamber 0-30C/Min Heating Rate
Vacuum Sintering High Temperature Furnace Heat Chamber 0-30C/Min Heating Rate
Vacuum Sintering High Temperature Furnace Heat Chamber 0-30C/Min Heating Rate
Vacuum Sintering High Temperature Furnace Heat Chamber 0-30C/Min Heating Rate
Vacuum Sintering High Temperature Furnace Heat Chamber 0-30C/Min Heating Rate
Vacuum Sintering High Temperature Furnace Heat Chamber 0-30C/Min Heating Rate
Specifications
Brand Name :
Achemetal
Model Number :
Customization
Certification :
ISO9001
Place of Origin :
Henan,China
MOQ :
1piece
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
5000 piece per month
Delivery Time :
within 30 days after order
Packaging Details :
Standard Wooden Package with foam filling,stainless fasten belt.
Material :
molybdenum and other material
Purity :
99.95%
Size :
Based on customer needs
Shape :
as drawing
Surface :
bright
Application :
vaccum furance
Selling scale :
worldwide
Delivery :
Sea freight and air freight
Port :
Tianjin,Qingdao ,Shanghai
Description

Vacuum Sintering Furnace Heat Chamber For Furnace Heat Chamber

Product application:

Widely used in enterprises and institutions scientific research and small batch production, as well as colleges and universities involved in scientific research and teaching of ceramics, metallurgy, electronics, glass, chemical, machinery, refractory materials, new material development, special materials, building materials in the field.

Max.temperature 1400℃
Working temperature 0-1400℃
Furnace Chamber size(DWH)mm 400*300*300 or as your requirement
Heat element Sic heater
voltage and frequency As per customer's need
Heating rate 0-30C/min
Temperature accuracy ±1°C
Thermocouple B type
Temperature control Use international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.
Max.vacuum -0.1Mpa
Inlet gas/Atmosphere It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

 The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump.

Sealing way

 Furnace door adopts integral plane milling, silica gel strip embedded seal, with strong sealing, easy to open and close furnace door
Appearance design The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use.
Furnace shell structure Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.
Temperature control security The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.

Furnace Chamber material

 Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

Furnace chamber design

 Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.
Sandard accessories Vacuum pump 1pc, Crucible tongs 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace
Other temperature options 1200C,1400C,1700C,1800C
Furnace chamber standard size 100*100*100mm,200*150*150mm,300*200*200mm,400*300*300mm or other OEM size
Waranty One year

Achemetal technical workers have abundant experience, can accurately assembly the original parts of heating rooms produced by our company into an integral heating room, and can provide on-site services.

Technicians of our company can provide effective suggestions when you design heating rooms.
