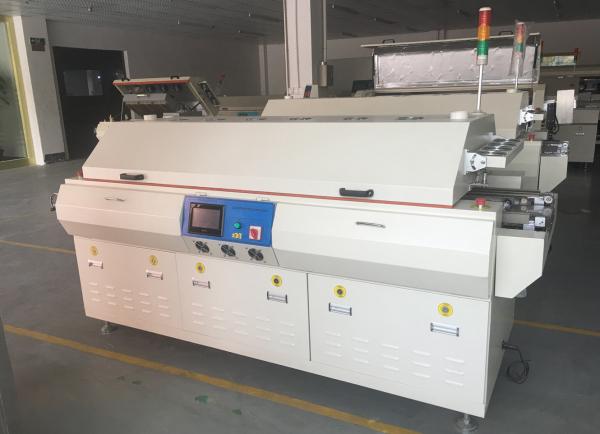

6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel
6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel
6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel
6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel
6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel
6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel
Specifications
Mesh belt width :
450mm
Brand Name :
HONREAL
Model Number :
HR-E640
Certification :
CE
Place of Origin :
CHINA
MOQ :
1Set
Price :
USD 9000-11000 Per Set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100 Sets Per Month
Delivery Time :
15 Days
Packaging Details :
Export wooden box packaging
Heating zones :
6 zones
Temperature accurancy :
±1 ℃
Heating tunnel :
1938mm
Dimension :
L3571*W1200*H1450
Cooling :
one cooling zone, fans for cooling
Controlling type :
Touch screen and PLC
Max PCB width :
400mm
Description
6 Zones SMT Reflow Soldering Machine Hot Air Reflow Oven 1938mm Heating Tunnel
Product Specifications
Attribute Value
Heating zones 6 zones
Heating tunnel 1938mm
Dimension L3571*W1200*H1450
Cooling One cooling zone, fans for cooling
Controlling type Touch screen and PLC
Temperature accuracy ±1 ℃
Max PCB width 400mm
Mesh belt width 450mm
Hot Air Convection Reflow Soldering LED Low Cost Reflow Oven Machine
Key Features
  • Streamlined shape design with touch screen and PLC control system
  • Stores 50 temperature parameter groups with 2 profile testing ports

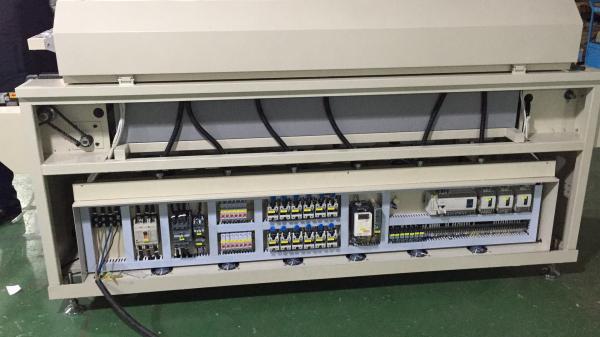

  • Premium components: Schneider breakers, KETE SSR, Omron box breakers
  • Automatically opening upper zone and hood for easy maintenance
  • Safety electrical pole prevents cover drop during power failure
  • Ni-Cr heater filaments provide rapid 15-minute ramp-up time
  • Stainless steel inner tunnel for easy cleaning
  • Forced air convection for superior temperature accuracy (±1℃)

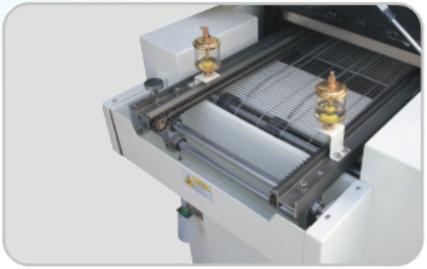

  • Dual conveyor system: stainless steel mesh belt with pin chain
  • Industrial chiller for enhanced cooling performance
  • SMEMA interface compatibility
Technical Parameters
Model HRM-640
Heating zones Upper 6 zones
Bottom 6 zones
Heating tunnel 1938mm
Dimension L3571*W1200*H1450
Net weight About 1100Kg
General power 41KW
Power consumption Approx. 8-8KW
Ramp time (to 260°C) < 15 mins
Temperature range Ambient - 350℃
Temperature uniformity ±2 ℃
Conveyor height 900±20mm
PCB clearance 30mm
Aluminum Heating System (HR-E640 Model)
  • Composed of 2 aluminum plates and 2 stainless steel U-shape heaters
  • Simplified maintenance with easy screw-based heater replacement
  • Extended service life compared to traditional heating elements
  • Superior materials ensure temperature stability
  • Retrofit compatible with existing reflow ovens
Product Images
6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel 6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel
Company Profile

Shenzhen Honreal Technology Co., Ltd is a national high-tech enterprise specializing in SMT equipment R&D, production, and sales. With 5 million registered capital, we serve top global electronics companies with experienced technical teams and innovative solutions.

6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel
Certifications
6 Zone SMT Reflow Soldering Machine with 1938mm Heating Tunnel
Our Services
  • Pre-sale consultation and product recommendations
  • Strict quality control and on-time delivery
  • Installation, commissioning, and technical training
  • Long-term technical support and spare parts supply
  • Comprehensive after-sales service
Frequently Asked Questions
Q: How can you guarantee your sales' quality?
A: Every machine undergoes rigorous testing before delivery to ensure excellent performance.
Q: How is the training?
A: We provide training videos and detailed user manuals with each machine. On-site training for engineers is also available.
Q: Can I have my logo on the product?
A: Yes, we offer free customized logo service according to your requirements.
Q: Is it hard to use these machines?
A: Most operators become proficient within 2 days of training.
