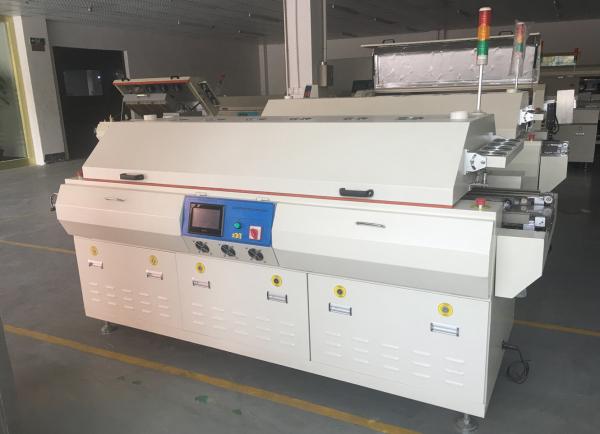

6 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control
6 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control
6 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control
6 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control
6 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control
6 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control
6 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control
6 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control
Specifications
Heating tunnel :
1540mm
Heating method :
Fully forced air convection
Temperature controlling :
PID close-loop control, SSR drive
Dimension :
L2550*W750*H1250
Max PCB width :
300mm
Brand Name :
HONREAL
Model Number :
HR-E630
Certification :
CE
Place of Origin :
CHINA
MOQ :
1Set
Price :
USD 10500-12000 Per Set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100 Sets per Month
Delivery Time :
15 Working Days
Packaging Details :
Woodencase
Controlling type :
Touch screen and PLC
Mesh belt width :
330mm
Heating zones :
6 zones
Description
6 Zones SMT Reflow Soldering Machine, Hot Air PCB Reflow Ovens CE Certified
Product Specifications
Attribute Value
Heating zones 6 zones
Heating tunnel 1540mm
Dimension L2550*W750*H1250
Controlling type Touch screen and PLC
Heating method Fully forced air convection
Temperature controlling PID close-loop control, SSR drive
Max PCB width 300mm
Mesh belt width 330mm
Product Features

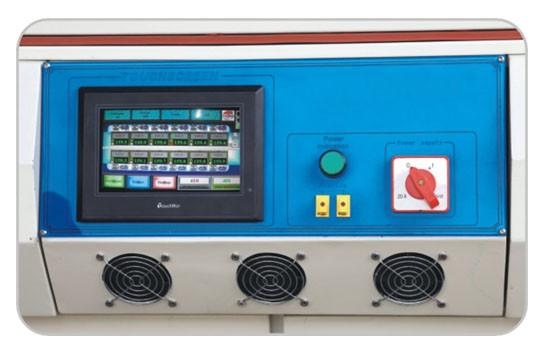

  • Streamline shape design with PLC+PID closed loop control for precise temperature control and repeatable profiles
  • Stores 50 temperature parameter groups with 2 additional ports for profile testing
  • Premium components including Schneider breakers (German) and Omron box relays (Japan)
  • CE certified blower designed specifically for lead-free reflow processes
  • Easy-access design with openable upper zone, hood, and electrical box cover for maintenance
  • Stainless steel inner tunnel withstands high temperatures and simplifies cleaning
  • Full forced hot air convection in both upper and bottom zones
  • Hardened stainless steel mesh belt and chain conveyor with SMEMA compatibility
  • Modular design reduces maintenance time and costs
Technical Parameters
Model HR-E630
Heating zones Upper 6 zones, bottom 6 zones
Heating tunnel 1540mm
Dimension L2550*W750*H1250
Net weight Approx. 360Kg
General power 33KW
Power consumption Approx. 4-8KW
Rising time 15 mins
Temperature range Ambient to 350℃
Temperature accuracy ±1℃
Temperature uniformity ±2℃
Cooling One cooling zone with fans
Conveyor method Mesh belt and chain conveyor
Conveyor height 900±20mm
Conveyor speed 0-900mm/min
Power supply 380V, 3ph, 50Hz
Machine Schematic
6 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control
Machine Characteristics
6 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control
Certifications
6 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control
Packaging & Shipping
6 Zone SMT Reflow Soldering Machine with Touch Screen PLC Control
Frequently Asked Questions
How can you guarantee your sales' quality?
We guarantee that every machine undergoes rigorous testing before delivery to ensure excellent performance.
How is the training?
Your engineers can visit our company for training, or easily learn operation through included training videos and user manual.
Can I have my logo on the product?
We offer free customized logo service - just provide your requirements.
Is it hard to use these machines?
No, most clients learn operation within 2 days.
