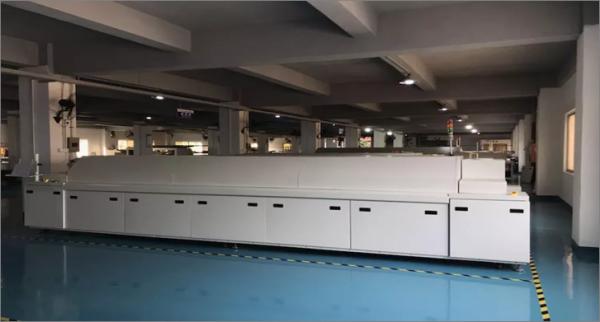

Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection
Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection
Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection
Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection
Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection
Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection
Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection
Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection
Specifications
Brand Name :
HONREAL
Model Number :
HR-8C
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100 sets per month
Delivery Time :
15 work days
Packaging Details :
woodencase
Dimensions :
L5520*1430*1530 mm
Zones constitute :
Upper8,bottom8,2 cooling zones
Heating method :
Fully forced air convection
Temperature controlling :
PID close-loop control, SSR drive
Temperature range :
Ambient---300℃
Temperature accurancy :
±1 ℃
Conveyor method :
Mesh belt and chain conveyor
Max PCB width :
400mm
Hood Opening :
Motorized
0ptions :
Center rail support
Description
Hot Air Conveyor Reflow Oven Smt Solder Reflow Machine Lead Free Solder

Features:

HR Series High End/Nitrogen Reflow Soldering Machine

1. Modular design of temperature zone makes maintenance convenient and quick.
2. Self-extending guide rail design further prevents deformation from causing the board to fall off.
3. Segmented heating method saves energy and reduces power consumption.
4. One extended forced constant air cooling zone at the top and bottom
5. Flux recovery device meets environmental protection requirements
6. SMEMA communication enables automated operation mode
7. About 70% of the machine uses imported brand accessories to ensure durability and stability.


Machine HR-8C HR-10C
Heating zones upper 8 zones upper 10 zones
bottom 8 zones bottom 10 zones
Heating tunnel 3110mm 3890mm
Dimension L5520*1430*1530 L6300*1430*1530
Net weight about 2760Kg about 3060Kg
General power 64KW 83KW
Power consumption Approx.7--30KW Approx.9--38KW
Rising time 20 minutes 20 minutes
Controlling type PC + PLC controlling
Heating method Fully forced air convection
Temperature controlling PID close-loop control, SSR drive
Temperature range Ambient---300℃
Temperature accurancy ±1 ℃
Temperature uniform ±1.5 ℃
Cooling 3 cooling zones (top and bottom)
Conveyor method Mesh belt and chain conveyor
Conveyor height 900±20mm
Max PCB width 400mm
PCB clearance Top / Bottom 30mm
Conveyor direction Left to right
Conveyor speed 300-2000mm/min
Hook lift Electrical screw pole
UP/Downstream communication SMEMA
Power supply 380v,3ph,50hz


Temperature zone part:

Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection

  • Small hot air circulation structure, hot air volume can be adjusted by computer.
  • Imported high temperature resistant wind motor with air volume up to 70CFM.
  • Extend the length of the temperature zone to 300mm/temperature zone
  • Nickel-chromium heating wire imported from Japan
  • 3mm thick electrolytic plate air distribution plate, uniform heat distribution
  • Segmented heating to reduce power consumption


Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection

  • Unique front and rear air return design to avoid cross-temperature
  • Thermocouple wire imported from Japan
  • PID closed-loop control, accuracy reaches ±1℃
  • Transverse temperature difference up to 2℃
  • Process capability CPK reaches 1.784
Installation and Calibration

1.Working environment and conditions
This equipment shall be placed on horizontal, dry and well-ventilated workshop;
Ambient temperature :5~45℃ ;
Ambient humidity: 20~95%;
Rated power supply: 380V, 100A (power wire shall be stranded wire of 16mm²), 3-phase and 5 wires system;
Artificial draft system shall be installed at both ends of this equipment. The air flow of the draft tube is 25 m³/min.
2.Installation of equipment
Shall position the equipment according to the real production requirements and practical situation;
Raise the footpads of this equipment and simultaneously level this equipment by using these footpads
This equipment must be installed horizontally.
3.Calibration
All parameters of this equipment shall be adjusted in accordance with customer’s requirements such as product, production rate and solder paste used. These adjustments comprise the linear speed of the chain, the temperature of each zone, etc. This equipment has been calibrated before shipment. It is only necessary to check if your power supply is applicable to this equipment when arriving at your factory.

Who We Are ?

Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting differentcustomer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.


Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection


Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection

Certification

Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection


Packaging

Modular Hot Air Reflow Oven SMT 16-Zone Forced Convection

FAQ

Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.


Q:How is the training?

A:After buying our machines, your engineers can go to our company or it is so easy to operate

the machine according the training video and user manual,the user manual will come with the machine together.


Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company Aogeo perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.


Q: Is it hard to use these machines?

A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
