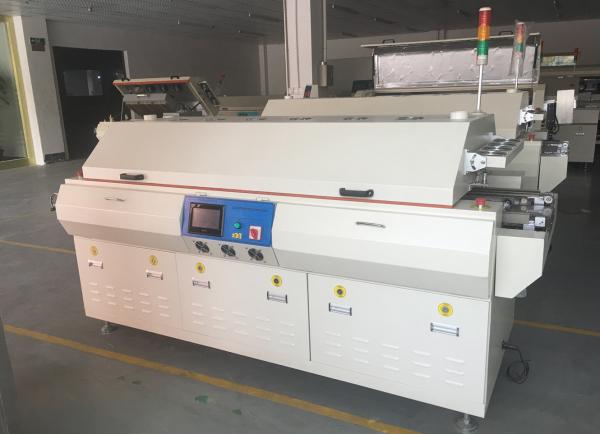

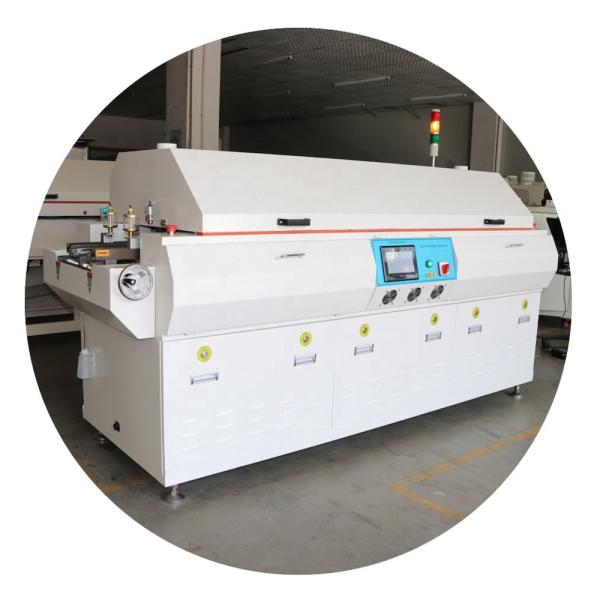

4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
Specifications
Dimension :
L1920*W750*H1250
Rising time :
15 mins
Brand Name :
HONREAL
Model Number :
HR-E430
Certification :
CE
Place of Origin :
CHINA
MOQ :
1Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100 Sets per Month
Delivery Time :
20 Days
Packaging Details :
Woodencase
Max PCB width :
300mm
Temperature controlling :
PID close-loop control, SSR drive
Temperature range :
Ambient---350℃
Heating tunnel :
980mm
Controlling type :
Touch screen and PLC
Heating zones :
4 zones
Heating method :
Fully forced air convection
Temperature accurancy :
±1 ℃
Description
SMD Soldering Surface Mount Reflow Oven Small 4 Zones 980mm Heating Tunnel
Product Specifications
Attribute Value
Heating zones 4 zones
Heating tunnel 980mm
Dimension L1920×W750×H1250
Rising time 15 mins
Controlling type Touch screen and PLC
Heating method Fully forced air convection
Temperature controlling PID close-loop control, SSR drive
Temperature range Ambient - 350℃
Temperature accuracy ±1℃
Max PCB width 300mm
Product Features
  • Streamlined design with touch screen and PLC control system capable of storing 50 temperature profiles
  • Advanced software with temperature setting/editing, PCB parameter menu, profile testing, alarms, and multi-language support
  • Premium components including Schneider breakers, KETE SSR, and Omron box breakers
  • CE-certified blower designed for lead-free reflow with stable operation and low noise
  • Electrically operated upper zone and hood for easy cleaning and maintenance
  • Safety electrical pole maintains position even during power failure
  • Special Ni-Cr heater filaments enable rapid ramp-up (15 minutes from ambient to set temperature)
  • Stainless steel inner tunnel for easy cleaning
  • Forced air convection throughout for excellent temperature accuracy and uniformity
  • Combination stainless steel mesh belt and pin chain conveyor system
  • Industrial chiller for superior cooling performance
  • SMEMA interface included
Technical Parameters
Model HR-E430
Heating zones Upper 4 zones, Bottom 4 zones
Heating tunnel 980mm
Dimension L1920×W750×H1250
Net weight ≈280Kg
General power 23KW
Power consumption Approx. 3-7KW
Temperature uniformity ±2℃
Cooling One cooling zone with fans
Conveyor method Mesh belt and chain conveyor
Conveyor height 900±20mm
Mesh belt width 330mm
PCB clearance 30mm
Power supply 380V, 3ph, 50Hz
4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
Easy Motor Replacement Design
  1. Remove designated screws
  2. Extract entire structure (blower motor + rounded fixing plate + fan)
  3. Remove motor fan fixed by set screw
  4. Replace blower motor and fan
  5. Reassemble and secure with screws
Complete replacement can be performed in under 15 minutes.

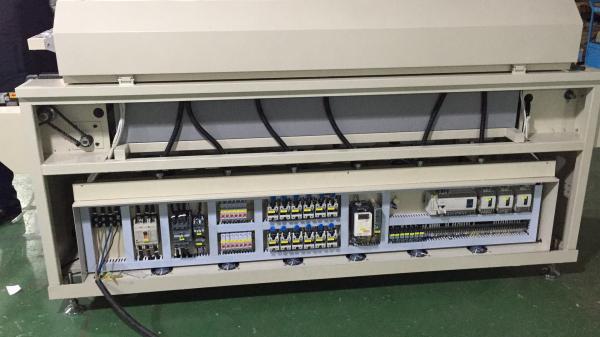

Machine Schematic
Additional Images
4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control 4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
Certifications
4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
Our Services

We provide comprehensive pre-sales consultation to recommend products matching your exact requirements. Our commitment includes:

  • Strict adherence to contract terms for production and delivery
  • Professional installation, commissioning, and technical training
  • Long-term technical support and consumables supply
  • Prompt response to spare parts requests
Frequently Asked Questions
How can you guarantee your sales' quality?

Every machine undergoes rigorous testing before delivery to ensure optimal performance.

How is the training?

Your engineers can visit our facility or learn easily through provided training videos and user manuals included with the machine.

Can I have my logo on the product?

We fully support free customized logo service - simply provide your requirements.

Is it hard to use these machines?

No - most clients become proficient within 2 days of operation.

Packaging & Shipping
4-Zone SMT Reflow Oven 980mm Tunnel with Touch Screen Control
