Small Pixle Led Display Indoor P2 LED Screen 1/40 Scan Novastar Control
Small Pixle Led Display Indoor P2 LED Screen 1/40 Scan Novastar Control
Small Pixle Led Display Indoor P2 LED Screen 1/40 Scan Novastar Control
Small Pixle Led Display Indoor P2 LED Screen 1/40 Scan Novastar Control
Small Pixle Led Display Indoor P2 LED Screen 1/40 Scan Novastar Control
Small Pixle Led Display Indoor P2 LED Screen 1/40 Scan Novastar Control
Small Pixle Led Display Indoor P2 LED Screen 1/40 Scan Novastar Control
Small Pixle Led Display Indoor P2 LED Screen 1/40 Scan Novastar Control
Specifications
Cabinet material :
Iron cabinet or diecasting aluminum cabinet
Model :
Small Pixle P2 full color led display
Cabinet Size :
640 x 480mm or Customized
Resolution :
320*240
Scan :
40s
Warranty :
3 years
Refresh Rate :
3840Hz adjustable
Brand Name :
LONGDA LED
Model Number :
Small Pixle P2
Certification :
CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Place of Origin :
ShenZhen , China
MOQ :
1 Sqm
Price :
Price is negotiable
Payment Terms :
L / C,T / T,Western Union
Supply Ability :
5000sqm per month
Delivery Time :
15 - 18 days
Packaging Details :
Flight case packing or Plywood case packing
Brightness :
600cd/m2 adjustable
Description


Small Pixle Led Display P2 High Gray With Novastar Contorl System For Control Room



Product Introduction :


Small Pixel Pitch LED Display delivers clear images, vivid colors, and fine details. With a small distance between pixels, it provides high-resolution visuals, even when viewed from a short distance.

It is ideal for conference rooms, control rooms, TV studios, museums, shopping malls, and other indoor spaces that require high-quality display performance.



Small Pixle Led Display Indoor P2 LED Screen 1/40 Scan Novastar Control




Product Specifications :


Indoor P2 Full Color LED Screen

Led Module Specification

NO.

Item

Specification

1

Pixel Pitch

2mm

2

Module Resolution

W64×H64dots

W128×H64dots

W160×H80dots

W120×H60dots

3

Module Size

128*128mm

256*128mm

320*160mm

240*120mm(soft)

4

Led Packing

1515

7

LED composition

1R1G1B

Cabinet Specification

1

Cabinet Size

512*768mm

512*512mm

640*480mm

480*480mm

2

Module Qty

W4X H6=24PCS

W2X H4=8PCS

W2× H3=6PCS

W2× H4=8PCS

3

Physical Resolution

W256×H384dots

W256×H256dots

W320×H240dots

W240× H240dots

4

Power Consumption(MAX.)

400W/m2

200W/m2

200W/m2

650W/m2

5

Power Consumption(AVE.)

150W/m2

100W/m2

100W/m2

300W/m2

6

Physical Density

250000 dots/m2

7

Cabinet Material

Iron cabinet or diecasting aluminum cabinet

8

Net Weight

11Kg

8Kg

9.7Kg

8kg

Screen Specification

1

Brightness

700cd/m2

800cd/m2

600cd/m2

700cd/m2

2

Colors

16.7 trillion

3

Brightness Control

Software 256 level adjustable

4

Gray Level

14

5

View Distance

2m~20m

1.3~12m

6

Refresh Rate

≥1200~1920Hz

≥1200~1920Hz

≥1920~3840Hz

≥2880Hz

7

Drive Mode

1/32s

1/40s

1/30s

8

Life Span

100,000h

9

MTBF

1000h

10

Control mode

Synchronous control or Asynchronous control

11

Frame Frequency

≥60Hz

12

Certification

CE/ROHS/FCC/CCC/ISO9001/ISO14001

13

Operation Temperature

-20℃ ～ +45℃

14

Operation Humidity

10%～95%




Small Pixle Led Display Indoor P2 LED Screen 1/40 Scan Novastar Control

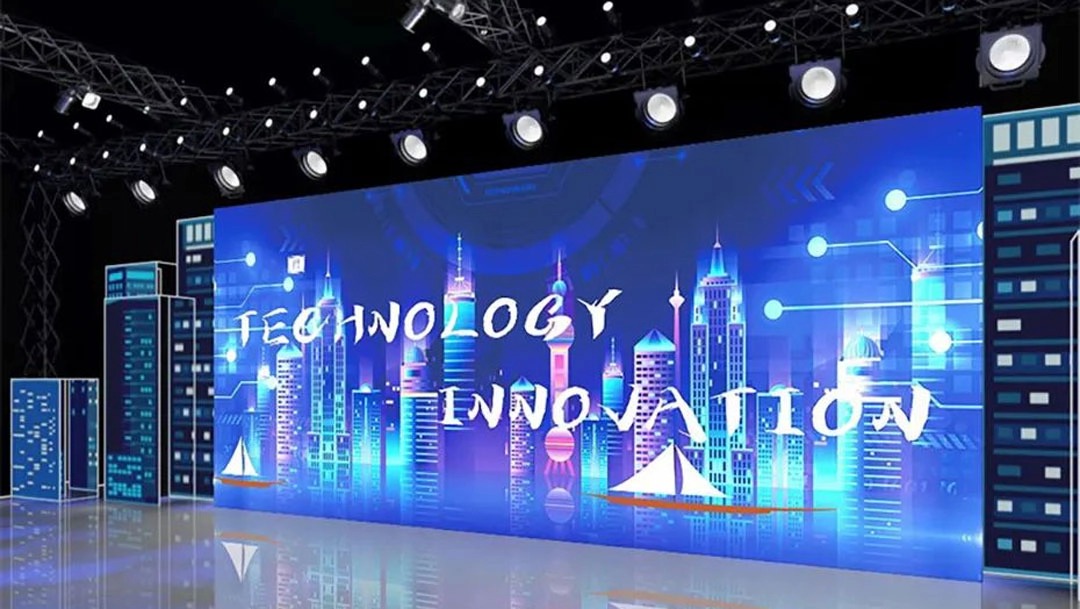

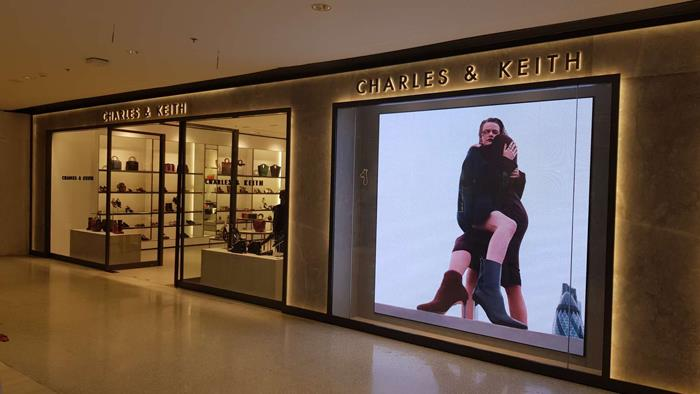

Main Applications

  • Conference Rooms: Presentations and video meetings.
  • Control Rooms: Monitoring, data, and command centers.
  • TV Studios: Broadcast backgrounds and video production.
  • Museums & Exhibition Halls: Digital exhibits and visual presentations.
  • Shopping Malls: Advertising and brand promotion.
  • Corporate Showrooms: Product displays and company presentations.
  • Hotels & Event Halls: Meetings, events, and commercial displays.


Small Pixle Led Display Indoor P2 LED Screen 1/40 Scan Novastar Control

Small Pixle Led Display Indoor P2 LED Screen 1/40 Scan Novastar Control



FAQ :


Q1 : Are you a manufacturer or trading company ?

A1 : We are a Professional OEM / ODM manufacturer which has specialized in led display industry for more

than 12 years .


Q2 : How does your factory do regarding quality control ?

A2 : Quality is priority . Brighter people always attach great importance to quality controlling from the very

beginning to the very end . We focus on every detail .


Q3 : What is your MOQ ?

A3 : Any quantity is acceptable for your order . And the price is negotiable for large quantity .


Q4 : When will you make the delivery ?

A4 : We can make the delivery within 3 - 5 working days for the led modules and 10 - 12 days for the led finished

screen according to the size and quantities of your order .


Q5 : What technical supports can you offer ?

A5 : We provide all kinds of technology trainings for free , including the operation and maintenance training of the LED

screens in our factory . we can send an engineer team to the country of the customer to instruct the installation .


Q6 : How long is the warranty ?

A6 : The standard warranty is 1 year . It could be longer upon request .
