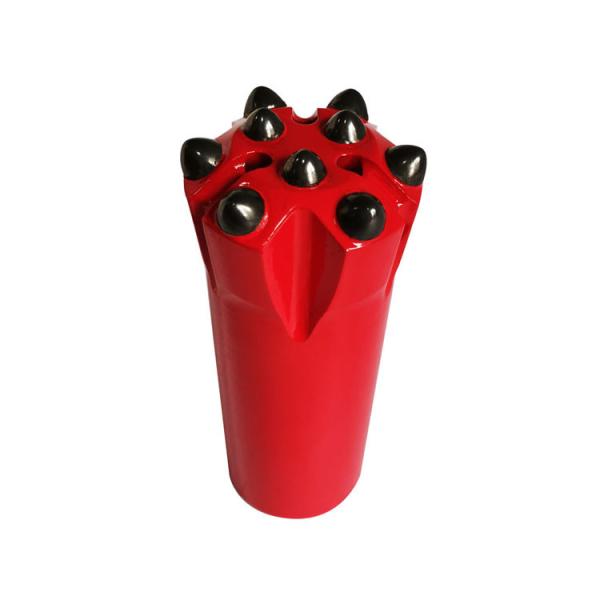

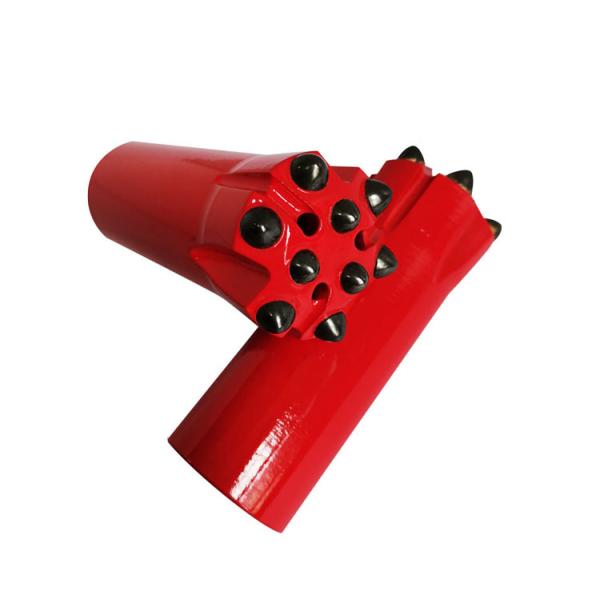

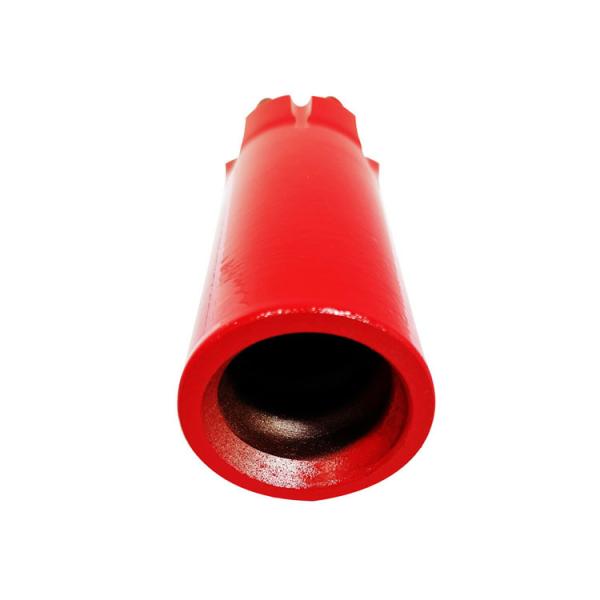

R32 45mm Ballistic Spherical Button Drill Bits Tool For Rock Drilling
R32 45mm Ballistic Spherical Button Drill Bits Tool For Rock Drilling
R32 45mm Ballistic Spherical Button Drill Bits Tool For Rock Drilling
R32 45mm Ballistic Spherical Button Drill Bits Tool For Rock Drilling
R32 45mm Ballistic Spherical Button Drill Bits Tool For Rock Drilling
R32 45mm Ballistic Spherical Button Drill Bits Tool For Rock Drilling
R32 45mm Ballistic Spherical Button Drill Bits Tool For Rock Drilling
R32 45mm Ballistic Spherical Button Drill Bits Tool For Rock Drilling
Specifications
Brand Name :
Litian Heavy Industry
Model Number :
Top Hammer Drill Bit
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, D/P, L/C, Western Union, MoneyGram
Supply Ability :
According to order quantity
Delivery Time :
3-30 days
Packaging Details :
Plywooden cases
Product Name :
R32-45mm Button Drill Bit
Materal :
Tugestun Carbide，Structural Alloy Steel
Application :
Facedrilling & Bolting
Body Shape :
Normal skirt
Thread :
R32
Diameter :
45mm
Bit Shape :
Spherical, Ballistic , Mixed Buttons
Custom Design :
Taper, Diameter, Length, Color can be customized
Description

R32-45mm Ballistic Spherical Button Drill Bits Tool for Rock Drilling

Product Parameter

Product

R32-45mm Button bit

Diameter

45mm

1 3/4"

Buttons × button diameter

Front: 3×9mm

Gauge: 6×10mm

Flushing Hole Qty

Front: 3

Gauge: 1

Weight

～0.7kg

Button Shape

Ballistic

Spherical

Mixed

Model No.

R32-45R9ZC

R32-45S9ZC

R32-45M9ZC


R32 45mm Ballistic Spherical Button Drill Bits Tool For Rock DrillingR32 45mm Ballistic Spherical Button Drill Bits Tool For Rock Drilling

R32 45mm Ballistic Spherical Button Drill Bits Tool For Rock DrillingR32 45mm Ballistic Spherical Button Drill Bits Tool For Rock Drilling

R32 45mm Ballistic Spherical Button Drill Bits Tool For Rock DrillingR32 45mm Ballistic Spherical Button Drill Bits Tool For Rock Drilling

Product Advantages

Production flow chart

Drill Rod Specification

Specification for Rock Drill Bit
Material
Structural Alloy Steel + Tugestun Carbide

Application
Tunnel , Blasting , Mining , Quarrying, Piling, Indutrial water-well, and Infrastructure Construction
Facedrilling and Bolting, Bench Drilling, Production drilling, Long hole drilling, Drifting
Thread Type
R25, R28, R32, R35, R38, T38, T45, T51, GT60, ST58, ST68
Skirt Design
Normal type, Retrac type, Straightrac type
Face Design
Flat face, Drop center face, Uni-face, Cross type face, Reaming button type
Bit Shape
Spherical buttons, Ballistic buttons, Mixed buttons
Head Diameter
28mm~152mm
Custom Design
Thread, Diameter, Length, Color can be customized

Application

R32 45mm Ballistic Spherical Button Drill Bits Tool For Rock Drilling
