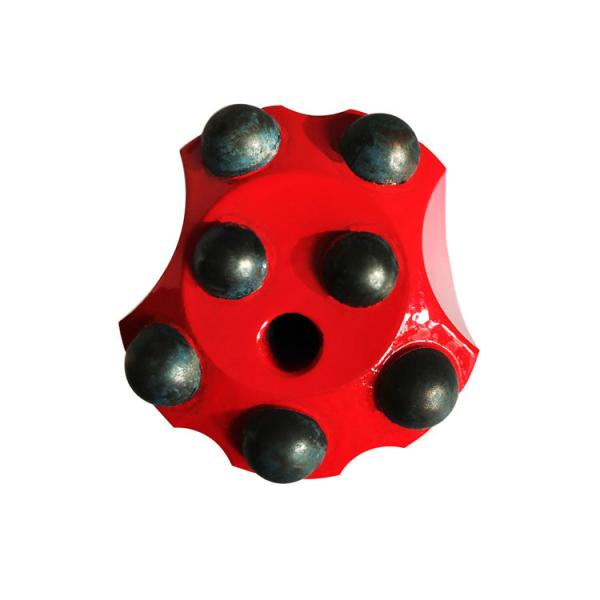

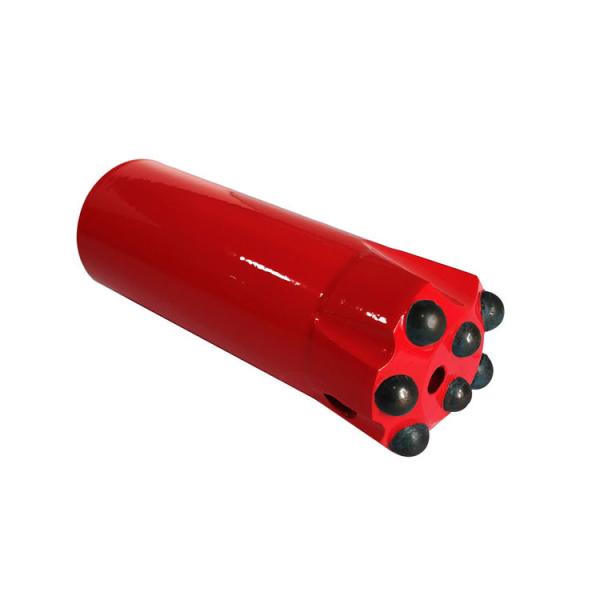

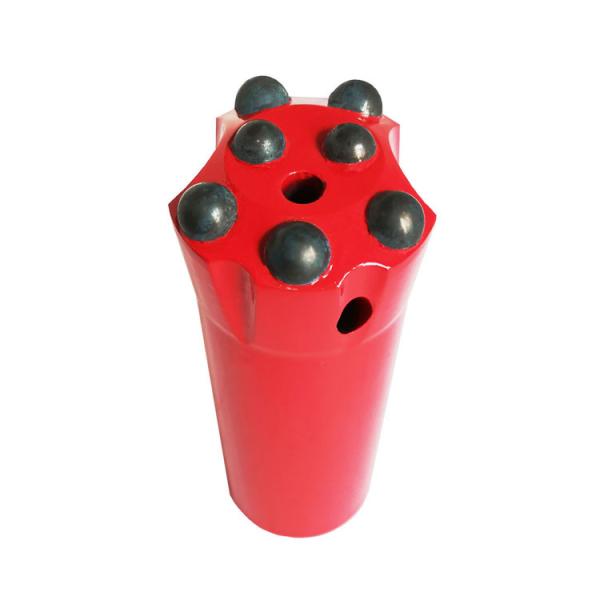

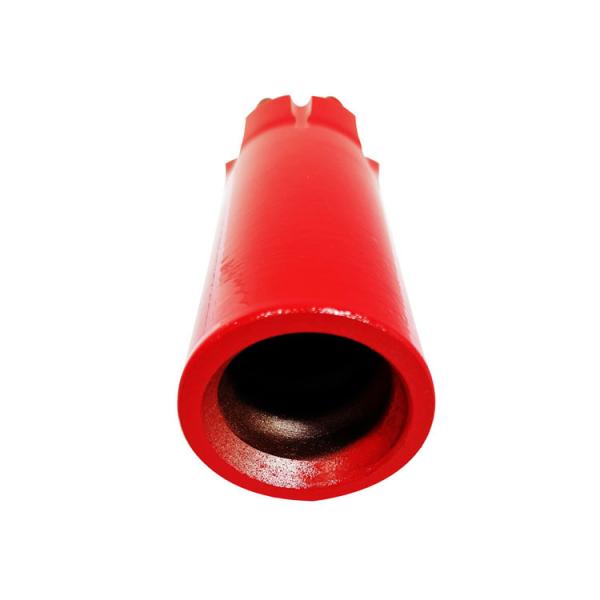

R32 41mm Threaded Button Bits For Rock Drilling
R32 41mm Threaded Button Bits For Rock Drilling
R32 41mm Threaded Button Bits For Rock Drilling
R32 41mm Threaded Button Bits For Rock Drilling
R32 41mm Threaded Button Bits For Rock Drilling
R32 41mm Threaded Button Bits For Rock Drilling
R32 41mm Threaded Button Bits For Rock Drilling
R32 41mm Threaded Button Bits For Rock Drilling
Specifications
Brand Name :
Litian Heavy Industry
Model Number :
Top Hammer Drill Bit
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, D/P, L/C, Western Union, MoneyGram
Supply Ability :
According to order quantity
Delivery Time :
3-30 days
Packaging Details :
Plywooden cases
Product Name :
R32-41mm Button Bit
Material :
Tugestun Carbide，Structural Alloy Steel
Application :
Facedrilling & Bolting
Bit Shape :
Spherical, Ballistic , Mixed Buttons
Thread :
R32
Diameter :
41mm
Button Shape :
Regular Skirt Body
OEM :
Acceptable
Description

R32-41mm Thread Button Bit For Rock Drilling

Product Parameter

Product

R32-76mm Button bit

Diameter

41mm

1 5/8"

Buttons × button diameter

Front: 2×8mm

Gauge: 5×9mm

Flushing Hole Qty

Front: 2

Gauge: 2

Weight

～0.5kg

Button Shape

Ballistic

Spherical

Mixed

Model No.

R32-41R7ZC

R32-41S7ZC

R32-41M7ZC


R32 41mm Threaded Button Bits For Rock DrillingR32 41mm Threaded Button Bits For Rock Drilling

R32 41mm Threaded Button Bits For Rock DrillingR32 41mm Threaded Button Bits For Rock Drilling

Product Advantages

Production flow chart

Drill Rod Specification

Specification for Rock Drill Bit
Material
Structural Alloy Steel + Tugestun Carbide

Application
Tunnel , Blasting , Mining , Quarrying, Piling, Indutrial water-well, and Infrastructure Construction
Facedrilling and Bolting, Bench Drilling, Production drilling, Long hole drilling, Drifting
Thread Type
H22, R25, R28, R32, R35, R38, T38, T45, T51, GT60, ST58, ST68
Skirt Design
Normal type, Retrac type, Straightrac type
Face Design
Flat face, Drop center face, Uni-face, Cross type face, Reaming button type
Bit Shape
Spherical buttons, Ballistic buttons, Mixed buttons
Head Diameter
28mm~152mm
Custom Design
Thread, Diameter, Length, Color can be customized

Application

Litian provides rock drilling top hammer drill bits for every application, such as underground mining and tunneling, surface mining and quarries, road and construction. The threaded connecting drill bit is mainly used with hydraulic drill rods (pneumatic drill rods) and hydraulic rock drills (or pneumatic rock drills). It uses different forms of threads to cooperate with the drill rod to perform drilling operations.

More Selection:

Diameter Buttons × button diameter(mm) Flushing hole Gauge buttons angel° Button Shape Weight (kg)

Model No.
mm inch Front Gauge Front Side
41 1 5/8" 2×8 5×9 1 1 35° Spherical 0.5 R32-41S7ZC
43 1 11/16" 2×8 5×9 1 1 35° Spherical 0.6 R32-43S7ZC
43 1 11/16" 2×8 5×9 1 1 40° Ballistic 0.6 R32-43R7ZC
43 1 11/16" 2×8 5×9 2 – 40° Ballistic 0.6 R32-43R7FZC
45 1 3/4" 2×9 5×10 1 2 35° Spherical 0.7 R32-45S7ZC
45 1 3/4" 2×9 5×10 1 2 40° Ballistic 0.7 R32-45R7ZC
45 1 3/4" 3×9 6×10 1 1 35° Spherical 0.7 R32-45S9ZC
45 1 3/4" 3×9 6×10 2 1 40° Ballistic 0.7 R32-45R9ZC
48 1 7/8" 3×9 6×10 3 1 35° Spherical 0.9 R32-48S9ZC
48 1 7/8" 3×9 6×10 3 1 35° Spherical 0.9 R32-48R9ZC
48 1 7/8" 2×9 5×10 1 2 35° Spherical 0.9 R32-48S7ZC
48 1 7/8" 2×9 5×10 1 2 40° Ballistic 0.9 R32-48R7ZC

51

 2" 3×9 6×10 3 1 40° Spherical 1.2 R32-51S9ZC

57

 2 1/4" 3×10 6×11 3 1 40° Ballistic 1.1 R32-57R9ZC

64

 2 1/2" 4×10 8×10 2 2 30° Spherical 1.8 R32-64S12ZC

76

 3" 4×11 8×11 2 2 30° Ballistic 1.7 R32-76R12ZC

FAQ

1. Type of company
We are manufacturer based in Huludao city (Liaoning Province,China).


2. Production period for an order ?
Normally it takes 20-30 days for production. Only within 3 days if we have stock on your request size.


3. Shipping way ?
Bulk order: we suggest by sea, by train or by air, and deliver to the appointed place.
Sample order: we suggest Courier express or by air


4.Quality Control ?
We have our own experienced QC and a perfect QC system ISO9001. We will inspect and test every single product quality for every order before shipping.


5. After Services ?
a. Our sales team will response for your question within 24 hours(Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality.


6. Accept OEM or ODM ? Accept customized services?
Acceptable. All our products are customizable, eg. size, color, accessories.


7. How can I trust your company ?
Our company has been certificated by Chinese government. You can check our company information on Chinese government webiste "National Enterprise Credit Information Publicity System", and view the factory evaluation verified by TÜV Rheinland.
