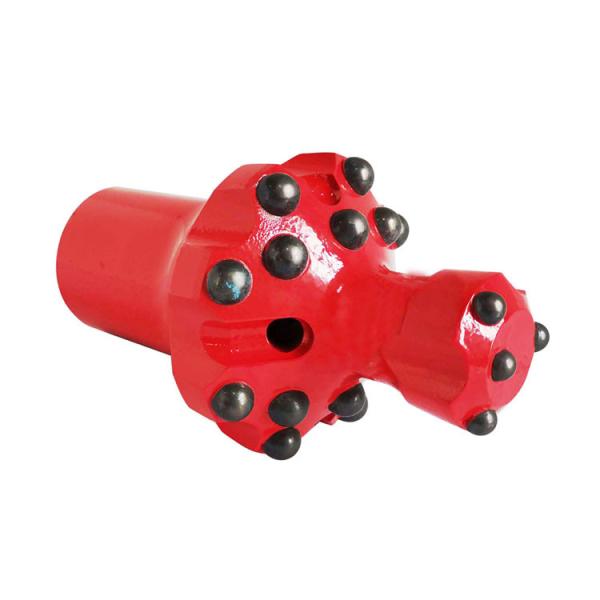

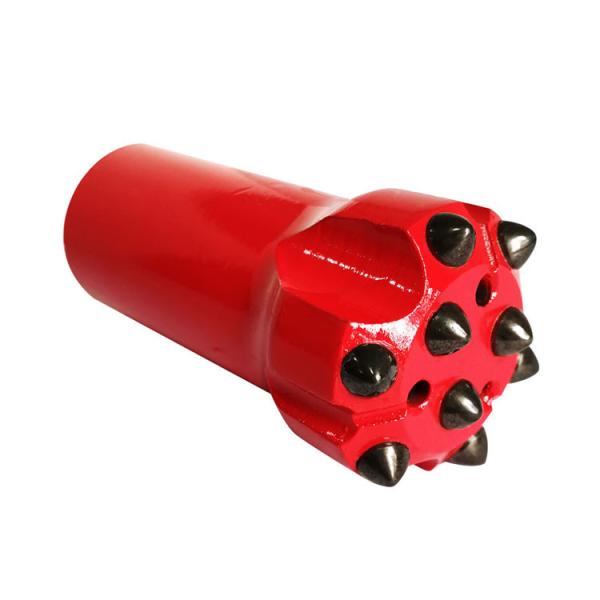

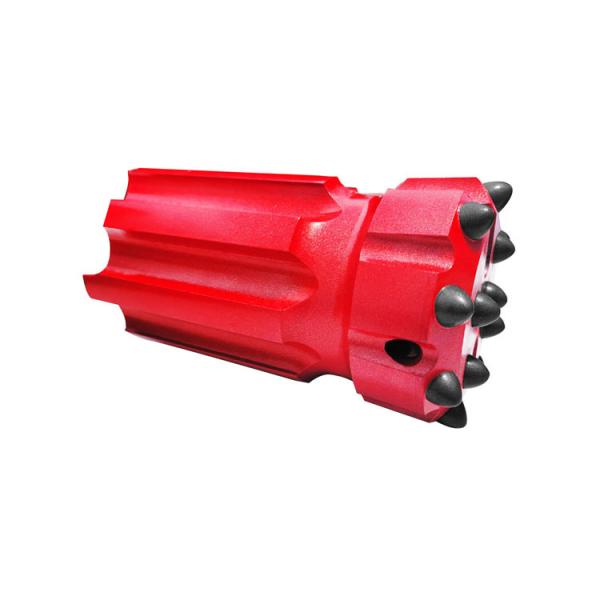

Tungsten Carbide Button T45 Threaded Shank Drill Bits
Tungsten Carbide Button T45 Threaded Shank Drill Bits
Tungsten Carbide Button T45 Threaded Shank Drill Bits
Tungsten Carbide Button T45 Threaded Shank Drill Bits
Tungsten Carbide Button T45 Threaded Shank Drill Bits
Tungsten Carbide Button T45 Threaded Shank Drill Bits
Tungsten Carbide Button T45 Threaded Shank Drill Bits
Tungsten Carbide Button T45 Threaded Shank Drill Bits
Specifications
Brand Name :
Litian Heavy Industry
Model Number :
Top Hammer Drill Bit
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, D/P, L/C, Western Union, MoneyGram
Supply Ability :
According to order quantity
Delivery Time :
3-30 days
Packaging Details :
Plywooden cases
Thread :
T45
Button Material :
Tugestun Carbide
Body Materal :
Structural Alloy Steel
Application :
Tunnelling , Mining , Quarrying, Construction
Skirt Design :
Normal type, Retrac type, Straightrac type
Face Design :
Flat, Drop center, Uni-face, Cross type, Reaming button type
Bit Shape :
Spherical, Ballistic, Mixed buttons
Diameter :
28mm~152mm
Color :
Red, etc
Custom Design :
Thread, Diameter, Length, Color can be customized
Description

T45 Thread Shank Bit Mining Machinery Fittings

According to the construction conditions, rock type or mineral conditions, and drilling equipments, we can select the most suitable drilling tools, equipment working parameters and drilling construction scheme, so as to help the user to improve the drilling efficiency, reduce the drilling cost and achieve better comprehensive benefits and higher labor productivity.

T45 threaded drill button bit is used in conjunction with the T45 threaded drill rod, coupling sleeve, shank adapter, and all are installed on the rock drill for rock breaking operations.

Product Parameters

T45 Series Diameter Buttons × button diameter(mm) Flushing hole Gauge buttons angel° Button Shape Weight (kg)

Model No.
mm inch Front Gauge Front Side

Tungsten Carbide Button T45 Threaded Shank Drill Bits

Button bit, Regular skirt

 76 3" 4×11 8×12 2 2 35° Spherical 2.6 T45-76S12ZC
76 3" 4×11 8×12 2 2 35° Ballistic 2.6 T45-76R12ZC
89 3 1/2" 6×12 8×12 2 2 35° Spherical 4.5 T45-89S14ZC
89 3 1/2" 6×12 8×12 2 2 35° Ballistic 4.5 T45-89R14ZC
102 4" 6×14 8×16 3 – 35° Spherical 5.0 T45-102S14ZC
102 4" 6×14 8×16 3 – 35° Ballistic 5.0 T45-102R14ZC

Tungsten Carbide Button T45 Threaded Shank Drill Bits

Button bit, Retrac

 76 3" 4×11 8×12 4 – 35° Spherical 3.1 T45-76S12YF
76 3" 4×11 8×12 4 – 35° Ballistic 3.0 T45-76R12YF
89 3 1/2" 6×12 8×12 2 2 35° Spherical 5.3 T45-89S14YF
89 3 1/2" 6×12 8×12 2 2 35° Ballistic 5.3 T45-89R14YF
102 4" 6×14 8×16 3 – 35° Spherical 8.4 T45-102S14YF
102 4" 6×14 8×16 3 – 35° Ballistic 8.4 T45-102R14YF

Tungsten Carbide Button T45 Threaded Shank Drill Bits

Guide Reaming Bit

 127 5" 4×14 8×14 　 　 35° Spherical 6.9 T45-127S12DX
152 6" 8×14 8×14 　 　 35° Spherical 9.3 T45-152S16DX
