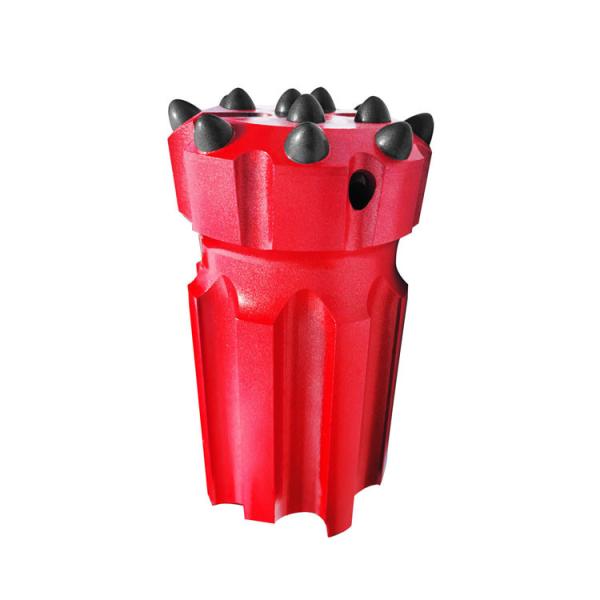

Tungsten Carbide Button Shank Drill Bit
Tungsten Carbide Button Shank Drill Bit
Tungsten Carbide Button Shank Drill Bit
Tungsten Carbide Button Shank Drill Bit
Tungsten Carbide Button Shank Drill Bit
Tungsten Carbide Button Shank Drill Bit
Tungsten Carbide Button Shank Drill Bit
Tungsten Carbide Button Shank Drill Bit
Specifications
Brand Name :
Litian Heavy Industry
Model Number :
Top Hammer Drill Bit
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, D/P, L/C, Western Union, MoneyGram
Supply Ability :
According to order quantity
Delivery Time :
3-30 days
Packaging Details :
Plywooden cases
Thread :
T38
Button Material :
Tungsten Carbide
Body Materal :
Structural Alloy Steel
Application :
Tunnelling , Mining , Quarrying, Construction
Skirt Design :
Normal type, Retrac type, Straightrac type
Face Design :
Flat, Drop center, Uni-face, Cross type, Reaming button type
Bit Shape :
Spherical, Ballistic, Mixed buttons
Diameter :
28mm~152mm
Color :
Red, etc
Custom Design :
Thread, Diameter, Length, Color can be customized
Description

T38 Thread Shank Bit Mining Machinery Fittings

According to the construction conditions, rock type or mineral conditions, and drilling equipments, we can select the most suitable drilling tools, equipment working parameters and drilling construction scheme, so as to help the user to improve the drilling efficiency, reduce the drilling cost and achieve better comprehensive benefits and higher labor productivity.

T38 threaded drill button bit is used in conjunction with the T38 threaded drill rod, coupling sleeve, shank adapter, and all are installed on the rock drill for rock breaking operations.

Tungsten Carbide Button Shank Drill Bit

Product Parameters

T38 Series Diameter Buttons × button diameter(mm) Flushing hole Gauge buttons angel° Button Shape Weight (kg)

Model No.
mm inch Front Gauge Front Side

Tungsten Carbide Button Shank Drill Bit

Button bit, Regular skirt

 64 2 1/2" 4×10 8×10 2 2 35° Spherical 1.8 T38-64S12ZC
64 2 1/2" 4×10 8×10 2 2 35° Ballistic 1.8 T38-64R12ZC
76 3" 4×11 8×12 2 2 35° Spherical 2.6 T38-76S12ZC
76 3" 4×11 8×12 2 2 35° Ballistic 2.6 T38-76R12ZC
89 3 1/2" 6×12 8×12 2 2 35° Spherical 3.3 T38-89S14ZC
89 3 1/2" 6×12 8×12 2 2 35° Ballistic 3.3 T38-89R14ZC

Tungsten Carbide Button Shank Drill Bit

Button bit, Retrac

 64 2 1/2" 4×10 8×10 2 2 35° Spherical 2.0 T38-64S12YF
64 2 1/2" 4×10 8×10 2 2 35° Ballistic 2.0 T38-64R12YF
76 3" 4×11 8×12 2 – 35° Spherical 3.2 T38-76S12YF
76 3" 4×11 8×12 2 – 35° Ballistic 3.2 T38-76R12YF
89 3 1/2" 6×12 8×12 2 – 35° Spherical 5.8 T38-89S14YF
89 3 1/2" 6×12 8×12 2 – 35° Ballistic 5.8 T38-89R14YF

Tungsten Carbide Button Shank Drill Bit

Guide Reaming Bit

 127 5" 4×14 8×14 4　 -　 35° Spherical 5.6 T38-127S12DX
