V0 Grade Thermoplastic Shell EV car charging cable With Copper Alloy Terminal
V0 Grade Thermoplastic Shell EV car charging cable With Copper Alloy Terminal
Specifications
rated temperature :
-60± 200C
Core :
Multiple
conductor material :
copper;Tinned Copper
Exterior material :
customize：（PVC）、（PE）、（LSFOH）、（silicone rubber）
insulating materials :
（PVC）；（PE）;（XLPE）；（EPR）;（SIR）customize
Lead Time :
7-15days
package :
By roll
Conductor Type :
Stranded
specifications :
0.1-450mm²
rated voltage :
300-600V
colour :
customize
Certification :
3C，UL，TPU，TPV, UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949
Brand Name :
LINKE CABLE
Place of Origin :
DONG GUN China
MOQ :
1000m
Price :
Negotiable
Payment Terms :
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability :
100000000
Delivery Time :
7-15 days
Packaging Details :
Safe packaging
Model NO. :
SAC-VC-E16/SAC-VC-E32
Conductor Material :
Copper
Sheath Material :
TPE (thermoplastic elastomer)
Insulation Material :
Silicone
Material Shape :
Round Wire
Brand :
Linke
Name :
New energy charging gun
Jacket :
TPE
Transport Package :
Roll
Specification :
50*50*40
Trademark :
LINKE
Origin :
China
HS Code :
94054090
Package Size :
50.00cm * 50.00cm * 45.00cm
Package Gross Weight :
30.000kg
Type :
Insulated
Application :
Heating, Underground
Samples :
US$ 1000/PCS 1 PCS(Min.Order)
Customization :
Available
Shipping Cost :
about shipping cost and estimated delivery time.
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description

Overview

Our AC charging cable conforms to IEC 62196-1:2022 and IEC 62196-2:2022 standards, with good

ergonomic design and beautiful appearance. The product has excellent protection grade, the

protection grade of the Vehicle connector reaches IP67, and the protection grade coupled with

the vehicle socket is IP54. Copper alloy terminal, silver plating on the surface, V0 grade

thermoplastic shell material, wire length and rated current can be customized according to

customer requirements.

Parameters

. Rated voltage: 220V AC( single-phase)/380V AC(three-phase)

. Rated current : 16A, 32A

. Ambient temperature: -35℃— 55℃

. Ambient Humidity : 5%—95%

. IP degrees:IP67(Vehicle connector)；IP54(combination of the socket-outlet or connector)

. Cable outer sheath material :TPE

. Cable structure :

n single-phase 16A: 3 ×2.5mm²+1×0.75mm² OD =11mm

n single-phase 32A:: 3 ×6mm²+1×0.75mm² OD =13.5mm

n three-phase 16A: 5 ×2.5mm²+1 ×0.75mm² OD =13.5mm

n three-phase 32A:: 5 ×6mm²+1 ×0.75mm² OD =16.5mm

. Insertion/withdrawal force: 10N-100N

. Vehicle drive over: 10000N

. Connector material: PC, PA

. Flame Rating: UL94 V-0

. Connection terminal: Brass, silver plated

. Insulation resistance: ≥100MΩ

. Dielectric strength :2000VAC 1min

. Insertion/withdrawal cycles :＞10000 次

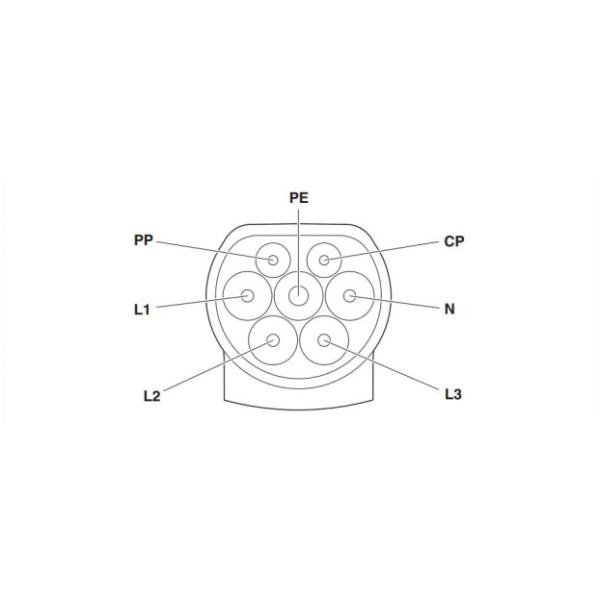

Connection diagram

V0 Grade Thermoplastic Shell EV car charging cable With Copper Alloy Terminal

Electrical parameter value and function definition of contact

Contact number/identification

Rated voltage and current

Function definition
1-(L1) 250 V 10 A/16 A/32 A AC power supply (single phase)
440 V 16 A/32 A/63 A AC power supply (three phase)
2-(L2) 440 V 16 A/32 A/63 A

AC power supply (three phase)

3-(L3) 440 V 16 A/32 A/63 A AC power supply (three phase)
4-(N) 250 V 10 A/16 A/32 A Neutral (single phase)
440 V 16 A/32 A/63 A Neutral (single phase)
5-(PE) PE
6-(PP) 0V~30V2A

proximity contact

7-(CP) 0V~30V2 A control pilot
