UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging
UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging
UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging
UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging
UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging
UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging
UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging
UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging
UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging
UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging
UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging
UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging
Specifications
colour :
customize
Copper :
Tinned Copper
Cable Length :
5meter or Custom
Jacket 1 :
TPU
Rated Current :
32A
Conductor Type :
Twisted wire
Trademark :
LINKE
Origin :
China
Package Size :
850.00cm * 850.00cm * 580.00cm
Model NO. :
charger cable
rated voltage :
300-600V
type :
insulated
Place of Origin :
Guangdong, China
Brand Name :
Linke
Certification :
UL;ISO9001;ISO13485;IATF16949;TPU
MOQ :
1000m
Price :
Negotiable
Packaging Details :
According to requirement
Delivery Time :
7-15 days
Payment Terms :
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability :
100000000
Core :
Multiple
HS Code :
94054090
IP Grade :
IP65
package :
By roll
Phase :
Three Phase
Customization :
Available
Shipping Cost :
about shipping cost and estimated delivery time.
Jacket 2 :
XLPE
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Specification :
800 roll
Lead Time :
7-15days
Samples :
US$ 400/Piece 1 Piece(Min.Order) |
Package Gross Weight :
210.000kg
Exterior material :
customize：PVC、PE、LSFOH、silicone rubber
insulating materials :
customize:PVC、PE 、XLPE、EPR、SIR
Transport Package :
Roll
specifications :
0.1-450mm²
rated temperature :
-60± 200℃
Name :
Charging Cable
Currency :
US$
Color :
Black
  :
Initial Payment Full Payment
conductor material :
copper/Tinned Copper
Description
UL 600V 16AMP 3*14AWG+1*18AWG AC EV Wire EV Charging Cable
UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging
Product Description

This DC 350 Ampere fast Electric Vehicle charging cable is designed for high-performance charging applications with superior safety and durability features.

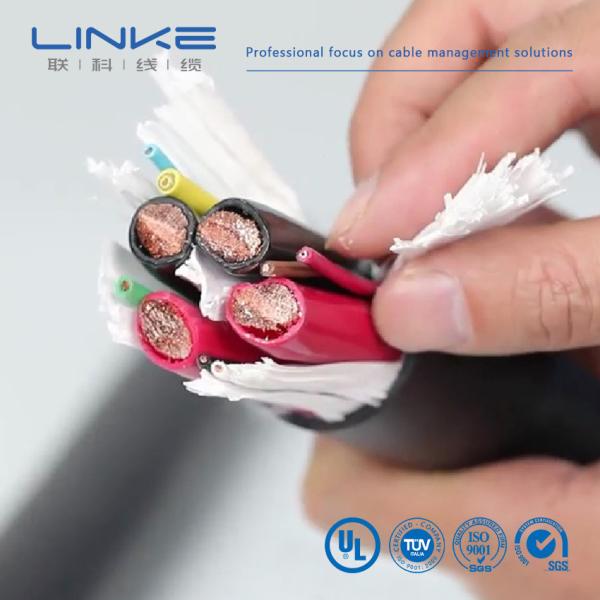

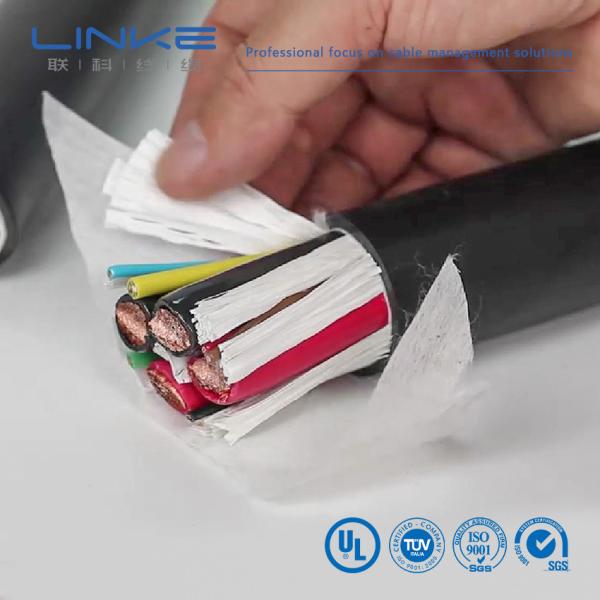

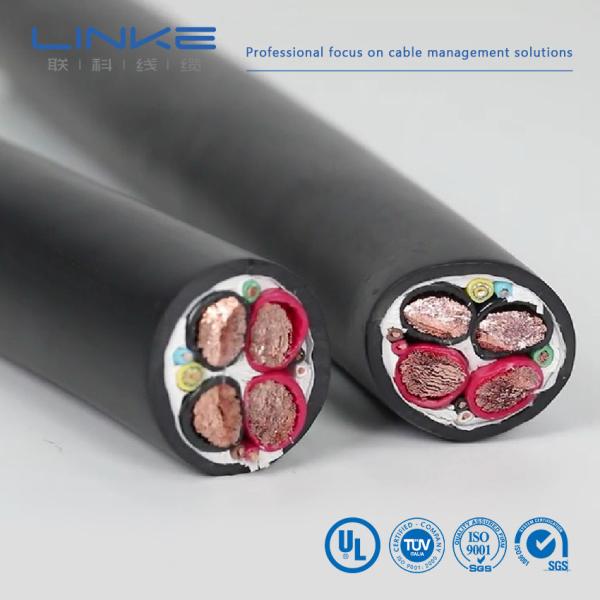

Cable Construction
  • 4 power cables for maximum current delivery
  • 1 green ground cable for safety
  • 1 yellow coaxial wire for signal integrity
  • 1 blue control cable for system management
  • 2 pairs of signal wires for communication
Key Features
  • Excellent insulation performance meeting strict safety standards
  • Flame retardant, oil resistant, and aging resistant construction
  • Flexible design for easy installation and handling
  • UL certified for the American market
  • High output current capacity for fast charging
Technical Specifications
Electrical Characteristics Physical Properties Testing Standards
Rated voltage: DC 1000V Tensile strength: ≥20MPa High temperature pressure test: ≤50%
Rated temperature:
Jacket -40~90ºC
Insulation -40~125ºC		 Elongation: ≥300% Heat shock test: No crack
Max. conductor resistance (20ºC):
A:0.242Ω/km B:0.78Ω/km
C:4.95Ω/km D&E:26Ω/km		 Aged condition: 110±1ºC×168h Compatibility test: GB/T 33594
Insulation Voltage withstand (Core A &B,10m): AC 2.5kV Percent of original tensile strength: ≤±30%
Percent of original elongation: ≤±30%		 Flame test: GB/T 18380.12-2008


Crush resistance test: GB/T 33594
Curved around test: GB/T 33594
Minimum Bend Radius: 6×OD
Outer Diameter: 35mm
Sheath Material: TPE
Brand LINKE Cross Section (mm²) 0.01-500mm²
Wire Gauge (AWG) [e.g., 24AWG, 28AWG] Conductor Tinned Copper /bare copper, based on client's requirements
Insulation material PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other Jacket Material [PVC/PU/Rubber/Braid/etc.]
Certifications RoHS/REACH/UL/CE/IP68/etc Custom Length [e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type [Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] Shielding [Shielded/Unshielded/Braid Shield]
Impedance [e.g., 75Ω (for coaxial cables)] Printing/Logo [Text/Label/Logo, max. 20 characters]
Bend Radius [e.g., ≥5× cable diameter] Current Rating [e.g., 5A]
Voltage Rating [e.g., 30V AC/DC] Connector Material [Gold-plated/Nickel-plated/Brass/etc.]
Connectors [e.g., USB Type-C, 3.5mm Jack, RJ45] Jacket XLPE or PE or PVC RUBBER
Delivery Time 7-14 days after confirming the order Colors [Black/White/Red/Custom Pantone/etc.]
temperature Minus-70℃to 350℃(-70℃ ~ 350℃) Package Roll/box/plate/Custom
Supporting Services multicolumn {3}{l}{custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

Independent Laboratory • Complete Testing Equipment • Full Quality Control

We test every product by strict standards to ensure superior quality and reliable performance.

No.

Test Item

Test Condition

Test Requirement

Test Data

Result

1

Structure Inspection

1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness

Comply with wire size table

Refer to test record

Pass

2

Thermal Shock

Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample

No cracks on the sample surface

No cracks

Pass

3

Heat Deformation

1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position

1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50%

Refer to test record

Pass

4

FT2

Apply a standard flame at a height of 125mm once

1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials

Refer to test record

Pass

5

Aging

1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength

1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging

Refer to test record

Pass

6

Cold Bend

Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box

No cracks on the sample surface

No cracks

Pass

7

Conductor Resistance

Measure resistance of one-meter core conductor with DC resistance meter

At 20℃, resistance of 8AWG ≤ 2.23Ω/km

Refer to test record

Pass

Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and

provide professional solutions to the Cable&Wire,especially for the

different industry customers.It contains :

Humanoid robot cable,

AI power cable/data cable,

Semiconductor cable/industrial automatic cable,

Sensor cable,

New energy cable,

Medical beauty wire,

UL wire cable,

Linke Cable has diversified product development capabilities and technical capabilities to support diversified

customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We

have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485

(Medical apparatus and instruments),IATF 16949(Auto industry)
