ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w
ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w
ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w
ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w
ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w
ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w
ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w
ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w
ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w
ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w
Specifications
Brand Name :
CHE
Model Number :
ZPWE90
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Price :
USD, RMB, EUR
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Product Series :
ZPWE60, ZPWE90, ZPWE120
Size :
60mm, 90mm, 120mm
Rated Torque :
60Nm~110Nm
Output Shaft Method :
Single key shaft, Optical shaft, Hollow single key shaft
Precision Class :
P1 ( High precision), P0 (Very High Precision)
Gear type :
Spur Gear
Motor Power :
500w~750w
Full-load Efficiency :
L1≥95%； L2≥90%
Working Temperature :
-10℃~+90℃
Service Life :
20000 hours
Level of Protection :
IP65
Installation direction :
Any direction
Description

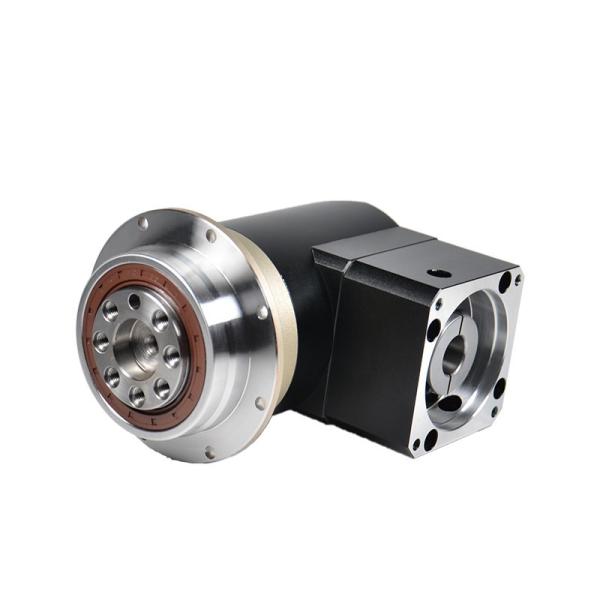

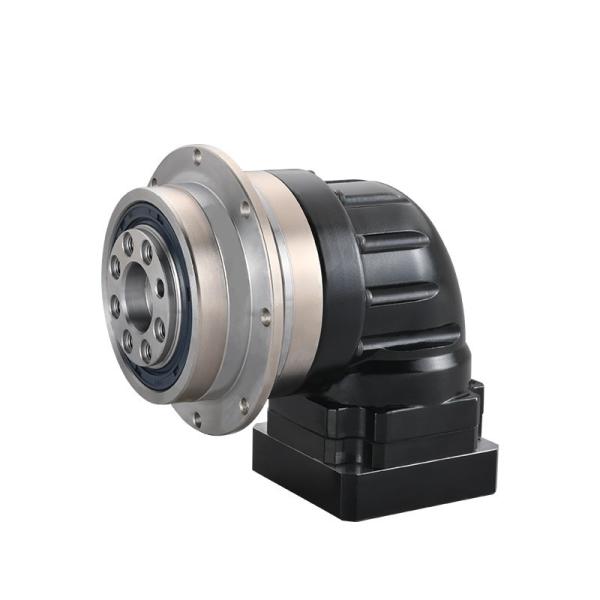

ZPWE90 90mm Right Angle Flange End Planetary Speed Gear Reducer


Right Angle Planetary Gear Speed Reducer Features:

● High precision: Secondary precision planetary gear and imported gear scraper precision scraping ring ensure 5-level precision, greatly improving product performance
● Low vibration: The output angular contact bearing is matched with the cage-type planetary carrier to greatly improve the stability of the product, and the end face runout is better
● High rigidity: double support structure increases radial force, full needle roller bearing increases contact area and is more wear-resistant, successfully increasing torque by 40%
● High performance: The design scheme carefully considers and understands the customer's working conditions. The product has excellent working conditions adaptability

Reduction Ratio

Single Stage: 3 / 4 / 5 / 7 / 10

Double Stage: 12 /15 /16/ 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70...../100
Low Backlash

L1 (Single Stage) Planetary Gearbox: ≤ 3arcmin(P1) / ≤5arcmin(P2)

L2 (Two Stage Planetary) Gearbox: ≤5arcmin(P1) / ≤7arcmin(P2)
Input Speed n1N

ZPWE60: Maximum input speed: 8000rpm Rated input speed: 4000rpm

ZPWE90: Maximum input speed: 6000rpm Rated input speed: 3000rpm

ZPWE120: Maximum input speed: 6000rpm Rated input speed: 6000rpm
Full-load Efficiency

L1 (Single Stage) : ≧ 95%

L2 (Double Stage): ≧ 90%
Gearbox Feature

●Low noise ●Low Volume ●Save Space ●Compact Structure

●High Efficiency ●High Rigidity ●High Load ●High Power
Torsional Rigidity(Nm/armin) ZPWE60: 13Nm/armin ZPWE90: 31Nm/armin ZPWE120: 82Nm/armin
Noise Value(dB)


ZPWE60: ≤58dB ZPWE90: ≤60dB ZPWE120: ≤65dB


ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w

ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w

ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w
ZPWE90 90mm Planetary Gear Speed Reducer 110Nm Rated Torque 750w
Speed Reducer Selection Instructions:
Model~if you know the specific model, that would be wonderful.
Torque:
Gear Ratio:
Reducer size or motor power:
Output method:
Connection Method:
Helical or Spur Gear:
Quantity:
What machine you use for:
Pls provide as much as you can so that we can help you more quickly!
Thanks a lot!
