Specifications
Brand Name :
CHE
Model Number :
PWE60
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Price :
USD, RMB, EUR
Product Series :
PWE60, PWE90, PWE120
Size :
60mm, 90mm, 120mm
Rated Torque :
18Nm~40Nm
Output Shaft Method :
Single key shaft, Optical shaft, Hollow single key shaft
Precision Class :
P1 ( High precision), P0 (Very High precision)
Gear type :
Helical Gear
Rated Power :
200w~400w
Installation Direction :
L1≥95%； L2≥90%
Working Temperature :
-10℃~+90℃
Service Life :
20000 hours
Description

Low Backlash PWE60 60mm Spur Gear Flange Mounting Planetary Reducer Gearbox

Planetary Gear Speed Reducer Features:

1. Planetary gearbox matched with high end servo motor and stepper motor.

2. Widely used in automation equipment, various types of trucks, construction machinery, food automation production machinery; PV industry; Natural gas & oil;

3. Helical gear usually used in high end machine , spur gear sually used in normaly machine, according to your requirement to select.

4. The high-quality transmission consists of surface-hardened and finely ground gears, the one-piece box ensures concentricity, and precise matching ensures low backlash.

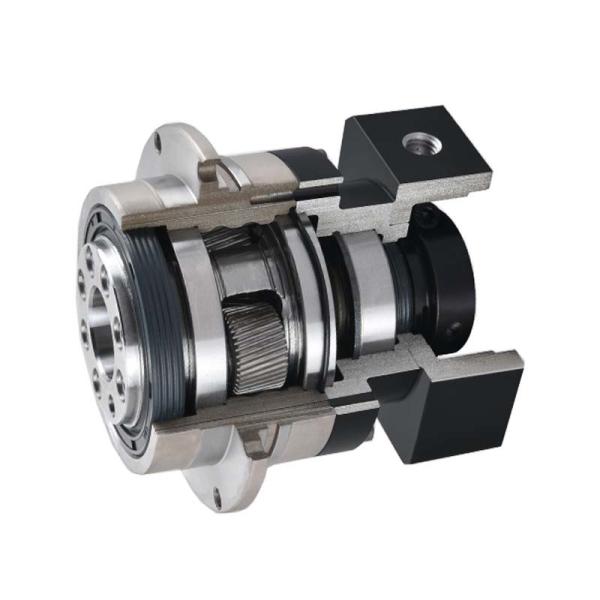

5. Double support design, more stable operation, angular contact bearings are symmetrically distributed at both ends of the one-piece planet carrier, with better tilting rigidity and strength, and smoother operation.

●High precision: Secondary precision planetary gear and imported gear scraper precision scraping ring ensure 5-level precision, greatly improving product performance


●Low vibration: The output angular contact bearing is matched with the cage-type planetary carrier to greatly improve the stability of the product, and the end face runout is better


●High rigidity: double support structure increases radial force, full needle roller bearing increases contact area and is more wear-resistant, successfully increasing torque by 40%


●High performance: The design scheme carefully considers and understands the customer's working conditions. The product has excellent working conditions adaptability

Reduction Ratio

Single Stage: 3 / 4 / 5 / 7 / 10

Double Stage: 12 /15 /16/ 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100
Low Backlash

L1 (Single Stage) Planetary Gearbox: ≤ 8arcmin / ≤16arcmin(P1/P2)

L2 (Two Stage Planetary) Gearbox: ≤12arcmin / ≤20arcmin(P1/P2)
Input Speed n1N

Maximum input speed: 8000rpm

Rated input speed: 4000rpm
Full-load Efficiency

L1 (Single Stage) : ≧ 95%

L2 (Double Stage): ≧ 90%
Gearbox Feature

●Low noise ●Low Volume ●Save Space ●Compact Structure

●High Efficiency ●High Rigidity ●High Load ●High Power
