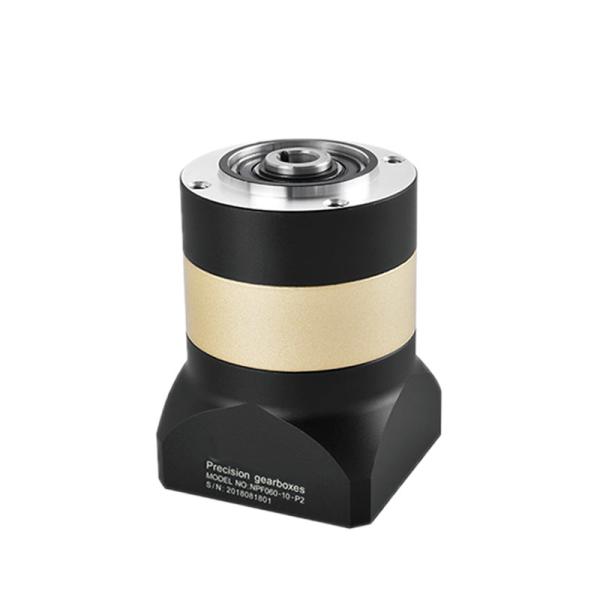

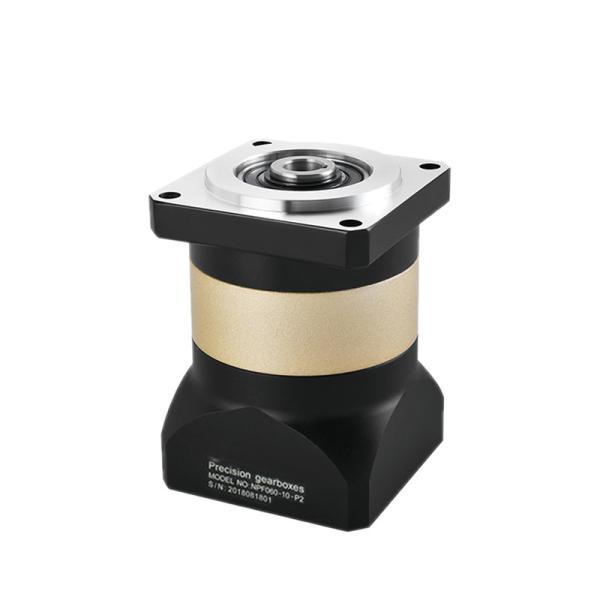

PFK60 Hollow Shaft Planetary Gear Reducer Square Type 60mm For Pv Industry
PFK60 Hollow Shaft Planetary Gear Reducer Square Type 60mm For Pv Industry
PFK60 Hollow Shaft Planetary Gear Reducer Square Type 60mm For Pv Industry
PFK60 Hollow Shaft Planetary Gear Reducer Square Type 60mm For Pv Industry
PFK60 Hollow Shaft Planetary Gear Reducer Square Type 60mm For Pv Industry
PFK60 Hollow Shaft Planetary Gear Reducer Square Type 60mm For Pv Industry
PFK60 Hollow Shaft Planetary Gear Reducer Square Type 60mm For Pv Industry
PFK60 Hollow Shaft Planetary Gear Reducer Square Type 60mm For Pv Industry
Specifications
Brand Name :
CHE
Model Number :
PFK60
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Price :
USD, RMB, EUR
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Product Series :
PFK60, PFK80, PFK90, PFK120
Size :
60mm, 80mm, 90mm, 120mm
Rated Torque :
16Nm~37Nm
Output Shaft Method :
Single key shaft, Optical shaft, Hollow single key shaft
Precision Class :
P1 ( High precision), P0 (Very High precision)
Gear type :
Spur Gear
Rated Power :
200w~400w
Installation Direction :
L1≥96%； L2≥92%
Working Temperature :
-20℃~+80℃
Service Life :
20000 hours
Description

PFK60 60mm Square Type Spur Gear Hollow Shaft Planetary Gear Speed Reducer For Pv Industry

Planetary Gear Speed Reducer Features:

1. Planetary gearbox matched with high end servo motor and stepper motor.

2. Widely used in automation equipment, various types of trucks, construction machinery, food automation production machinery; PV industry; Natural gas & oil;

3. Helical gear usually used in high end machine , spur gear sually used in normaly machine, according to your requirement to select.

4. The high-quality transmission consists of surface-hardened and finely ground gears, the one-piece box ensures concentricity, and precise matching ensures low backlash.


5. Double support design, more stable operation, angular contact bearings are symmetrically distributed at both ends of the one-piece planet carrier, with better tilting rigidity and strength, and smoother operation.

● High precision: Secondary precision planetary gear and imported gear scraper precision scraping ring ensure 5-level precision, greatly improving product performance


● Low vibration: The output angular contact bearing is matched with the cage-type planetary carrier to greatly improve the stability of the product, and the end face runout is better


● High rigidity: double support structure increases radial force, full needle roller bearing increases contact area and is more wear-resistant, successfully increasing torque by 40%


● High performance: The design scheme carefully considers and understands the customer's working conditions. The product has excellent working conditions adaptability

Reduction Ratio

Single Stage: 3 / 4 / 5 / 7 / 10

Double Stage: 12 /15 /16/ 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100
Low Backlash

L1 (Single Stage) Planetary Gearbox: ≤ 8arcmin / ≤16arcmin(P1/P2)

L2 (Two Stage Planetary) Gearbox: ≤12arcmin / ≤20arcmin(P1/P2)
Input Speed n1N

Maximum input speed: 8000rpm

Rated input speed: 4000rpm
Full-load Efficiency

L1 (Single Stage) : ≧ 96%

L2 (Double Stage): ≧ 92%
Gearbox Feature

●Low noise ●Low Volume ●Save Space ●Compact Structure

●High Efficiency ●High Rigidity ●High Load ●High Power
