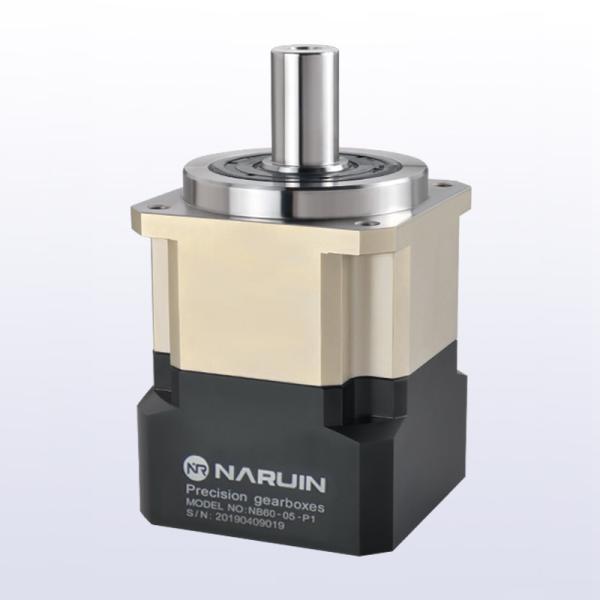

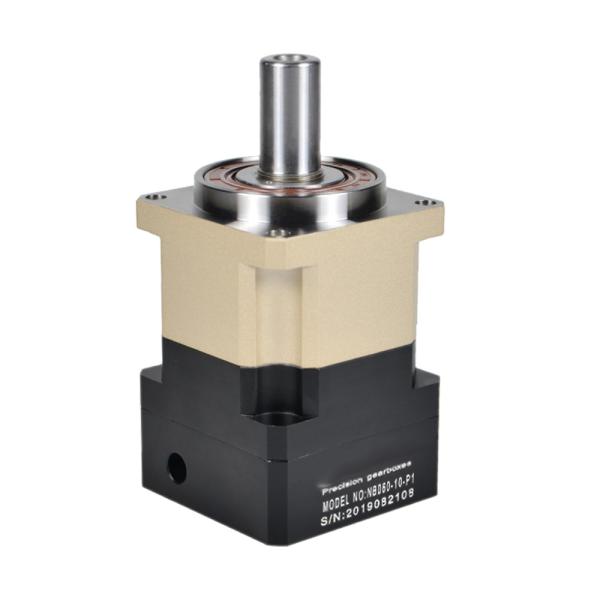

Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque
Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque
Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque
Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque
Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque
Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque
Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque
Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque
Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque
Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque
Specifications
Brand Name :
CHE
Model Number :
PNF90
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Product Series :
PNF60,PNF90, PNF120
Size :
60mm, 90mm, 120mm
Rated Torque :
98Nm~150Nm
Output Shaft Method :
Single key shaft, Optical shaft, Hollow single key shaft
Precision Class :
P1 (High precision) P0( Very High Precision0
Gear type :
Helical Gear
Rated Power :
200w~1500w
Installation Direction :
L1≥96%； L2≥92%
Description

12:1 15:1 16:1 20:1 25:1 28:1 35:1 40:1 50:1 Ratio Shaft Mounted Helical Gear Planetary Transmission Speed Redcuer

Planetary Gear Speed Reducer Features:

1. Planetary gearbox matched with high end servo motor and stepper motor.

2. Widely used in automation industry, various types of trucks, construction machinery, food automation production machinery; solar energy generation & solar energy generation; Natural gas & oil；

3. High precison machine usually needs helical gear; We will select the right speed recuder as per your requirements.

* High Torque
* High Precise
* High Load
* High Density
* Large transimisson force

* Compact Structure
* Save Pace
* Low Noise
* Military Industry Technology
* High End

Reduction Ratio

Single Stage: 3 / 4 / 5 / 7 / 10

Double Stage: 12 /15 /16/ 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 /80 / 100
Low Backlash

L1 (Single Stage) Planetary Gearbox: ≤ 3arcmin(P1) / ≤5arcmin(P2)

L2 (Two Stage Planetary) Gearbox: ≤5arcmin(P1) / ≤7arcmin(P1/P2)
Input Speed n1N

Maximum input speed: 6000rpm

Rated input speed: 3000rpm
Full-load Efficiency

L1 (Single Stage) : ≧ 97%

L2 (Double Stage): ≧ 94%

Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque

Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque

Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque

Shaft Mounted Planetary Gear Reducer 1500w Power With 150Nm Rated Torque
