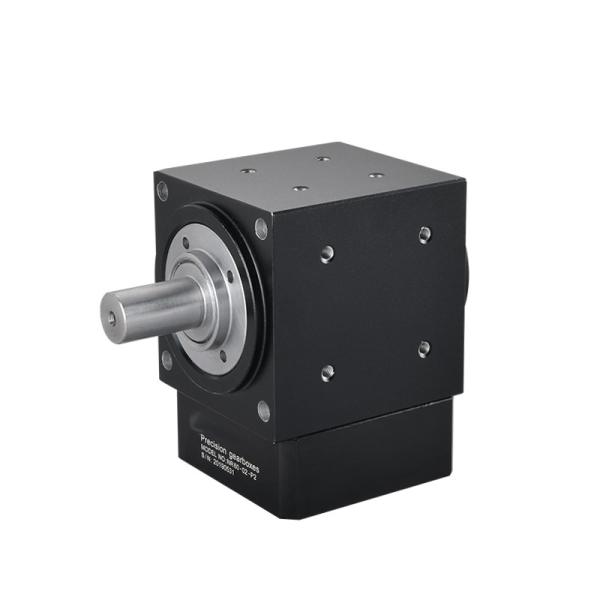

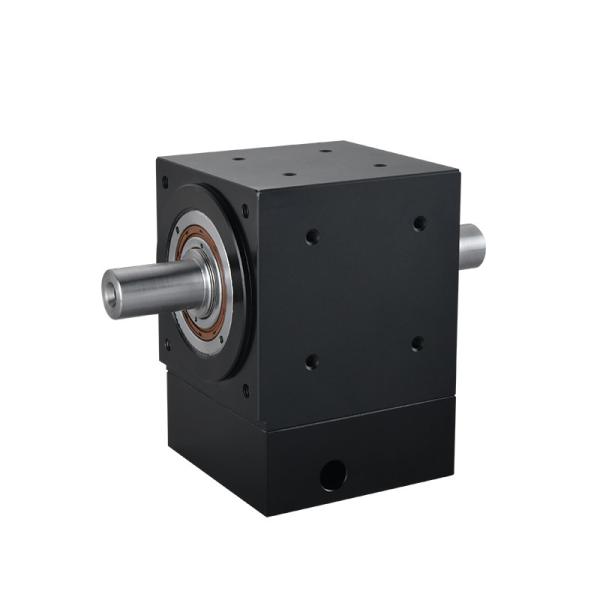

ZZ60 Planetary Gear Reducer , Spiral Bevel Gear Box 60mm 90mm 130mm
ZZ60 Planetary Gear Reducer , Spiral Bevel Gear Box 60mm 90mm 130mm
ZZ60 Planetary Gear Reducer , Spiral Bevel Gear Box 60mm 90mm 130mm
ZZ60 Planetary Gear Reducer , Spiral Bevel Gear Box 60mm 90mm 130mm
ZZ60 Planetary Gear Reducer , Spiral Bevel Gear Box 60mm 90mm 130mm
ZZ60 Planetary Gear Reducer , Spiral Bevel Gear Box 60mm 90mm 130mm
ZZ60 Planetary Gear Reducer , Spiral Bevel Gear Box 60mm 90mm 130mm
ZZ60 Planetary Gear Reducer , Spiral Bevel Gear Box 60mm 90mm 130mm
ZZ60 Planetary Gear Reducer , Spiral Bevel Gear Box 60mm 90mm 130mm
ZZ60 Planetary Gear Reducer , Spiral Bevel Gear Box 60mm 90mm 130mm
Specifications
Brand Name :
CHE
Model Number :
ZZ60 series
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Price :
USD, RMB, EUR
Size :
60mm, 90mm, 130mm
Output Shaft Method :
Single shaft, Double shaft
Installation Direction :
L1≥96%
Working Temperature :
-20~+80℃
Description

ZZ60 Spiral Bevel Gear Box

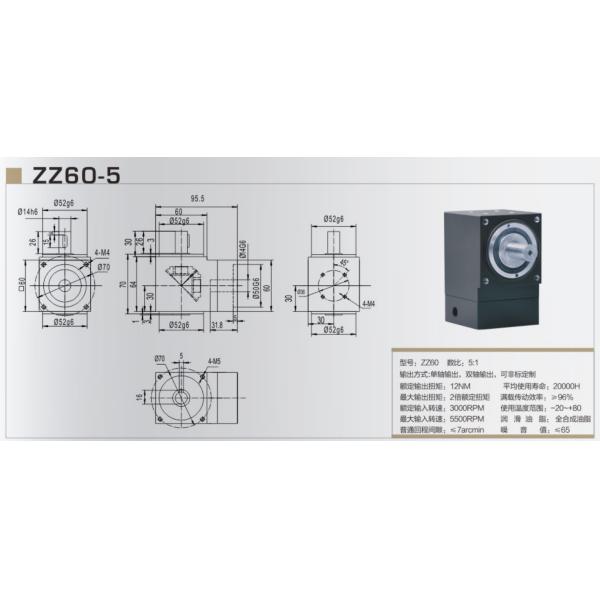

Model ZZ60-1 ZZ60-2 ZZ60-5 ZK60-2 ZPTZ60-2 ZPTZ60-5
Gear Ratio 1:1 2:1 5:1 2:1 2:1+gearbox 5:1+gearbox
Output Method Three shaft Single or Double Or Customed Single or Double Or Customed Hole Output Single or Double Or Customed Single or Double Or Customed
Rated Torque 20Nm 25Nm 12Nm 25Nm
Maxmium Torque 40Nm 50Nm 24Nm 50Nm
Rated Speed 3000rpm 3000rpm 3000rpm 3000rpm 3000rpm 3000rpm
Maxmium Speed 5000rpm 5500rpm 5500rpm 5000rpm 5500rpm 5500rpm
Return Clearance ≤7arCMIN ≤7arCMIN ≤7arCMIN ≤7arCMIN ≤12arCMIN ≤12arCMIN
Service Life 20000h 20000h 20000h 20000h 20000h 20000h
Full Load Efficency ≥96% ≥96% ≥96% ≥96% ≥96% ≥96%
Working Temperature -20~+80℃ -20~+80℃ -20~+80℃ -20~+80℃ -20~+80℃ -20~+80℃
Grease Fully synthetic grease Fully synthetic grease Fully synthetic grease Fully synthetic grease Fully synthetic grease Fully synthetic grease
Noise Value ≤65 ≤65 ≤65 ≤65 ≤65 ≤65

ZZ60 Planetary Gear Reducer , Spiral Bevel Gear Box 60mm 90mm 130mm

ZZ60 Planetary Gear Reducer , Spiral Bevel Gear Box 60mm 90mm 130mm
