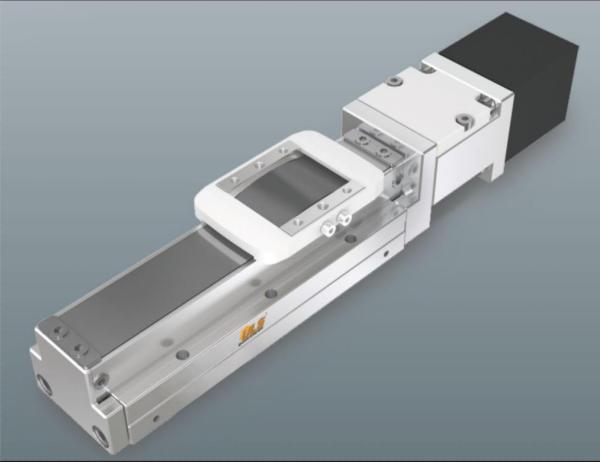

Aluminum Material Built In Linear Module 20-200mm Effective Stroke
Aluminum Material Built In Linear Module 20-200mm Effective Stroke
Specifications
Brand Name :
CHE
Model Number :
UTH3, UTH4, UTH5, UTH8, UTH12, UTH15
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Price :
USD, RMB, EUR
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Effective stroke :
20~200mm
Type :
Aluminum linear stage
Body width :
30mm
Maximum load :
≤ 5kg
Ball screw lead :
1mm, 2mm, 6mm
Description

Built In Linear Module​

Module material: Aluminum

Stroke: 20~200MM for choose (Effective Stroke)

Motor power: 28w stepper motor and 50w servo motor

Ball screw accuracy:C7

Moving speed: 50~300mm/s

Allowable Overhang

Aluminum Material Built In Linear Module 20-200mm Effective Stroke

Horizontal Mounting A B C Wall Mounting A B C Vertical Mounting A C
Ball screw lead 1 2kg 430 32 76 2kg 71 30 411 1kg 140 140
5kg 160 13 32 5kg 30 12 158 3kg 83 83
Ball screw lead 2 2kg 355 24 55 2kg 51 30 343 1kg 125 125
5kg 120 10 22 5kg 20 15 125 2kg 66 66
Ball screw lead 6 1kg 220 40 78 1kg 74 37 231 0.8kg 47 47
3kg 120 22 43 3kg 40 20 123

Aluminum Material Built In Linear Module 20-200mm Effective Stroke

Effective Stroke 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200
L 122.5 132.5 142.5 152.5 162.5 172.5 182.5 192.5 202.5 212.5 222.5 232.5 242.5 252.5 262.5 272.5 282.5 292.5 302.5 312.5
A 30 10 20 30 10 20 30 10 20 30 10 20 30 10 20 30 10 20 30 10
M 0 1 1 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7
N 4 6 6 6 8 8 8 10 10 10 12 12 12 14 14 14 16 16 16 18
P 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220
G 223 234 244 255 265 276 286 297 307 318 328 339 349 360 370 381 391 402 412 423
