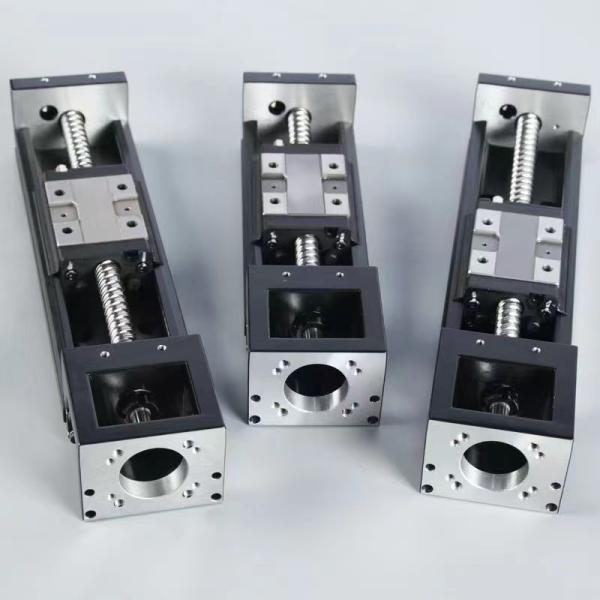

CKK60 Robot Single Axis Linear Stage High positioning accuracy
CKK60 Robot Single Axis Linear Stage High positioning accuracy
CKK60 Robot Single Axis Linear Stage High positioning accuracy
CKK60 Robot Single Axis Linear Stage High positioning accuracy
Specifications
Brand Name :
CHE
Model Number :
kk40, kk50, kk60, kk86, kk100
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Core Components :
Motor+ ball screw+linear guide
Precision :
20~25μm(≤300mm)
Type :
CKK Linear Stage
Length :
150mm, 200mm, 250mm, 300mm
Loads :
up to 250 kg
Description

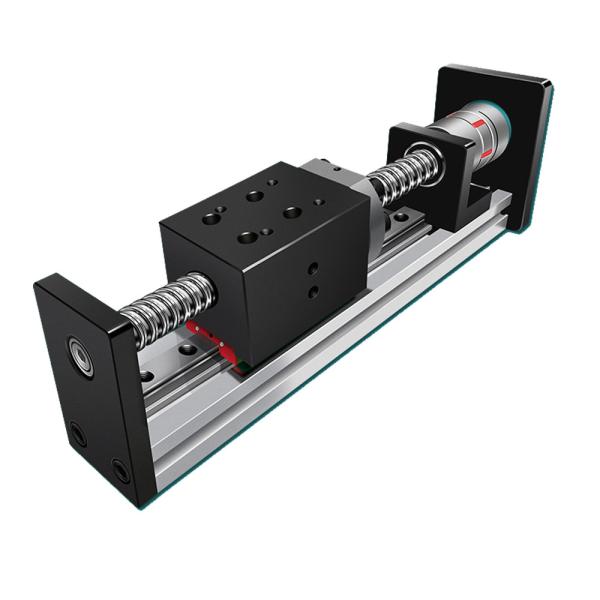

KK86 Linear Module

High positioning accuracy: Since the friction way of the linear module is rolling friction, not only the friction coefficient is reduced to 1/50 of the sliding guide, but the gap between the dynamic friction force and the static friction force is also small. Therefore, when the sliding table is running, there will be no slippage, and the positioning accuracy of μm level can be achieved.

Easy detection and complete equipment: The functions of positioning accuracy, positioning repeatability, running parallelism and starting torque are easy to detect.

Unique design: flexible action, small motion inertia, can bypass obstacles and grab workpieces near the machine base. Small size, requires only installation space, and maintenance is also simple and convenient

Wide Applications: 3D printers, UV printer, digital engraving machines, soldering machine, screw locking machine, lathe cnc machines, packing machine and so on.

CKK60 Robot Single Axis Linear Stage High positioning accuracy

Rail Length

L2(mm)

Total Length

L1(mm)

 Maxium Effective Stroke G(mm) K(mm) n m Weight
A1 Slider A2 Slider A1 A2
150 220 60 - 25 100 2 2 1.5 -
200 270 110 - 50 100 2 2 1.8 -
300 370 210 135 50 200 3 2 2.4 2.7
400 470 310 235 50 100 4 4 3 3.3
500 570 410 335 50 200 5 3 3.6 3.9
600 670 510 435 50 100 6 6 4.2 4.6

Linear Motion Module Details>>>>>>>>>>>>

CKK60 Robot Single Axis Linear Stage High positioning accuracy

CKK60 Robot Single Axis Linear Stage High positioning accuracy

Linear Module Workshop >>>>>>>>>>>>

CKK60 Robot Single Axis Linear Stage High positioning accuracy

CKK60 Robot Single Axis Linear Stage High positioning accuracy
CKK60 Robot Single Axis Linear Stage High positioning accuracy
