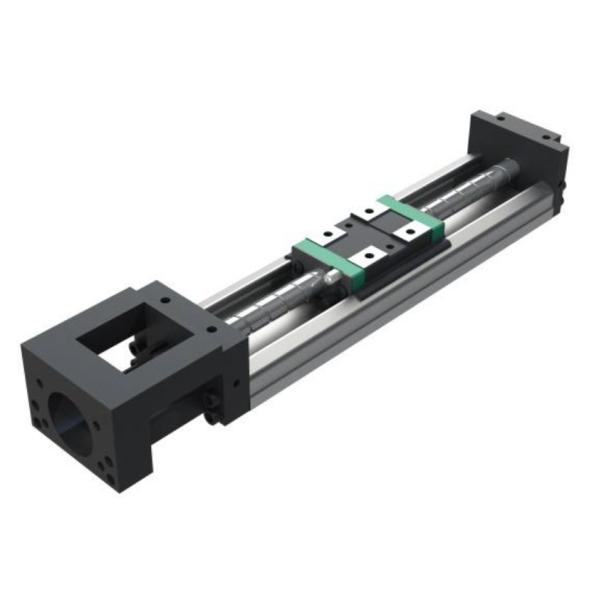

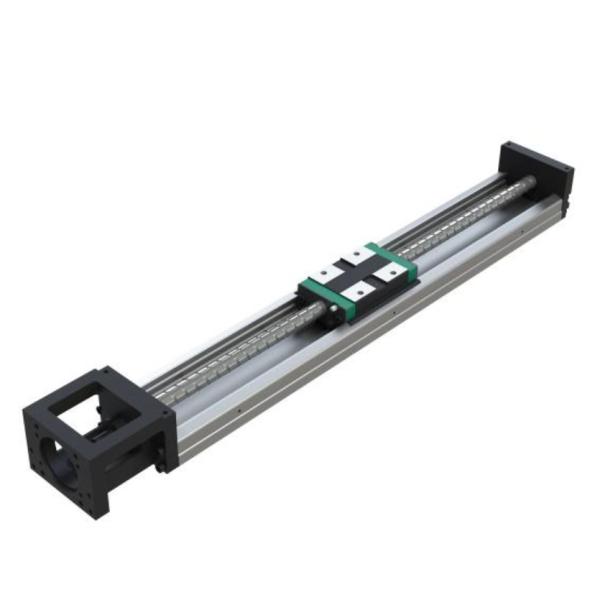

CKK86 Linear Module For Digital Engraving Machines UV printers
CKK86 Linear Module For Digital Engraving Machines UV printers
CKK86 Linear Module For Digital Engraving Machines UV printers
CKK86 Linear Module For Digital Engraving Machines UV printers
CKK86 Linear Module For Digital Engraving Machines UV printers
CKK86 Linear Module For Digital Engraving Machines UV printers
Specifications
Brand Name :
CHE
Model Number :
kk40, kk50, kk60, kk86, kk100
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Core Components :
Motor+ ball screw+linear guide
Precision :
20~25μm(≤300mm)
Type :
CKK Linear Stage
Length :
150mm, 200mm, 250mm, 300mm
Loads :
up to 250 kg
Description

KK86 Linear Module

High positioning accuracy: Since the friction way of the linear module is rolling friction, not only the friction coefficient is reduced to 1/50 of the sliding guide, but the gap between the dynamic friction force and the static friction force is also small. Therefore, when the sliding table is running, there will be no slippage, and the positioning accuracy of μm level can be achieved.

Easy detection and complete equipment: The functions of positioning accuracy, positioning repeatability, running parallelism and starting torque are easy to detect.

Convenient assembly and easy maintenance: Assemblers can complete the assembly without professional skills. Good dustproof and lubricated, easy to maintain, provide recycling after the machine is scrapped.

Wide Applications: 3D printers, UV printer, digital engraving machines, soldering machine, screw locking machine, lathe cnc machines, packing machine and so on.

CKK86 Linear Module For Digital Engraving Machines UV printers

Rail Length

L2(mm)

Total Length

L1(mm)

 Maxium Effective Stroke H(mm) n m Weight
A1 Slider A2 Slider A1 A2
340 440 210 100 70 3 2 5.7 6.5
440 540 310 200 20 4 3 6.9 7.7
540 640 410 300 70 5 3 8.0 8.8
640 740 510 400 20 6 4 9.2 10.0
740 840 610 500 70 7 4 10.4 11.2
940 1040 810 700 70 9 5 11.6 12.4

Linear Motion Module Details>>>>>>>>>>>>

CKK86 Linear Module For Digital Engraving Machines UV printers

CKK86 Linear Module For Digital Engraving Machines UV printers

Linear Module Workshop >>>>>>>>>>>>

CKK86 Linear Module For Digital Engraving Machines UV printers

CKK86 Linear Module For Digital Engraving Machines UV printers
CKK86 Linear Module For Digital Engraving Machines UV printers
