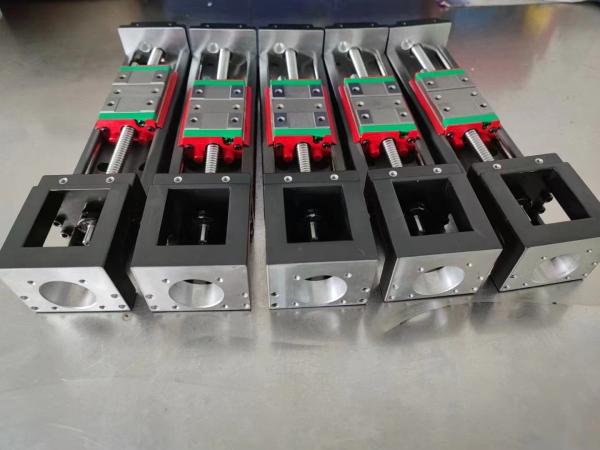

Single Axis Linear Robotic Arm Linear Guide Motion Linear Motion System CKK100

High positioning accuracy: since the friction way of the linear module is rolling friction, not only the friction coefficient is reduced to 1/50 of the sliding guide, but the gap between the dynamic friction force and the static friction force is also small. Therefore, when the sliding table is running, there will be no slippage, and the positioning accuracy of μm level can be achieved.

High interchangeability: the linear slide rail is interchangeable, and the slider and slide rail can be replaced respectively. Even linear slides, the machine can regain high-precision guidance

Multi-functional design: integrating the ball screw for driving and the U-shaped track for guiding, in addition to providing precise linear motion, it can also be matched with multi-functional accessories. It is very convenient to import multi-purpose application design, and can also meet the needs of high-precision linear transmission.

Ball screw linear stage and guide: High precision ball screw, better repeatability; Precision supporting linear bearing guide, high load capacity

Available Material: Stainless steel dust proof cover, designed for hot dust and laser

Covered or uncover linear module are both available

Single Axis Robotic Arm Linear Guide Motion , Linear Motion System CKK100

CKK100 Linear Stage Dimensions

Single Axis Robotic Arm Linear Guide Motion , Linear Motion System CKK100

Rail Length

L2(mm)

Total Length

L1(mm)

 Maxium Effective Stroke G(mm) H(mm) n m Weight
A1 Slider A2 Slider A1 A2
980 1089 828 700 40 90 7 5 18.6 20.3
1080 1189 928 800 15 40 8 6 20.3 22.0
1180 1289 1028 900 65 90 8 6 22.0 23.7
1280 1389 1128 1000 40 40 9 7 23.6 25.3
1380 1489 1228 1100 15 90 10 7 25.3 27.0
