50-850mm Effective stroke Aluminum Linear Module Fully Enclosed
50-850mm Effective stroke Aluminum Linear Module Fully Enclosed
50-850mm Effective stroke Aluminum Linear Module Fully Enclosed
50-850mm Effective stroke Aluminum Linear Module Fully Enclosed
Specifications
Brand Name :
CHE
Model Number :
LTH4, LTH5, LTH8, LTH12
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Price :
USD, RMB, EUR
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Core Components :
Motor+ ball screw+linear guide
Effective stroke :
50~850mm
Type :
Aluminum linear stage
Body width :
44mm
Maximum load :
≤ 25kg
Description

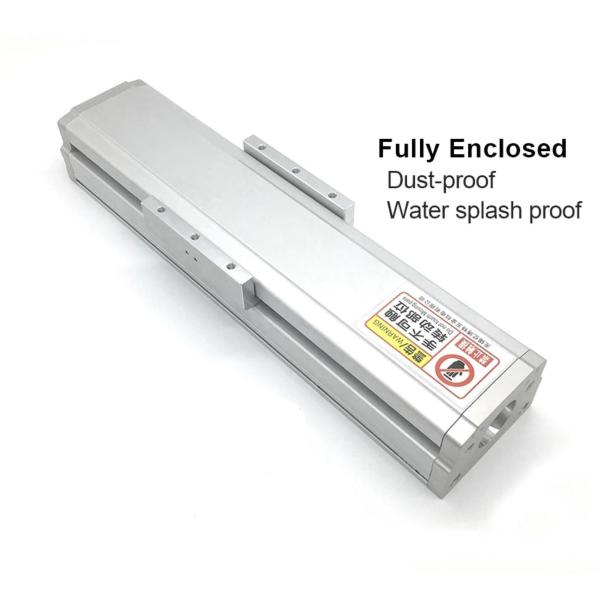

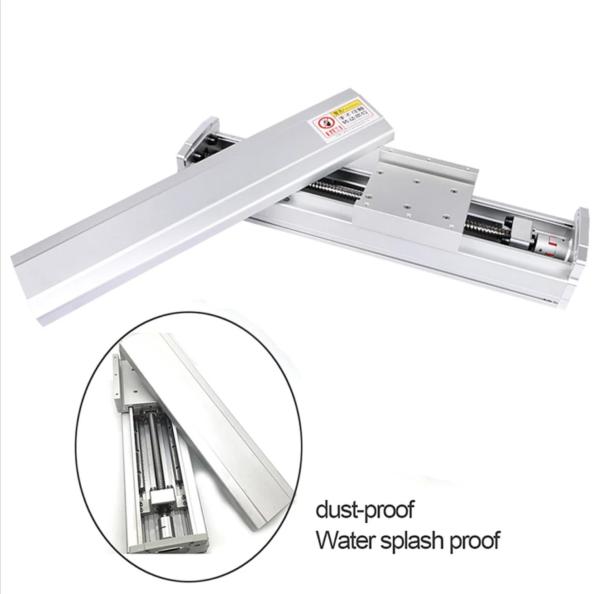

Fully Enclosed Aluminum Linear Module

Module material: Aluminum

Stroke:50~850MM for choose (Effective Stroke)

Horizontal load: 25KG (Max)

Vertical load: 8KG(Max)

Motor power: 50w/100w

Module width: 44mm

Ball screw accuracy:C7

Moving speed: 100~500mm/s

50-850mm Effective stroke Aluminum Linear Module Fully Enclosed

50-850mm Effective stroke Aluminum Linear Module Fully Enclosed

50-850mm Effective stroke Aluminum Linear Module Fully Enclosed

Effective Stroke 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850
L 218 268 318 368 418 468 518 568 618 668 718 768 818 868 918 968 1018
A 75 25 75 25 75 25 75 25 75 25 75 25 75 25 75 25 75
M 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8
N 4 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20 20
P 75 25 75 125 175 225 275 325 375 425 475 525 575 625 675 725 775
KG 1.11 1.36 1.61 1.86 2.11 2.35 2.6 2.85 3.1 3.34 3.59 3.84 4.09 4.34 4.59 4.84 5.09

Linear Module Workshop >>>>>>>>>>>>

50-850mm Effective stroke Aluminum Linear Module Fully Enclosed

50-850mm Effective stroke Aluminum Linear Module Fully Enclosed
50-850mm Effective stroke Aluminum Linear Module Fully Enclosed
