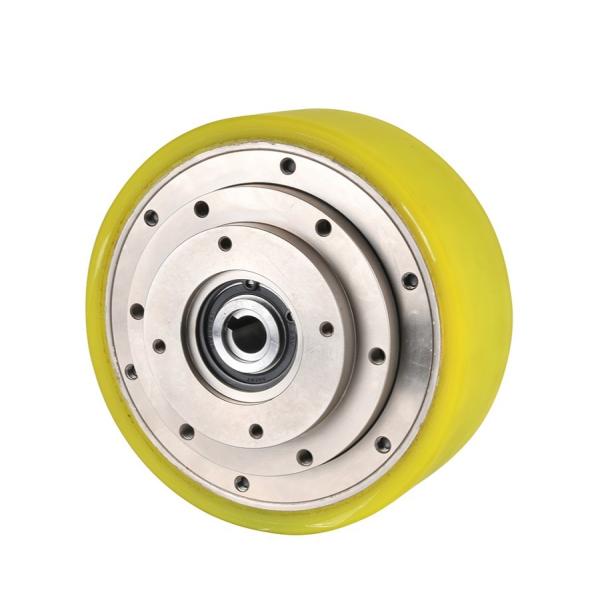

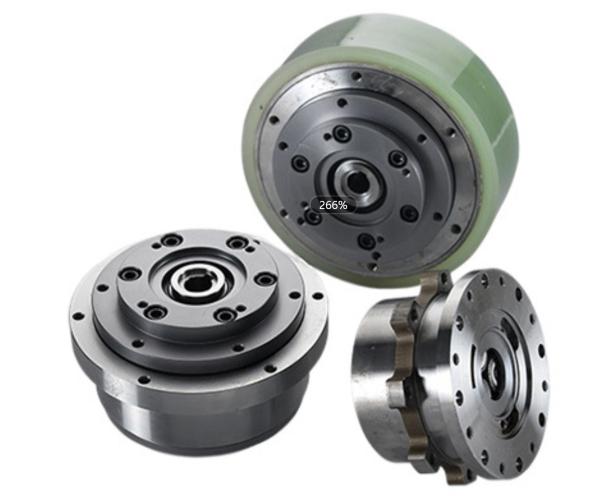

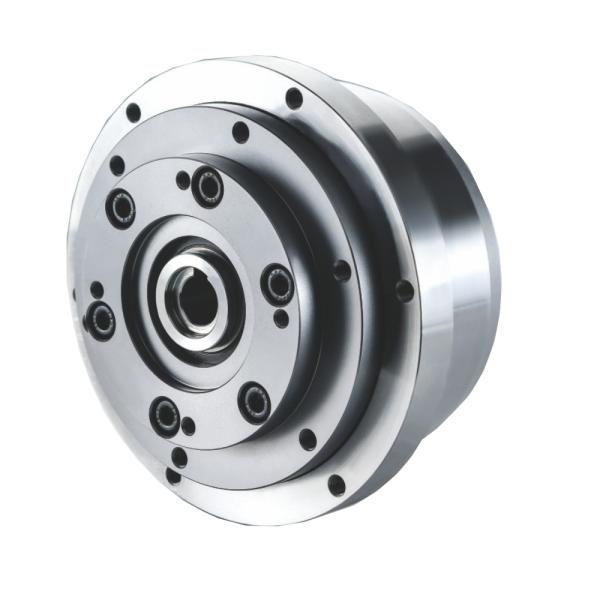

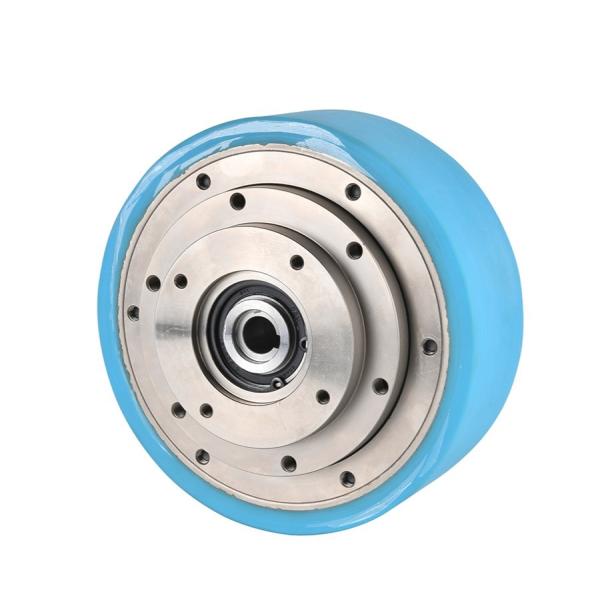

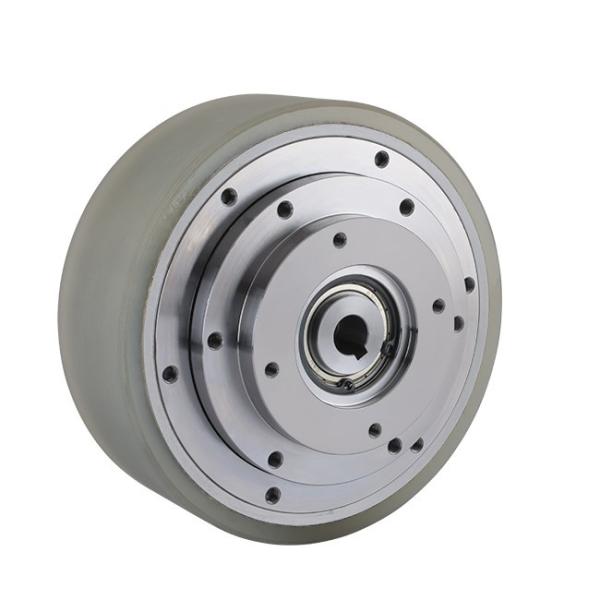

AGV Planetary Gearbox for Automatic Guide Vehical
AGV Planetary Gearbox for Automatic Guide Vehical
AGV Planetary Gearbox for Automatic Guide Vehical
AGV Planetary Gearbox for Automatic Guide Vehical
AGV Planetary Gearbox for Automatic Guide Vehical
AGV Planetary Gearbox for Automatic Guide Vehical
AGV Planetary Gearbox for Automatic Guide Vehical
AGV Planetary Gearbox for Automatic Guide Vehical
AGV Planetary Gearbox for Automatic Guide Vehical
AGV Planetary Gearbox for Automatic Guide Vehical
Specifications
Brand Name :
CHE
Model Number :
VGXZ
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Price :
USD, RMB, EUR
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Product Series :
VGXZ-95; VGXZ-115, VGXZ-115
Nominal Torque :
80~120Nm
Max.Output Torque :
350Nm
Wheel hub force :
Double support
Gear Ratio :
3, 4, 6, 9, 15, 21, 30
Efficiency :
0.96
Protection :
IP54
Matching Motor Power :
400w or 750w
Description

AGV Planetary Gearbox for Automatic Guide Vehical

AGV steering wheel is an indoor and outdoor scalable mobile tool for the construction industry, suitable for construction robots, service robots, medical robots, agricultural robots, etc. It has the characteristics of small size, simple structure, High efficiency and low noise control, High durability in rough surface conditions, high stability, good cost performance, modular components, Strong output bearings and a shock & vibration proof servo system ensure a powerful wheel traction and high durability. and can meet different needs and combinations, which is convenient for later maintenance.

AGV Planetary Gearbox for Automatic Guide Vehical

Compact Structure:

consists of a pu wheel, integrated planetary gearbox. Space-saving design. Flexible input mounting dimensions. Part of the structure is built-in, shortening the length of the wheel, which is conducive to the internal design of the AGV.
AGV Planetary Gearbox for Automatic Guide Vehical

Higher Toughness:

Outer adhesive coating ia PU (polyurethane), hardness can reach 80, wear-resistant, the most wheels in the maket can only reach 60. Shock & vibration proof. Extending service life, saving cost. Maintenance free
AGV Planetary Gearbox for Automatic Guide Vehical

High Accuracy:

Inside reducer is high precision gearing and powerful stability which can precisely control the AGV's movement; Can be combined with a wide range of motors as well as brakes and encoders.

AGV Planetary Gearbox for Automatic Guide Vehical

AGV steering wheel is mainly composed of motor, gearbox, reducer, encoder, steering wheel, wheel, brake, limit switch and other parts, etc., integrating product, walking, traction and steering functions, and can load and pull heavy goods. AGVs, mobile robots, etc.

*CHE ONLY PROVIDE THE WHEELS

Gearbox Model Gear Ratio Efficiency Operating time ratio at the same capacity Radial Force(150rpm) Wheel hub force Hub Outer Diameter Nominal Torque Max.Output Torque Axial Length Number of Accessories
VGXZ95 3,4,6,9 0.96 2 4200N Double support Ø150 or custom 40~95Nm 200Nm 65.5mm Motor+VGXZ95
VGXZ115

3,4,6,9,

15,21,30

 0.96 2 6800N Double support Ø160 or custom 80~120Nm 350Nm

Single stage:76.5mm

Double Stage:88~94mm

Motor+VGXZ115

VGXZ-95 Single Phase Speed Reducer Drawing

AGV Planetary Gearbox for Automatic Guide Vehical

1-Stage A-Length B-Length Weight
65.5mm 150mm 5.0kg

VGXZ-115 Single Phase Speed Reducer Drawing

AGV Planetary Gearbox for Automatic Guide Vehical

1-Stage A-Length B-Length Weight
76.5mm 160mm 7.4kg

VGXZ-115 Double Phase Speed Reducer Drawing

AGV Planetary Gearbox for Automatic Guide Vehical

2-Stage A-Length B-Length Weight
88.0mm 160mm 8.0kg

Factory Show

AGV Planetary Gearbox for Automatic Guide Vehical

Planetary Gearboxes Application on AGV

AGV Planetary Gearbox for Automatic Guide Vehical
