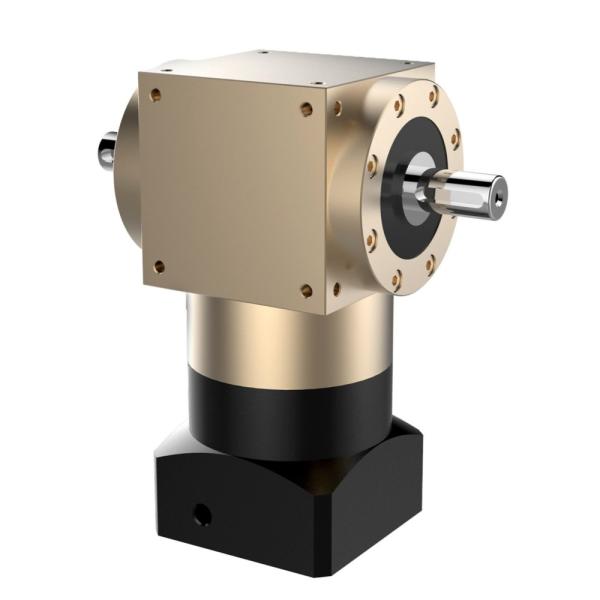

Right Angle Spiral Bevel Planetary Gearbox 200w-400w Rated Power
Right Angle Spiral Bevel Planetary Gearbox 200w-400w Rated Power
Specifications
Brand Name :
CHE
Model Number :
Spiral Bevel Planetary Gearbox
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Size :
45MM~140MM
Output Shaft Method :
Single key shaft, Optical shaft, Hollow single key shaft
Precision Class :
P2 (standard), P1 (High precision)
Gear type :
Spur Gear
Rated Power :
200w~400w
Installation Direction :
L1≥96%； L2≥92%
Description

Right Angle Spiral Bevel Planetary Gearbox

Planetary Gear Speed Reducer Features:

1. Planetary gearbox matched with high end servo motor and stepper motor.

2. Widely used in automation equipment, various types of trucks, construction machinery, food automation production machinery; PV industry; Natural gas & oil;

3. Helical gear usually used in high end machine , spur gear sually used in normaly machine, according to your requirement to select.

●Low noise ●Low Volume ●Save Space ●Compact Structure

●High Efficiency ●High Rigidity ●High Load ●High Power

Reduction Ratio

Single Stage: 3 / 4 / 5 / 7 / 10

Double Stage: 12 /15 /16/ 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 /80 / 100
Low Backlash

L1 (Single Stage) Planetary Gearbox: ≤ 8arcmin / ≤16arcmin(P1/P2)

L2 (Two Stage Planetary) Gearbox: ≤12arcmin / ≤20arcmin(P1/P2)
Input Speed n1N

Maximum input speed: 8000rpm

Rated input speed: 4000rpm
Full-load Efficiency

L1 (Single Stage) : ≧ 96%

L2 (Double Stage): ≧ 92%

Right Angle Spiral Bevel Planetary Gearbox 200w-400w Rated Power
