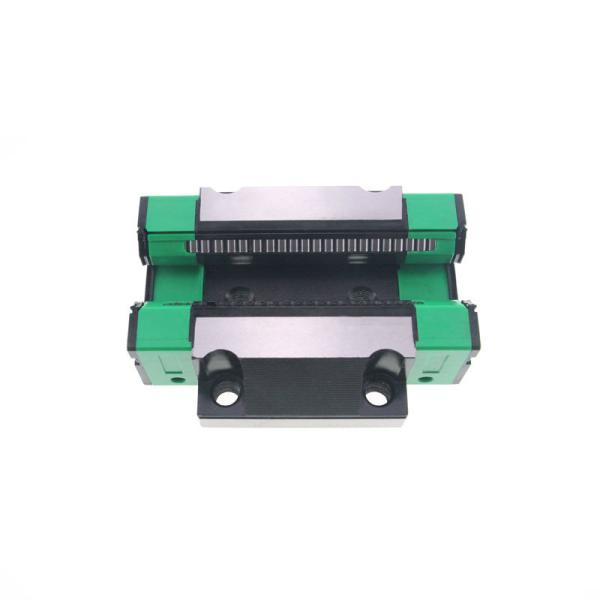

Self Lubricating Linear Guide Slider Low Noise Linear Bearing Block Ultra Precision Positioning
Self Lubricating Linear Guide Slider Low Noise Linear Bearing Block Ultra Precision Positioning
Self Lubricating Linear Guide Slider Low Noise Linear Bearing Block Ultra Precision Positioning
Self Lubricating Linear Guide Slider Low Noise Linear Bearing Block Ultra Precision Positioning
Self Lubricating Linear Guide Slider Low Noise Linear Bearing Block Ultra Precision Positioning
Self Lubricating Linear Guide Slider Low Noise Linear Bearing Block Ultra Precision Positioning
Self Lubricating Linear Guide Slider Low Noise Linear Bearing Block Ultra Precision Positioning
Self Lubricating Linear Guide Slider Low Noise Linear Bearing Block Ultra Precision Positioning
Specifications
Brand Name :
SXEGL
Model Number :
GHL15/225/30/35/45/55CA/HA
Certification :
CE/FCC/EPA/ROSH/ISO
Place of Origin :
China
MOQ :
1
Packaging Details :
Carton
Delivery Time :
Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Payment Terms :
Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability :
All products have passed CE certification and comply with EU RoHS environmental standards
Price :
$6.9-$89
Product Name: :
Linear Guide Slider
Material: :
Bearing Steel
Core Components: :
Bearing
Preload Code: :
ZO,ZA,ZB
Applicable Industries: :
Machinery
Performance: :
Low Noise, Very Smooth And Long Life
Description

Ultra Precision Positioning Ball Linear Slider Self Lubricating Maintenance Free

SEXGL Ball linear guide slider carriages deliver unmatched accuracy and reliability in industrial automation, trusted by partners like BYD (EV battery assembly lines) and BOE (display manufacturing robots) across North America, Europe, Southeast Asia, and South Korea.

The product consists of a single slider body, ball retainer, sealing components, and mounting accessories, and can independently fit standard linear guide rails (such as HGR/HGW series), providing lightweight and cost-effective linear motion solutions for automation equipment, precision instruments, and medical machinery.
1. Micron-Level Precision & Stable Operation

Utilizes G5 precision balls (roundness error ≤5μm) combined with precision grinding of guide rail raceways to achieve ±10μm positioning accuracy (standard type) and ±5μm ultra-precision (customized type);

2. Low Friction & High Efficiency

Rolling friction coefficient as low as 0.008 (10 times better than sliding guides), reducing energy consumption by 40% under the same load;

3. Lightweight Design with High Load Capacity

4. Plug-and-Play & Flexible Adaptability

Standardized mounting hole spacing (compatible with major guide rail brands) ;

Supports independent use of single sliders or parallel combination of multiple sliders

5. Full Environmental Adaptability

Dust-proof sliders are equipped with double-lip seals (IP54 protection rating) to effectively block dust/cutting fluid intrusion;

Optional special surface treatments (hard chrome plating/PTFE coating)

Specification sheet

Self Lubricating Linear Guide Slider Low Noise Linear Bearing Block Ultra Precision Positioning

Type Combination size Slider size
H H₁ N W B B₁ C L₁ L K₁ K₂ G M*1 T H₂ H₃
GHL15CA 24 4.4 9.5 34 26 4 26 39.5 61.1 3.35 4.75 5.5 M44 6 4 4
GHL25CA 36 5.6 12.5 48 35 6.5 35 58 82 5 6 12 M6>6 8 6 5.5
GHL25HA 50 78.6 102.6
GHL30CA 42 6 16 60 40 10 40 70 98 6.5 5.5 12 M8 ×0 8.5 7 6
GHL30HA 60 93 121
GHL35CA 48 7.4 18 70 50 10 50 80 112 5.5 6.5 12 MB >9 10.2 9 8
GHL35HA 72 105.8 137.8
GHL45CA 60 9.5 20.5 86 60 13 60 97 137 4.8 8 13 M10×3 16 11 10
GHL45HA 80 128.8 168.8
GHL55CA 70 13 23.5 100 75 12.5 75 117.7 161.7 6 11 13 M12×8 17.5 12 19
GHL55HA 95 155.8 199.8
Type Rail size Guide rail bolt size Basic dynamic rated load Basic
Static
Rated
Load		 Allowable static moment weight
WR He D h d P E (mm) C(KN) CO(KN) MR
KN-m		 Mp
KN-m		 My
KN-m		 Slider
kg		 Rail
kg/m
GHL15CA 15 15 7.5 5.3 4.5 60 20 M4×6 10.59 16.19 0.11 0.09 0.09 0.20 1.42
GHL25CA 23 22 11 9 7 60 20 M6×20 25.11 36.42 0.41 0.32 0.32 0.53 3.25
GHL25HA 30.73 48.56 0.55 0.56 0.56 0.71
GHL30CA 28 26 14 12 9 80 20 M8 ×25 34.93 49.58 0.58 0.5 0.5 0.90 4.49
GHL30HA 42.72 66.1 0.8 0.9 0.9 1.20
GHL35CA 34 29 14 12 9 80 20 MB ×25 48.5 57.6 108 0.78 0.78 1.50 6.36
GHL35HA 58.9 89.62 1.34 1.30 1.30 1.96
GHL45CA 45 38 20 17 14 105 22.5 M12 ×85 75.26 100.2 1.8 1.35 1.35 2.75 10.45
GHL45HA 92.45 130.52 2.52 2.51 2.51 3.65
GHL55CA 53 44 23 20 16 120 30 M14×45 112.33 145.64 3.59 2.5 2.5 4.20 15.12
GHL55HA 136.54 190.28 4.58 4.37 4.37 5.55
