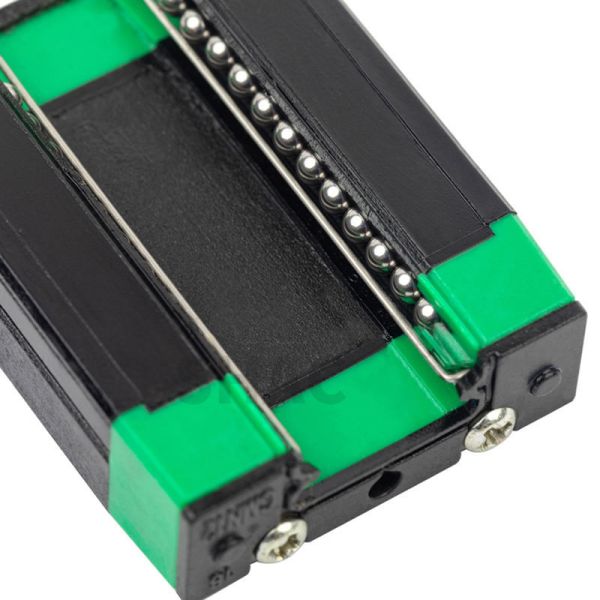

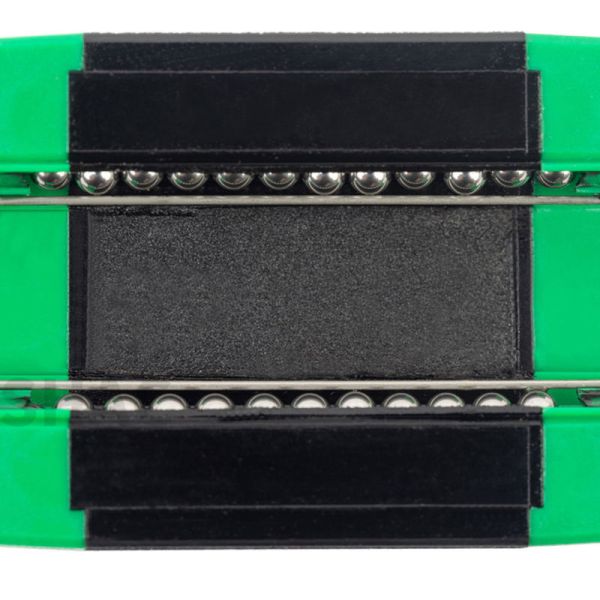

Wear Resistant Dust-Proof Corrosion Resistant Linear Guide Slider for High Precision Machinery
Wear Resistant Dust-Proof Corrosion Resistant Linear Guide Slider for High Precision Machinery
Wear Resistant Dust-Proof Corrosion Resistant Linear Guide Slider for High Precision Machinery
Wear Resistant Dust-Proof Corrosion Resistant Linear Guide Slider for High Precision Machinery
Specifications
Brand Name :
SXEGL
Model Number :
GHH15/20/25/30/35/45/55/65 CA/HA
Certification :
CE/FCC/EPA/ROSH/ISO
Place of Origin :
China
MOQ :
1
Price :
$6.9-$89
Payment Terms :
Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability :
All products have passed CE certification and comply with EU RoHS environmental standards
Delivery Time :
Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Packaging Details :
Carton
Product Name: :
Linear Guide Slider
Material: :
Bearing Steel
Core Components: :
Bearing
Preload Code: :
ZO,ZA,ZB
Applicable Industries: :
Machinery
Performance: :
Low Noise, Very Smooth And Long Life
Description
Wear Resistant Durable Slider Four Way Force Bearing Dust-Proof Corrosion Resistant
As a core component of precision linear transmission, SHAC sliders boast wide applicability, covering fields such as CNC machinery, industrial automation, laser equipment, medical devices, automotive manufacturing, and woodworking machinery. They have established stable cooperative relationships with enterprises like Foxconn, Han's Laser, and Haitian Plastic Machinery, providing support for the operation of high-precision equipment.
Standard procedures must be followed during use: Wear gloves before installation to prevent oxidation caused by sweat stains. The slider is equipped with a dummy rail that does not need to be removed; align it with the guide rail and push gently to make the dummy rail fall off naturally, avoiding steel ball detachment. Tighten bolts in a diagonal sequence; for high-precision scenarios, fix them sequentially from one side to eliminate stress.
Daily maintenance is crucial. Regularly clean surface impurities and inject specialized lubricant through the oil nozzle. It is strictly prohibited to wipe with alcohol or thinner. Avoid operating the slider beyond the guide rail range. Strengthen sealing protection in humid and dusty environments, and regularly inspect the condition of sealing gaskets and oil nozzles to extend service life.

Product Name Linear Guidway
Model# GHH20
Material Bearing Steel
Block Type Square Type / Flange Type
Load Type Heavy Load / Medium Load
Block Mounting Mounting from Top
Rail Length (mm) 100-4000
Note - Distance from the Edge Tolerance of E value for standard rail is ± 0.5mm
Features High Precision, High Speed, Heavy Load and High Rigidity


Features of Linear Guide Rail

1.High Precision:The friction resistance is decreased and the accuracy could be maintained for long period than traditional slide system

2.High Speed:Linear guide block,rail and ball apply by contact point of Rolling system.Due to low frictional resistance,the required driving force is much lower and the working speed is much higher than in other system

3.Heavy Load:Made of high quality bearing Steel with low friction coefficients to make sure heavy load.

4.High Performance:Even under a preload or regular load,the ball and raceway contact one another at two points in the loading direction.This design gives rise to a smooth roling motion

Specification sheet

Wear Resistant Dust-Proof Corrosion Resistant Linear Guide Slider for High Precision Machinery

Type Combination size Slider size
H H₁ N W B B₁ C L₁ L K₁ K₂ G M*1 T H₂ | H₃
GHH15CA 28 4.4 9.5 34 26 4 26 39.5 61.1 3.35 4.75 5.5 M4×5 6 8 8
GHH20CA 30 4.3 12 44 32 6 36 50.5 76.5 5 6 12 M5>6 8 6 6
GHH20HA 50 65.2 91.2
GHH25CA 40 5.6 12.5 48 35 6.5 35 58 82 5 6 12 M6×8 8 10 9.5
GHH25HA 50 78.6 102.6
GHH30CA 45 6 16 60 40 10 40 70 98 6.5 5.5 12 M8×0 8.5 10 9
GHH30HA 60 93 121
GHH35CA 55 7.4 18 70 50 10 50 80 112 5.5 6.5 12 M8×2 10.2 16 15
GHH35HA 72 105.8 137.8
GHH45CA 70 9.5 20.5 86 60 13 60 97 137 4.8 8 13 M10×7 16 21 20
GHH45HA 80 128.8 168.8
GHH55CA 80 13 23.5 100 75 12.5 75 117.7 161.7 6 11 13 M12×8 17.5 22 29
GHH55HA 95 155.8 199.8
GHH65CA 90 15 31.5 126 76 25 70 144.2 194.2 6 14 13 M16×20 25 15 15
GHH65HA 120 203.6 253.6
Type Rail size Guide rail bolt size Basic dynamic rated load Basic
Static
Rated
Load		 Allowable static moment weight
W. Ha D h d P E (mm) C(KN) CO
(KN)		 MR
KN-m		 Mp
KN-m		 My
KN-m		 Silder
kg		 Rail
kg/m
GHH15CA 15 15 7.5 5.3 4.5 60 20 M4×6 10.59 16.19 0.11 0.09 0.09 0.20 1.42
GHH20CA 20 17.5 9.5 8.5 6 60 20 M5×6 17.2 25.6 0.25 0.18 0.18 0.33 2.2
GHH20HA 20.8 33.55 0.32 0.31 0.31 0.41
GHH25CA 23 22 11 9 7 60 20 M6 ×20 25.11 36.42 0.41 0.32 0.32 0.53 3.25
GHH25HA 30.73 48.56 0.55 0.56 0.56 0.71
GHH30CA 28 26 14 12 9 80 20 M8 ×25 34.93 49.58 0.58 0.5 0.5 0.90 4.49
GHH30HA 42.72 66.1 0.8 0.9 0.9 1.20
GHH35CA 34 29 14 12 9 80 20 M8 ×25 48.5 57.6 1.08 0.78 0.78 1.50 6.36
GHH35HA 58.9 89.62 1.34 1.30 1.30 1.96
GHH45CA 45 38 20 17 14 105 22.5 M12×35 75.26 100.2 1.8 1.35 1.35 2.75 10.45
GHH45HA 92.45 130.52 2.52 2.51 2.51 3.65
GHH55CA 53 44 23 20 16 120 30 M14×15 112.33 145.64 3.59 2.5 2.5 4.20 15.12
GHH55HA 136.54 190.28 4.58 4.37 4.37 5.55
GHH65CA 63 53 26 22 18 150 35 M16×50 160.22 210.37 6.45 4.18 4.18 9.25 21.25
GHH65HA 205.36 298.77 9.15 7.15 7.15 12.95
