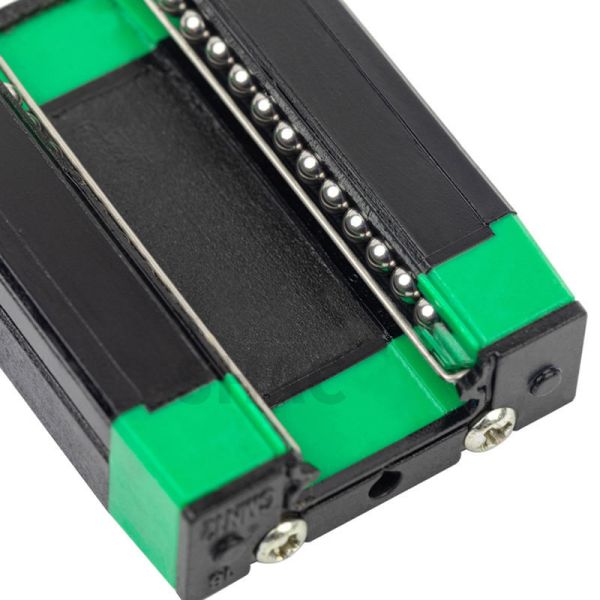

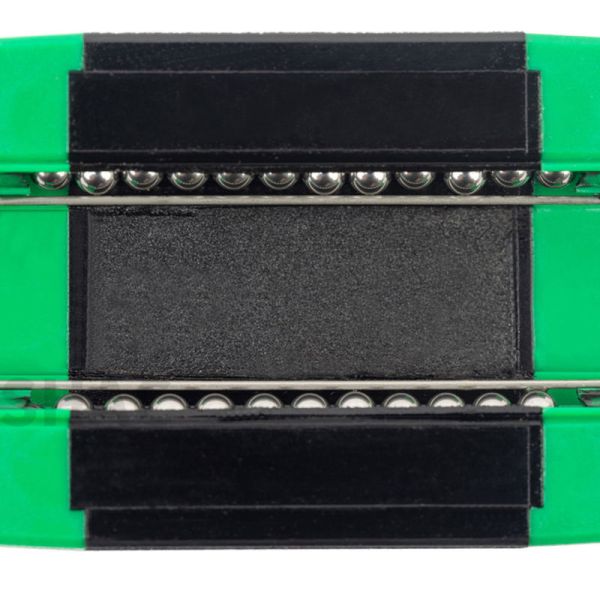

High Rigidity Precise Self Aligning Low Noise Linear Guide Slider for CNC Machinery
High Rigidity Precise Self Aligning Low Noise Linear Guide Slider for CNC Machinery
High Rigidity Precise Self Aligning Low Noise Linear Guide Slider for CNC Machinery
High Rigidity Precise Self Aligning Low Noise Linear Guide Slider for CNC Machinery
Specifications
Brand Name :
SXEGL
Model Number :
GHL15/225/30/35/45/55CA/HA
Certification :
CE/FCC/EPA/ROSH/ISO
Place of Origin :
China
MOQ :
1
Price :
$6.9-$89
Payment Terms :
Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability :
All products have passed CE certification and comply with EU RoHS environmental standards
Delivery Time :
Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Packaging Details :
Carton
Product Name: :
Linear Guide Slider
Material: :
Bearing Steel
Core Components: :
Bearing
Preload Code: :
ZO,ZA,ZB
Applicable Industries: :
Machinery
Performance: :
Low Noise, Very Smooth And Long Life
Description
Interchangeable Universal GHL Slider High Rigidity Precise Self Aligning
As a core linear transmission component of CNC machine tools, this slider is crucial for ensuring machining accuracy and efficiency. It precisely converts the power of the servo motor to drive the worktable and headstock for high-precision linear motion, while resisting cutting impact force and vibration, effectively controlling backlash. It helps CNC equipment achieve micron-level positioning in milling, drilling and precision machining, is compatible with various CNC models such as vertical machining centers and CNC lathes, and stably improves workpiece surface quality and batch machining consistency.
The product features remarkable cost-effectiveness. Adopting alloy steel quenching process and optimized raceway design, it balances high rigidity and wear resistance, with a service life comparable to high-end models. However, it eliminates brand premium and intermediate links, significantly reducing the accessory procurement cost per equipment, making it suitable for batch upgrades and spare parts storage.
Sufficient inventory supports spot direct delivery. Mainstream models do not require custom waiting; orders are quickly shipped within 48 hours after placement. Relying on a mature logistics network, it is directly delivered to the workshop, effectively reducing CNC equipment maintenance downtime and production line preparation cycles, and safeguarding efficient production.

Specification sheet

High Rigidity Precise Self Aligning Low Noise Linear Guide Slider for CNC Machinery

Type Combination size Slider size
H H₁ N W B B₁ C L₁ L K₁ K₂ G M*1 T H₂ H₃
GHL15CA 24 4.4 9.5 34 26 4 26 39.5 61.1 3.35 4.75 5.5 M44 6 4 4
GHL25CA 36 5.6 12.5 48 35 6.5 35 58 82 5 6 12 M6>6 8 6 5.5
GHL25HA 50 78.6 102.6
GHL30CA 42 6 16 60 40 10 40 70 98 6.5 5.5 12 M8 ×0 8.5 7 6
GHL30HA 60 93 121
GHL35CA 48 7.4 18 70 50 10 50 80 112 5.5 6.5 12 MB >9 10.2 9 8
GHL35HA 72 105.8 137.8
GHL45CA 60 9.5 20.5 86 60 13 60 97 137 4.8 8 13 M10×3 16 11 10
GHL45HA 80 128.8 168.8
GHL55CA 70 13 23.5 100 75 12.5 75 117.7 161.7 6 11 13 M12×8 17.5 12 19
GHL55HA 95 155.8 199.8
Type Rail size Guide rail bolt size Basic dynamic rated load Basic
Static
Rated
Load		 Allowable static moment weight
WR He D h d P E (mm) C(KN) CO(KN) MR
KN-m		 Mp
KN-m		 My
KN-m		 Slider
kg		 Rail
kg/m
GHL15CA 15 15 7.5 5.3 4.5 60 20 M4×6 10.59 16.19 0.11 0.09 0.09 0.20 1.42
GHL25CA 23 22 11 9 7 60 20 M6×20 25.11 36.42 0.41 0.32 0.32 0.53 3.25
GHL25HA 30.73 48.56 0.55 0.56 0.56 0.71
GHL30CA 28 26 14 12 9 80 20 M8 ×25 34.93 49.58 0.58 0.5 0.5 0.90 4.49
GHL30HA 42.72 66.1 0.8 0.9 0.9 1.20
GHL35CA 34 29 14 12 9 80 20 MB ×25 48.5 57.6 108 0.78 0.78 1.50 6.36
GHL35HA 58.9 89.62 1.34 1.30 1.30 1.96
GHL45CA 45 38 20 17 14 105 22.5 M12 ×85 75.26 100.2 1.8 1.35 1.35 2.75 10.45
GHL45HA 92.45 130.52 2.52 2.51 2.51 3.65
GHL55CA 53 44 23 20 16 120 30 M14×45 112.33 145.64 3.59 2.5 2.5 4.20 15.12
GHL55HA 136.54 190.28 4.58 4.37 4.37 5.55
