High Rigidity Wear Resistance Linear Guide Block for CNC Machinery with Low Noise Performance
High Rigidity Wear Resistance Linear Guide Block for CNC Machinery with Low Noise Performance
High Rigidity Wear Resistance Linear Guide Block for CNC Machinery with Low Noise Performance
High Rigidity Wear Resistance Linear Guide Block for CNC Machinery with Low Noise Performance
High Rigidity Wear Resistance Linear Guide Block for CNC Machinery with Low Noise Performance
High Rigidity Wear Resistance Linear Guide Block for CNC Machinery with Low Noise Performance
Specifications
Brand Name :
SXEGL
Model Number :
GHH15/20/25/30/35/45/55/65 CA/HA
Certification :
CE/FCC/EPA/ROSH/ISO
Place of Origin :
China
MOQ :
1
Price :
$6.9-$89
Payment Terms :
Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability :
All products have passed CE certification and comply with EU RoHS environmental standards
Delivery Time :
Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Packaging Details :
Carton
Product Name: :
Linear Guide Block
Material: :
Bearing Steel
Core Components: :
Bearing
Preload Code: :
ZO,ZA,ZB
Applicable Industries: :
Machinery
Performance: :
Low Noise, Very Smooth And Long Life
Description

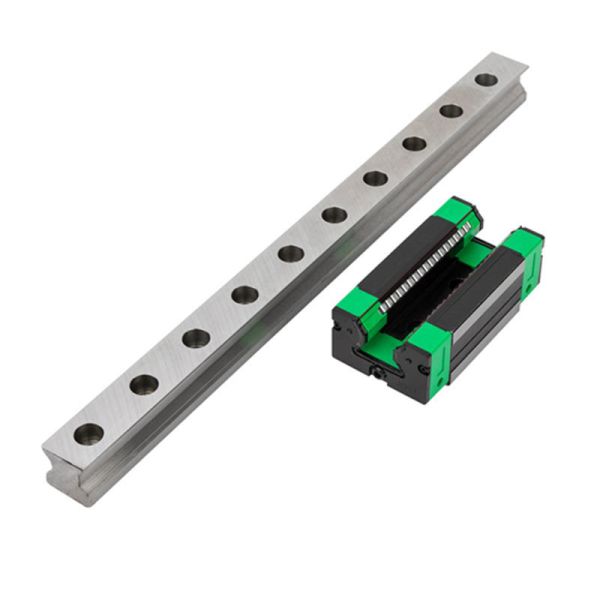

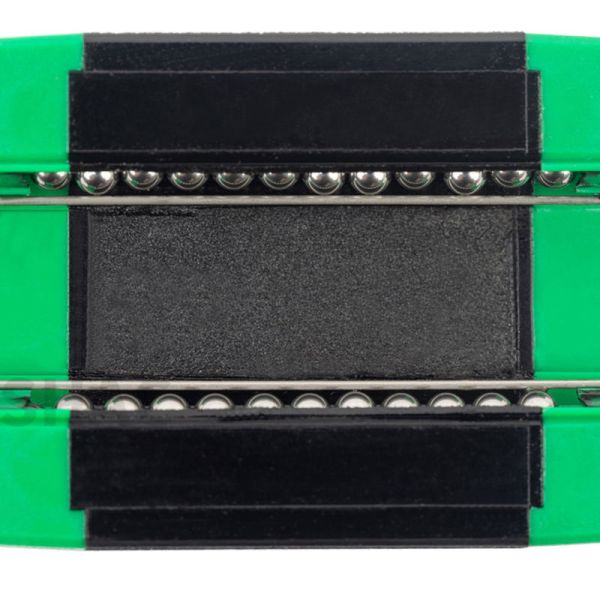

CNC Professional Solution: GHH Sliders - High Rigidity and Wear Resistance
This precision linear slider is made of alloy steel quenched material, with a positioning accuracy of ±0.002mm, compatible with guide rails of 15-45mm specifications. Thanks to its four-way equal rigidity design, it widely empowers precision transmission needs in multiple industries.
In the field of CNC machine tools, it bears the high-frequency reciprocating movement of the worktable, resists cutting vibration and impact force, controls backlash to ≤0.001mm, and ensures micron-level positioning accuracy for milling and drilling. In industrial automation scenarios, it is suitable for robotic arms and conveyor lines, with an operating speed of up to 3m/s, supporting efficient and continuous operation of equipment.
In the medical device field, its low-noise and smooth performance (operating noise ≤45dB) and sealed protection design make it suitable for diagnostic instruments and surgical equipment, ensuring stable and interference-free movement. In laser equipment and electronic manufacturing, it accurately transmits power and cooperates with the adjustable preload function to meet the needs of high-precision alignment and cutting. It is adaptable to humid, dusty and other complex working conditions, serving as a core component for precision transmission in multiple fields.

High Rigidity Wear Resistance Linear Guide Block for CNC Machinery with Low Noise Performance

Type Combination size Slider size
H H₁ N W B B₁ C L₁ L K₁ K₂ G M*1 T H₂ | H₃
GHH15CA 28 4.4 9.5 34 26 4 26 39.5 61.1 3.35 4.75 5.5 M4×5 6 8 8
GHH20CA 30 4.3 12 44 32 6 36 50.5 76.5 5 6 12 M5>6 8 6 6
GHH20HA 50 65.2 91.2
GHH25CA 40 5.6 12.5 48 35 6.5 35 58 82 5 6 12 M6×8 8 10 9.5
GHH25HA 50 78.6 102.6
GHH30CA 45 6 16 60 40 10 40 70 98 6.5 5.5 12 M8×0 8.5 10 9
GHH30HA 60 93 121
GHH35CA 55 7.4 18 70 50 10 50 80 112 5.5 6.5 12 M8×2 10.2 16 15
GHH35HA 72 105.8 137.8
GHH45CA 70 9.5 20.5 86 60 13 60 97 137 4.8 8 13 M10×7 16 21 20
GHH45HA 80 128.8 168.8
GHH55CA 80 13 23.5 100 75 12.5 75 117.7 161.7 6 11 13 M12×8 17.5 22 29
GHH55HA 95 155.8 199.8
GHH65CA 90 15 31.5 126 76 25 70 144.2 194.2 6 14 13 M16×20 25 15 15
GHH65HA 120 203.6 253.6
Type Rail size Guide rail bolt size Basic dynamic rated load Basic
Static
Rated
Load		 Allowable static moment weight
W. Ha D h d P E (mm) C(KN) CO
(KN)		 MR
KN-m		 Mp
KN-m		 My
KN-m		 Silder
kg		 Rail
kg/m
GHH15CA 15 15 7.5 5.3 4.5 60 20 M4×6 10.59 16.19 0.11 0.09 0.09 0.20 1.42
GHH20CA 20 17.5 9.5 8.5 6 60 20 M5×6 17.2 25.6 0.25 0.18 0.18 0.33 2.2
GHH20HA 20.8 33.55 0.32 0.31 0.31 0.41
GHH25CA 23 22 11 9 7 60 20 M6 ×20 25.11 36.42 0.41 0.32 0.32 0.53 3.25
GHH25HA 30.73 48.56 0.55 0.56 0.56 0.71
GHH30CA 28 26 14 12 9 80 20 M8 ×25 34.93 49.58 0.58 0.5 0.5 0.90 4.49
GHH30HA 42.72 66.1 0.8 0.9 0.9 1.20
GHH35CA 34 29 14 12 9 80 20 M8 ×25 48.5 57.6 1.08 0.78 0.78 1.50 6.36
GHH35HA 58.9 89.62 1.34 1.30 1.30 1.96
GHH45CA 45 38 20 17 14 105 22.5 M12×35 75.26 100.2 1.8 1.35 1.35 2.75 10.45
GHH45HA 92.45 130.52 2.52 2.51 2.51 3.65
GHH55CA 53 44 23 20 16 120 30 M14×15 112.33 145.64 3.59 2.5 2.5 4.20 15.12
GHH55HA 136.54 190.28 4.58 4.37 4.37 5.55
GHH65CA 63 53 26 22 18 150 35 M16×50 160.22 210.37 6.45 4.18 4.18 9.25 21.25
GHH65HA 205.36 298.77 9.15 7.15 7.15 12.95
