12 V 7.2 AH Top Terminal VRLA AGM Battery for General Purpose ， L151mm x W65mm x H101mm
12 V 7.2 AH Top Terminal VRLA AGM Battery for General Purpose ， L151mm x W65mm x H101mm
Specifications
Brand Name :
HRESYS
Model Number :
VHR 12GT7.2
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
12 V Lead-acid Batteries
Application :
General Use
Capacity :
7.2 Ah
Nominal Voltage (V) :
12
Float Charge Voltage :
13.6V @25℃
Internal Resistance :
≤ 0.026 Ohm (fully charged)
Weight :
2.19 kg (4.67 lbs)
Dimension :
L151mm x W65mm x H101mm
Description

12 V 7.2 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm

  • Product Overview

HRESYS GT VRLA AGM(Absorbent Glass Mat) series is Top terminal battery for General use, such as UPS systems, security and alarm systems, telecommunication, utilities, emergency light systems, and other backup applications. With advanced manufacturing technique and industry scale, GT series delivers high energy density and high reliability performance.

  • Features and Benefits​
  1. High energy density and high reliability performance
  2. Standard sizes for general purpose
  3. Low self-discharge rate
  4. Up to 10 years long float life design
  5. Maintenance free by valve regulated
  6. Easy to install

  • Applications
  1. Uninterrupted Power Supply(UPS)
  2. Emergency Power Supply
  3. Electric Tools and Toys
  4. Cable Television

  • Working Scenarios

  1. Batteries are mainly working as backup power with not many cycles
  2. Shadow cyclic use and cycles not many
  3. Backup time normally doesn’t exceed 2 hours

  • Product Specification
Nominal Voltage (V) 12
Designed Floating Life (25℃) 5 Years
Nominal Capacity (25℃) 7.2 Ah@ C20 (to 1.75Vpc)
Dimension (mm) L151mm x W65mm x H101mm
Approx. Weight 2.19 kg (4.67 lbs)
Terminal Type Fasten Tab F2
Internal Resistance ≤ 0.026m Ohm (fully charged @25℃)
Max. Charge Current 2.1 A
Max. Discharge Current(5S) 105 A
Short Circuit Current 600 A
Self Discharge Approx. 2.5% per month @ 20℃
Ambient Temperature Discharge: -20~55℃
Charge: -20~50℃
Storage: -20~45℃
Float Charge Voltage 13.6V @25℃
Equalize Charge Voltage 14.4V @25℃
Container Material ABS (UL94-V0 optional)

  • Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 PART4

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

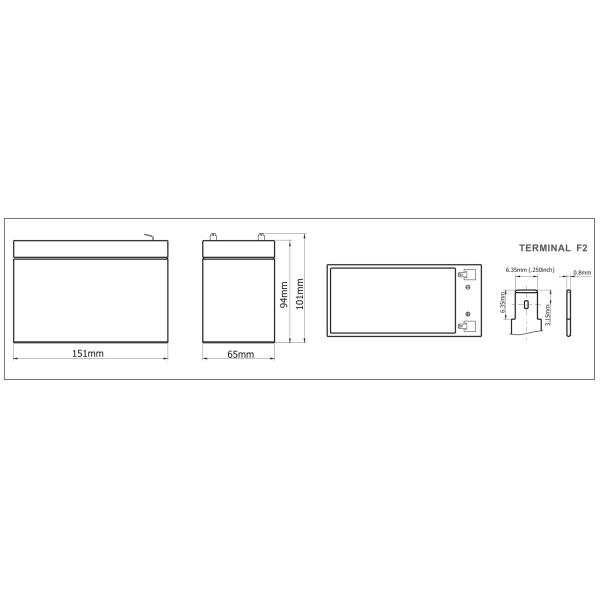

  • Battery Dimension

12 V 7.2 AH Top Terminal VRLA AGM Battery for General Purpose ， L151mm x W65mm x H101mm

  • Performance Curves

12 V 7.2 AH Top Terminal VRLA AGM Battery for General Purpose ， L151mm x W65mm x H101mm
