AGM Sealed Lead Acid Battery 2 V 1200 AH High Reliability Performance
AGM Sealed Lead Acid Battery 2 V 1200 AH High Reliability Performance
Specifications
Place of Origin :
China
Brand Name :
HRESYS
Certification :
CE
MOQ :
10 Pcs
Price :
Negotiable
Packaging Details :
Box/carton(standard package)
Delivery Time :
30 DAYS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Model Number :
VHR 2GT1200
Product Name :
2 V Lead-acid Batteries
Capacity :
1200 Ah
Float Charge Voltage :
2.25 V/cell @25℃
Weight :
63.7 kg (140.4 lbs)
Application :
General Use
Nominal Voltage (V) :
2
Internal Resistance :
Approx. 0.20mOhm (fully charged @20℃)
Dimension :
L470mm x W170mm x H340mm
Description

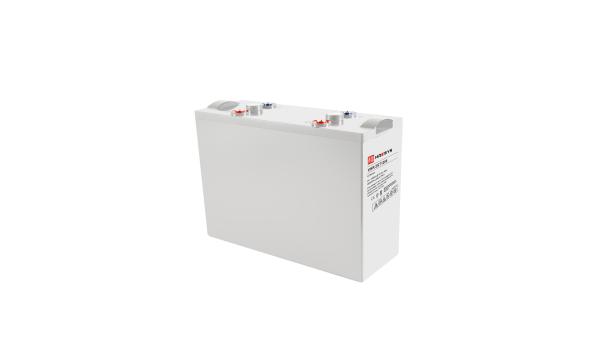

2 V 1200 AH Top Terminal VRLA AGM Battery for General Use , L470mm x W170mm x H340mm

  • Product Overview

HRESYS GT series (Top Terminal, 2V) battery is novel in design, reasonable in structure and occupying the leading position in the same industry of the world. It is mainly used for general purpose applications, such as UPS systems, security and alarm systems, telecommunication, utilities, emergency light systems, and other backup applications.

  • Features and Benefits​
    • Design lifespan: 12 years @25°C
    • Valve Regulated Lead Acid AGM technology
    • High energy density and high reliability performance
    • Standard sizes for general purpose
    • ABS material increase the strength of battery container
    • Flexible design for multiple installation space

  • Applications
    • Uninterrupted Power Supply(UPS)
    • Emergency Power Supply
    • Electric Tools and Toys
    • Cable Television

  • Complied standards
    • IEC 60896-21/22
    • GB/T 19638
    • JIS C8704
    • BS6290 part 4

  • Management and Product Certificates
    • ISO9001:2015
    • ISO14001:2015
    • OHSAS18001:2007
    • CE Certificate

  • Product Specification​
Nominal Voltage (V) 2
Designed Floating Life (25℃) 12 Years
Nominal Capacity (25℃) 1200 Ah@ C10 (to 1.80Vpc)
Dimension (mm) L470mm x W170mm x H340mm
Approx. Weight 63.7 kg (140.4 lbs)
Terminal Type Female Copper Insert M8
Internal Resistance Approx. 0.20mOhm (fully charged @20℃)
Max. Charge Current 300 A
Max. Discharge Current(5S) 4000 A
Short Circuit Current 12000 A
Self Discharge Approx. 2.5% per month @ 20℃
Ambient Temperature Discharge: -20~55°C
Charge: -20~50 C
Storage: -20~45 C
Float Charge Voltage 2.25V/cell@25℃
Equalize Charge Voltage 2.35V/cell@25℃
Container Material ABS(UL94-V0 optional)

  • Battery Dimension

AGM Sealed Lead Acid Battery 2 V 1200 AH High Reliability Performance

  • Performance Curves

AGM Sealed Lead Acid Battery 2 V 1200 AH High Reliability Performance
