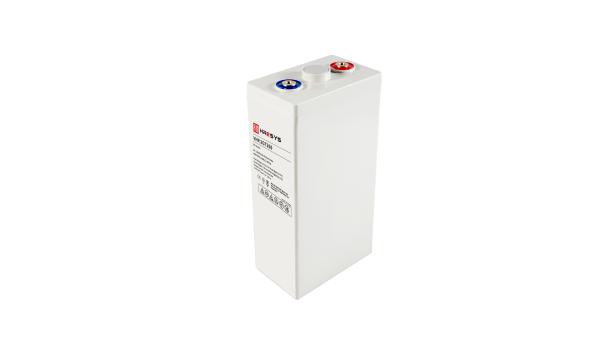

2V 2000 AH 2v Lead Acid Cell , Vrla Lead Acid Battery Low Self Discharge Rate
2V 2000 AH 2v Lead Acid Cell , Vrla Lead Acid Battery Low Self Discharge Rate
Specifications
Brand Name :
HRESYS
Model Number :
VHR 2GT2000
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Internal Resistance :
≤ 0.75 Ohm (fully charged)
Product Name :
2 V Lead-acid Batteries
Weight :
13.6 kg (30.0 lbs)
Dimension :
L170mm x W105mm x H340mm
Application :
General Use
Capacity :
2000 Ah
Nominal Voltage (V) :
2
Float Charge Voltage :
2.25 V/cell @25℃
Description

2V 200 AH Top Terminal VRLA AGM Battery for General Purpose, L170mm x W105mm x H340mm

  • Product Overview

HRESYS GT series VRLA AGM Battery is specially designed for telecommunication, utilities, ups systems and emergency light system and other general purpose applications.

With leading technologies and state-of-the-art automated manufacturing, GT series delivers excellent performance like high reliability and high energy density.

  • Features and Benefits
    • 12+ years design floating life
    • Battery capacity ranging from 200Ah to 3000Ah
    • Standard sizes design suitable for general purpose
    • Low self-discharge rate
    • Maintenance free - no water addition required

  • Applications
    • UPS
    • EPS
    • IDC
    • Emergency lighting

2V 2000 AH 2v Lead Acid Cell , Vrla Lead Acid Battery Low Self Discharge Rate

  • Complied standards
    • IEC 60896-21/22
    • GB/T19638
    • JIS C8704
    • BS6290 part 4

  • Management and Product Certificates
    • ISO9001:2015
    • ISO14001:2015
    • OHSAS18001:2007
    • CE Certificate

  • Product Specification​

Nominal Voltage (V) 2
Designed Floating Life (25℃) 12 Years
Nominal Capacity (25℃) 2000Ah@ C10 (to 1.80Vpc)
Dimension (mm) L170mm x W105mm x H340mm
Approx. Weight 13.6 kg (30.00 lbs)
Terminal Type Female Copper Insert M8
Internal Resistance ≤ 0.75 Ohm (fully charged)
Max. Charge Current 50 A
Max. Discharge Current(5S) 1400 A
Short Circuit Current 2800 A
Self Discharge Approx. 2.5% per month @ 20℃
Ambient Temperature Discharge: -20~55°C
Charge: -20~50 C
Storage: -20~45 C
Float Charge Voltage 2.25V/cell@25℃
Equalize Charge Voltage 2.35V/cell@25℃
Container Material ABS(UL94-V0 optional)

  • Battery Dimension
    • High cycle performance: up to 400 ~ 600 cycle at 100%DOD

2V 2000 AH 2v Lead Acid Cell , Vrla Lead Acid Battery Low Self Discharge Rate

  • Performance Curves
    • Cyclic Characteristics

High cycle performance: up to 550 cycle at 80%DOD

2V 2000 AH 2v Lead Acid Cell , Vrla Lead Acid Battery Low Self Discharge Rate

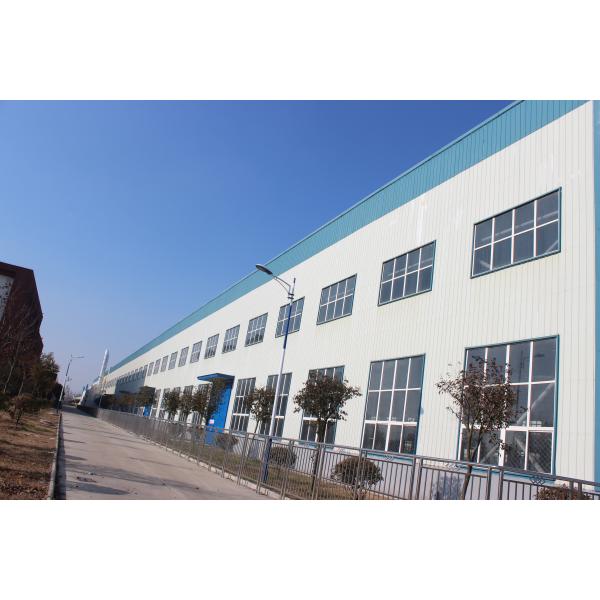

  • Factory Overview

2V 2000 AH 2v Lead Acid Cell , Vrla Lead Acid Battery Low Self Discharge Rate

2V 2000 AH 2v Lead Acid Cell , Vrla Lead Acid Battery Low Self Discharge Rate
