2V 3000AH AGM Sealed Lead Acid Battery High Energy Density For General Purpose
2V 3000AH AGM Sealed Lead Acid Battery High Energy Density For General Purpose
Specifications
Brand Name :
HRESYS
Model Number :
VHR 2GT3000
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Internal Resistance :
≤ 0.75 Ohm (fully charged)
Product Name :
2 V Lead-acid Batteries
Weight :
13.6 kg (30.0 lbs)
Dimension :
L170mm x W105mm x H340mm
Application :
General Use
Capacity :
3000 Ah
Nominal Voltage (V) :
2
Float Charge Voltage :
2.25 V/cell @25℃
Description

2V 200 AH Top Terminal VRLA AGM Battery for General Purpose, L170mm x W105mm x H340mm

  • Product Overview

HRESYS General Purpose AGM Battery was defined as GT series battery. Certainly, GT series battery was designed by AGM ( Absorbed Glass Mat ), it has high energy density and high reliability performance, highly suited for telecommunication, utilities, emergency

light systems, UPS systems, security and alarm systems, and etc.

  • Features and Benefits
    • Valve Regulated Lead Acid Battery with AGM technology
    • High energy density and high reliability performance
    • It’s designed to operate for up to 12 years at 25°C on the basis of accelerated tests.
    • Standard sizes design
    • Wide operation temperature Range, low self-discharge rate,
    • Self-regulating pressure relief valve with flame arrester

  • Applications
    • Electric Tools and Toys
    • Uninterrupted Power Supply(UPS)
    • Emergency Power Supply
    • Cable Television

  • Complied standards
    • IEC 60896-21/22
    • GB/T19638
    • JIS C8704
    • BS6290 part 4

  • Management and Product Certificates
    • ISO9001:2015
    • ISO14001:2015
    • OHSAS18001:2007
    • CE Certificate

  • Product Specification​

Nominal Voltage (V) 2
Designed Floating Life (25℃) 12 Years
Nominal Capacity (25℃) 3000Ah@ C10 (to 1.80Vpc)
Dimension (mm) L170mm x W105mm x H340mm
Approx. Weight 13.6 kg (30.00 lbs)
Terminal Type Female Copper Insert M8
Internal Resistance ≤ 0.75 Ohm (fully charged)
Max. Charge Current 50 A
Max. Discharge Current(5S) 1400 A
Short Circuit Current 2800 A
Self Discharge Approx. 2.5% per month @ 20℃
Ambient Temperature Discharge: -20~55°C
Charge: -20~50 C
Storage: -20~45 C
Float Charge Voltage 2.25V/cell@25℃
Equalize Charge Voltage 2.35V/cell@25℃
Container Material ABS(UL94-V0 optional)

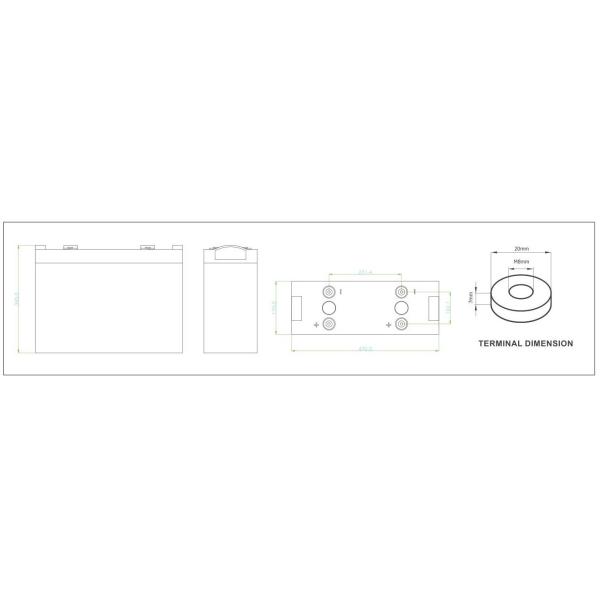

  • Battery Dimension
    • High cycle performance: up to 400 ~ 600 cycle at 100%DOD

2V 3000AH AGM Sealed Lead Acid Battery High Energy Density For General Purpose

  • Performance Curves

2V 3000AH AGM Sealed Lead Acid Battery High Energy Density For General Purpose
