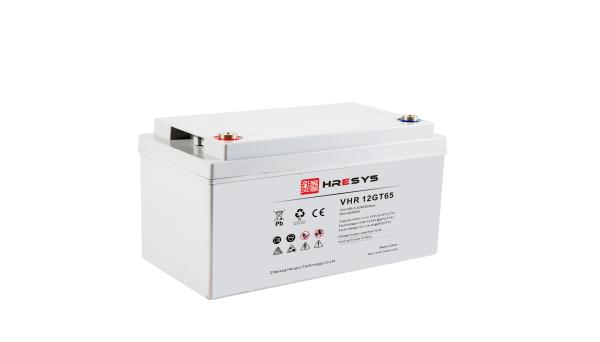

12 V 65 AH Top Terminal VRLA AGM Battery for General Purpose ， L330mm x W171mm x H170mm
12 V 65 AH Top Terminal VRLA AGM Battery for General Purpose ， L330mm x W171mm x H170mm
Specifications
Brand Name :
HRESYS
Model Number :
VHR 12GT65
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
12 V Lead-acid Batteries
Application :
General Use
Capacity :
65 Ah
Nominal Voltage (V) :
12
Float Charge Voltage :
13.6V @25℃
Internal Resistance :
≤ 0.062 Ohm (fully charged)
Weight :
20.5 kg (45.2 lbs)
Dimension :
L330mm x W171mm x H170mm
Description

12 V 50 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W171mm x H170mm

  • Product Overview

HRESYS Top Terminal VRLA AGM battery GT series designed for general purpose application use with 10 years design life. With our advanced manufacturing technique and industry scale, GT series has high energy density and high reliability performance, which is highly suited for UPS systems, security and alarm systems, telecommunication, utilities, emergency light systems,etc.

  • Features and Benefits​
  1. 12V series available from 7Ah to 250Ah
  2. Maintenance-free operation and non-leakage
  3. ABS material increase the strength of battery container
  4. Flexible design for multiple installation space
  5. Low self-discharge rate

  • Applications
  1. Electric Tools and Toys
  2. Uninterrupted Power Supply(UPS)
  3. Emergency Power Supply
  4. Cable Television

  • Working Scenarios
  1. Backup time normally doesn’t exceed 2 hours
  2. Batteries are mainly working as backup power with not many cycles
  3. Shadow cyclic use and cycles not many

12 V 65 AH Top Terminal VRLA AGM Battery for General Purpose ， L330mm x W171mm x H170mm

  • Product Specification
Nominal Voltage (V) 12
Designed Floating Life (25℃) 10 Years
Nominal Capacity (25℃) 38 Ah@ C10 (to 1.80Vpc)
Dimension (mm) L330mm x W171mm x H170mm
Approx. Weight 12.2 kg (26.9 lbs)
Terminal Type Female Copper Insert M6
Internal Resistance Approx. 0.0095m Ohm (fully charged @25℃)
Max. Charge Current 16 A
Max. Discharge Current(5S) 650 A
Short Circuit Current 1900 A
Self Discharge Approx. 3% per month @ 20℃
Ambient Temperature Discharge: -20~55℃
Charge: -20~50℃
Storage: -20~45℃
Float Charge Voltage 13.6V/block @25℃
Equalize Charge Voltage 14.4V/block @25℃
Container Material ABS (UL94-V0 optional)

  • Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 PART4

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

  • Battery Dimension

12 V 65 AH Top Terminal VRLA AGM Battery for General Purpose ， L330mm x W171mm x H170mm

  • Performance Curves

12 V 65 AH Top Terminal VRLA AGM Battery for General Purpose ， L330mm x W171mm x H170mm
