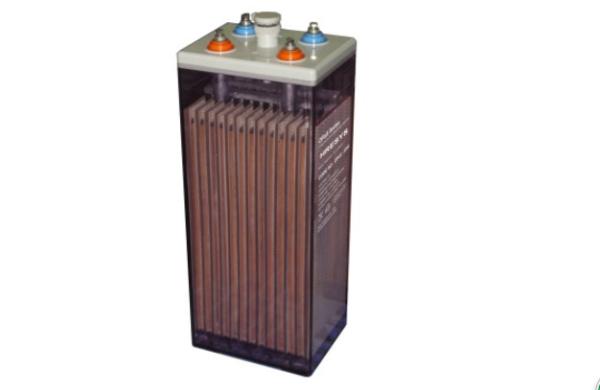

2 V 1500 AH Tubular Flooded Batteries for Utility, UPS, Telecom and Renewable Energy, 12OpzS1500, L275mm×W210mm×H828mm
2 V 1500 AH Tubular Flooded Batteries for Utility, UPS, Telecom and Renewable Energy, 12OpzS1500, L275mm×W210mm×H828mm
Specifications
Brand Name :
HRESYS
Model Number :
12OpzS1500
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
2 V Tubular Flooded Batteries
Capacity :
1500 Ah
Float Charge Voltage :
2.23V @25 C (-3mV / C/ cell)
Approx. Weight :
Without electrolyte: 77Kg (169.8 lbs) With electrolyte: 107Kg (235.9 lbs)
Application :
Utility, UPS, Telecom and Renewable Energy
Nominal Voltage (V) :
2
Internal Resistance :
Approx. 0.26 mOhm (fully charged @ 20°C)
Dimension :
L275mm×W210mm×H828mm
Description

2 V 1500 AH Tubular Flooded Batteries for Utility, UPS, Telecom and Renewable Energy, 12OpzS1500, L275mm×W210mm×H828mm

  • Product Overview

Hresys OPzS Flooded Classic batteries provide maximum efficiency per discharge-charge cycle, and proven reliability in remote, high temperature, or unstable power network installations.

  • Features and Benefits​
  • Special filter unit for acid fog proof
  • Less sensitive to working environment
  • Transparent containers for easy visual monitoring
  • DIN40736-1 standard compliance
  • Low maintenance requirements
  • Better current conductivity
  • Increased robustness
  • Increased durability

  • Product Specification​

Nominal Voltage (V) 2
Nominal Capacity (25 C) 1500 Ah @ C10 (to 1.80Vpc)
Dimension (mm) L275mm×W210mm×H828mm
Approx. Weight

Without electrolyte: 77Kg (169.8 lbs)

With electrolyte: 107Kg (235.9 lbs)
Terminal Type Female Copper Insert M8 (torque:10~12N.m)
Internal Resistance Approx. 0.26 mOhm (fully charged @ 20°C)
Max. Charge Current 375 A
Self Discharge Approx. 4% per month @ 20°C
Ambient Temperature Discharge: -20~60°C
Charge: -20~55 °C
Storage: -15~45°C
Float Charge Voltage 2.23V @25 C (-3mV / C/ cell)
Equalize Charge Voltage 2.35V @25 C
Container Material SAN

  • Applications

  • UPS system
  • Utilities
  • Telecom
  • Motive power applications

  • Complied standards

  • IIEC 60896-11
  • DIN40736
  • IEC61427
  • Eurobat guide, long life
  • BS6290 part 4

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

  • Battery Dimension

2 V 1500 AH Tubular Flooded Batteries for Utility, UPS, Telecom and Renewable Energy, 12OpzS1500, L275mm×W210mm×H828mm

  • Performance Curves

2 V 1500 AH Tubular Flooded Batteries for Utility, UPS, Telecom and Renewable Energy, 12OpzS1500, L275mm×W210mm×H828mm
