GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna
GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna
GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna
GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna
GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna
GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna
GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna
GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10819-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
1575±5MHz
VSWR :
<2.0
LNA Gain :
32dBi
Impedance :
50
Description

Satellite Positioning Antenna GPS Timing Antenna Marine Antenna 32dBi

1. Specification

A. Electrical Characteristics
Frequency 1575±5MHz
Peak Gain 15±2dBi@Fc
Impedance 50Ohm
Polarization RHCP
Axial Ratio ≤5 dB
F/B >13
Azimuth Coverage 360°
Phase-center accuracy ≤2.0mm
B. LNA and Filter Electrical Properties
LNA Gain 32±2dBi(Typ.@25℃)
Group Delay variation ≤5ns
Noise Figure ≤2.7dB@25℃,Typ.(Pre-filtered)
In-Band Flatness (dB) ＜1 (1575.42MHz±1MHz)
Out-of-Band Suppression (dBc) 12(1575±30MHz)
Output VSWR ≤2.5 : 1Typ. 3.5 : 1 Max
Operation Voltage 3.3-6 V DC
Operation Current ≤45mA
C. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ96x257±3mm
Radome material ABS
Waterproof IP67
Weight 0.75Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna

2.2 LNA Gain:

Frequency (MHz) Gain (dBi)
1570 31.8
1571 31.3
1572 31.5
1573 31.7
1574 31.8
1575 31.9
1576 31.8
1577 31.5
1578 32.1
1579 32.3
1580 32.6

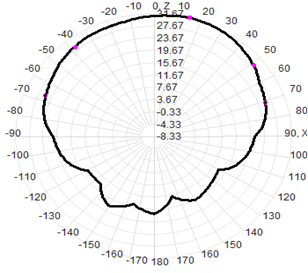

2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
1570MHz GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna
1575MHz GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna
1580MHz GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna GPS Timing Antenna Marine Antenna 32dBi High Precision Gps Antenna
