Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo
Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo
Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo
Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo
Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo
Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10615-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
1164-1290MHz / 1525-1615MHz
VSWR :
<2.0
LNA Gain :
40dBi
Impedance :
50
Description

Satellite Positioning Antenna Four-Star Multi-Band Survey antenna 40dBi GPS GLONASS Beidou Galileo

1. Specification

A. Electrical Characteristics
Frequency 1164-1290MHz, 1525-1615MHz
Supported Positioning signal bands

GPS: L1/L2/L5

BDS: B1/B2/B3

GLONASS: G1/G2/G3

Galileo: E1/E5a/E5b/E6

L-Band
Peak Gain ≥5dBi@Fc
Impedance 50Ohm
Polarization RHCP
Axial Ratio ≤ 1.5dB
Azimuth Coverage 360°
Phase-center accuracy ≤2.0mm
Phase-center repeatability ≤1.0mm
B. LNA and Filter Electrical Properties
LNA Gain 40±2dBi(Typ.@25℃)
Group Delay variation ≤10ns
Noise Figure ≤2.0dB@25℃,Typ.(Pre-filtered)
Output VSWR ≤1.8 : 1Typ. 2.0 : 1 Max
Operation Voltage 3-16 V DC
Operation Current ≤45mA
C. Material & Mechanical Characteristics
Connector Type TNC connector
Dimension Φ152x68mm
Radome material PC+ABS
Waterproof IP67
Weight 0.35Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo

2.2 LNA Gain:

Frequency (MHz) Gain (dBi) Frequency (MHz) Gain (dBi)
1160.0 29.60 1525.0 34.00
1165.0 31.85 1530.0 34.83
1170.0 33.50 1535.0 35.80
1175.0 34.67 1540.0 36.93
1180.0 35.67 1545.0 37.57
1185.0 36.57 1550.0 37.82
1190.0 37.53 1555.0 38.35
1195.0 38.16 1560.0 38.73
1200.0 38.52 1565.0 38.65
1205.0 38.90 1570.0 38.07
1210.0 39.35 1575.0 37.78
1215.0 39.81 1580.0 37.65
1220.0 40.11 1585.0 37.40
1225.0 40.23 1590.0 36.95
1230.0 40.09 1595.0 36.66
1235.0 39.62 1600.0 36.43
1240.0 39.00 1605.0 35.95
1245.0 38.18 1610.0 35.33
1250.0 37.34 1615.0 34.80
1255.0 36.31
1260.0 35.35
1265.0 34.22
1270.0 33.20
1275.0 32.14
1280.0 31.14
1285.0 30.01
1290.0 28.58

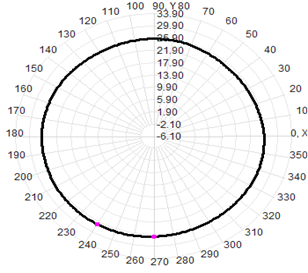

2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
1160MHz Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo
1220MHz Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo
1290MHz Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo
3D 2D-Horizontal 2D-Vertical
1525MHz Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo
1565MHz Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo
1615MHz Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo Four-Star Multi-Band Survey Antenna Multiband 40dBi GPS GLONASS Beidou Galileo
