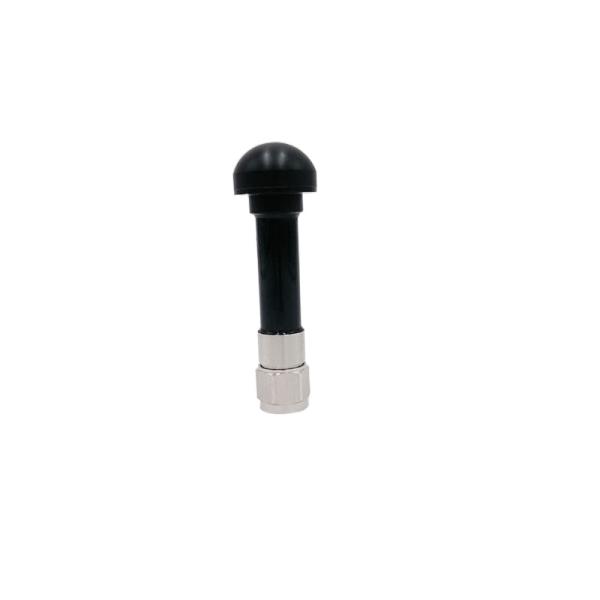

Satellite Positioning Antenna Outdoor IP67 GPS GNSS Beidou Antenna 1559-1606 MHz 20 dBi

1. Specification

A. Electrical Characteristics
Frequency 1559-1606MHz
VSWR <2.0
Peak Gain 0dBi
Impedance 50Ohm
Polarization RHCP
B. LNA and Filter Electrical Properties
Frequency 1559-1606MHz
VSWR <2.0
LNA Gain 20dBi
Impedance 50Ohm
Polarization RHCP
10dB Bandwidth ±5MHz
Noise Figure ≤1.5dB
In-Band Flatness (dB) ±1dB
Operation Voltage 3-5 V DC
Operation Current ≤5mA
C. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ16x100mm
Radome material Fiberglass
Waterproof IP67
Weight 0.065Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

External Gnss Antenna IP67 GPS GNSS Beidou Antenna Satellite System 1559-1606MHz 20 DBi

2.2 LNA Gain:

Frequency (MHz) Gain (dBi) Frequency (MHz) Gain (dBi)
1559.0 19.91 1583.0 20.36
1560.0 19.94 1584.0 20.43
1561.0 19.77 1585.0 20.59
1562.0 20.03 1586.0 20.44
1563.0 19.85 1587.0 20.39
1564.0 19.79 1588.0 20.40
1565.0 19.62 1589.0 20.43
1566.0 19.65 1590.0 20.47
1567.0 19.47 1591.0 21.23
1568.0 19.60 1592.0 21.82
1569.0 19.77 1593.0 22.19
1570.0 20.06 1594.0 22.25
1571.0 20.25 1595.0 22.07
1572.0 20.39 1596.0 21.80
1573.0 20.61 1597.0 21.40
1574.0 20.76 1598.0 20.91
1575.0 20.79 1599.0 20.45
1576.0 20.64 1600.0 20.07
1577.0 20.57 1601.0 20.12
1578.0 20.39 1602.0 20.17
1579.0 20.41 1603.0 20.34
1580.0 20.40 1604.0 20.55
1581.0 20.24 1605.0 20.82
1582.0 20.29 1606.0 20.76
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
1559MHz External Gnss Antenna IP67 GPS GNSS Beidou Antenna Satellite System 1559-1606MHz 20 DBi External Gnss Antenna IP67 GPS GNSS Beidou Antenna Satellite System 1559-1606MHz 20 DBi External Gnss Antenna IP67 GPS GNSS Beidou Antenna Satellite System 1559-1606MHz 20 DBi
1561MHz External Gnss Antenna IP67 GPS GNSS Beidou Antenna Satellite System 1559-1606MHz 20 DBi External Gnss Antenna IP67 GPS GNSS Beidou Antenna Satellite System 1559-1606MHz 20 DBi External Gnss Antenna IP67 GPS GNSS Beidou Antenna Satellite System 1559-1606MHz 20 DBi
1575MHz External Gnss Antenna IP67 GPS GNSS Beidou Antenna Satellite System 1559-1606MHz 20 DBi External Gnss Antenna IP67 GPS GNSS Beidou Antenna Satellite System 1559-1606MHz 20 DBi External Gnss Antenna IP67 GPS GNSS Beidou Antenna Satellite System 1559-1606MHz 20 DBi
