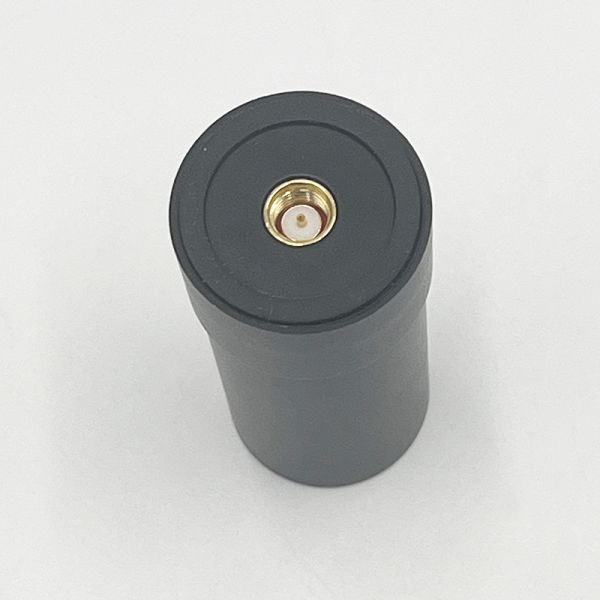

Multi-band GNSS Antenna with 35dBi LNA Gain and IP67 Waterproof for UAV and Portable Devices
Multi-band GNSS Antenna with 35dBi LNA Gain and IP67 Waterproof for UAV and Portable Devices
Multi-band GNSS Antenna with 35dBi LNA Gain and IP67 Waterproof for UAV and Portable Devices
Multi-band GNSS Antenna with 35dBi LNA Gain and IP67 Waterproof for UAV and Portable Devices
Multi-band GNSS Antenna with 35dBi LNA Gain and IP67 Waterproof for UAV and Portable Devices
Multi-band GNSS Antenna with 35dBi LNA Gain and IP67 Waterproof for UAV and Portable Devices
Multi-band GNSS Antenna with 35dBi LNA Gain and IP67 Waterproof for UAV and Portable Devices
Multi-band GNSS Antenna with 35dBi LNA Gain and IP67 Waterproof for UAV and Portable Devices
Multi-band GNSS Antenna with 35dBi LNA Gain and IP67 Waterproof for UAV and Portable Devices
Multi-band GNSS Antenna with 35dBi LNA Gain and IP67 Waterproof for UAV and Portable Devices
Specifications
Brand Name :
Leenz
Model Number :
LZANT-12049-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
1197-1278MHz / 1559-1606MHz
VSWR :
<2.0
LNA Gain :
35dBi
Impedance :
50
Description

It is suitable for occasions where there are control requirements for volume and weight, such as small drones, micro RTKS, sub-meter handheld devices/tablets and other portable devices

1. Specification

A. Electrical Characteristics
Frequency 1197-1278MHz; 1559-1606MHz
Supported Positioning signal bands

GPS: L1/L2

BDS: B1/B2/B3

GLONASS: G1/G2

Galileo: E1/E5b
Peak Gain ≥2dBi
Impedance 50Ohm
Polarization RHCP
Axial Ratio ≤1.5 dB
Azimuth Coverage 360°
B. LNA and Filter Electrical Properties
LNA Gain 35dB(Typ.@25℃)
Noise Figure ≤1.5dB@25℃,Typ.(Pre-filtered)
Output VSWR ≤2.0 : 1Typ. 2.5 : 1 Max
Operation Voltage 3-16 V DC
Operation Current ≤45mA
C. Material & Mechanical Characteristics
Connector Type SMA -J
Dimension Φ28x60mm
Radome material PC+ABS
Waterproof grade IP67
Weight 0.015Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Humidity ≤95%

2. Antenna - S Parameter Test Data

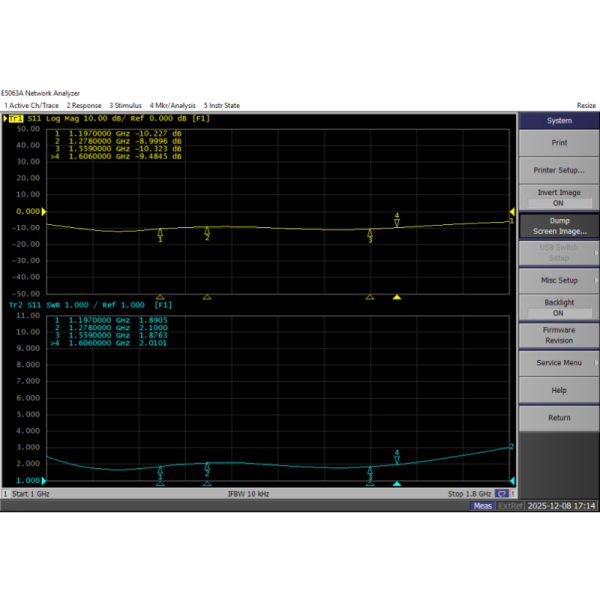

2.1 VSWR
