The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting
The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting
The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting
The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting
The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting
The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting
The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting
The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10261-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
1558-1605MHz
VSWR :
<2.0
Gain :
2dBi
Impedance :
50
Description

The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting

1. Specification

A. Electrical Characteristics
Frequency 1558-1605MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 2dBi
Efficiency ≈75%
Polarization Linear
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N-J connector
Dimension Φ22.5*195mm
Weight 0.07Kg
Antenna Color Black
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

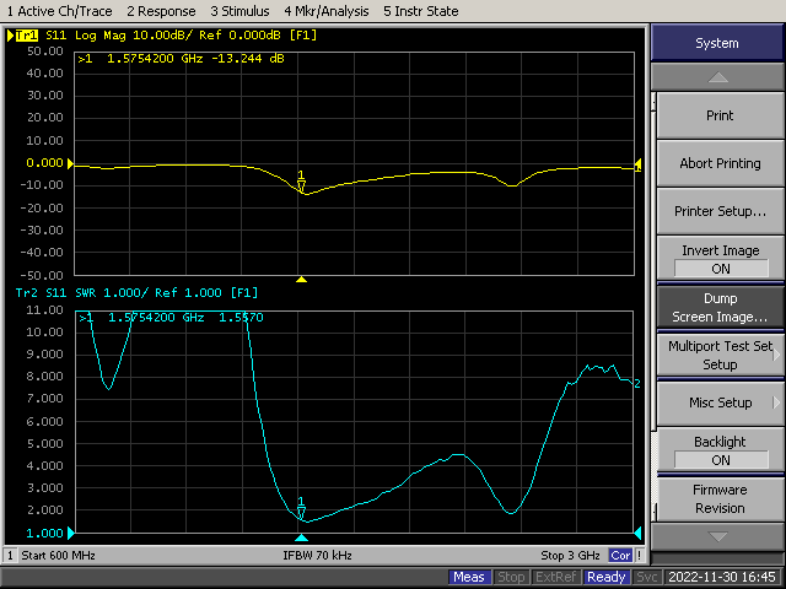

2.1 VSWR

The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting


2.2 Gain:


Frequency (MHz)

1570.0

1571.0

1572.0

1573.0

1574.0

1575.0

1576.0

1577.0

1578.0

1579.0

1580.0

Gain (dBi)

1.92

1.99

2.09

2.20

2.31

2.40

2.40

2.37

2.34

2.31

2.26

Efficiency (%)

73.22

73.96

75.09

76.48

77.92

79.14

78.65

77.81

76.77

75.76

74.95




2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical
1558MHz The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting
1570MHz The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting
1605MHz The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting The 1.5G 1500-1600M BD+GPS omnidirectional passive 2dbi fishtail waterproof antenna can be used for both receiving and transmitting
