SMD3535 Black Mobile Led Screen Hire , Vehicle Led Display Long Lifespan
SMD3535 Black Mobile Led Screen Hire , Vehicle Led Display Long Lifespan
SMD3535 Black Mobile Led Screen Hire , Vehicle Led Display Long Lifespan
SMD3535 Black Mobile Led Screen Hire , Vehicle Led Display Long Lifespan
SMD3535 Black Mobile Led Screen Hire , Vehicle Led Display Long Lifespan
SMD3535 Black Mobile Led Screen Hire , Vehicle Led Display Long Lifespan
SMD3535 Black Mobile Led Screen Hire , Vehicle Led Display Long Lifespan
SMD3535 Black Mobile Led Screen Hire , Vehicle Led Display Long Lifespan
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW- FO 10
Certification :
RoHS,FCC,CCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs/month
Delivery Time :
10~18 working days after deposit received
Packaging Details :
Plywood case
Maximum power consumption :
<800W/m2
Working voltage :
AC220V±10%
Data transafer method :
RJ45
Working humidity :
10% ~ 90%
Best viewing angle :
140 /140
Brightness :
>7500cd/m2
LED component :
SMD3535 black
Size of module :
320mm x 160mm
Description

SMD3535 black Truck Mobile LED Display P10 outdoor full color 1/2 scan high refresh rate .

Features:

  • Aluminum Frame or steel cabinet is used to hold up module boards/panels;
  • Good Raw Material:
  • The raw material of all of the outdoor products including LED chips, mask, glue and steel cabinets have the ability of enduring high temperature and high humidity,
  • and being anti-UV, waterproof, anticorrosion and antirust. High strictly selected LED chips to ensure the long lifetime and high brightness of our LED display system;
  • Durable fresh color and High brightness；
  • Long Lifespan
  • LED world chooses high quality components patent circuit board design for display to ensure the using-life;
  • Rear serviceable；
  • Anti-UV, anti-oxidation module prevents from deformation；
  • Fanless and IP65 waterproof design of cabinet greatly protect cabinet in any outdoor environment;

​Parameter:

P10 Outdoor full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component SMD3535 black
Size of module 320mm x 160mm
Resolution of module 32x16
Size of cabinet 960mmx 960mm /1280mm x 960mm
Resolution of cabinet 96x96 / 128 x 96
Material of Cabinet Iron with back doors
Weight of Cabinet <60KGS
Brightness >7500cd/m2
Density 10000dots/m2
Best viewing angle 140 /140
Best viewing distance 10-150M
Maximum power consumption <800W/m2
Average power consumption <350W/m2
Driving method 1/2 scan
Control method Synchronization
Gray scale 65536
Colors 256 x 256 x 256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC TUV-CE ETL etc.
Effectivce Communication Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay) Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Applications:

It is designed for mobile use postal offices, traffic Control,commercial buildings,High end hotel,commercial building,Offices,TV Shows,outside parking lots,Amusement parks and so on .

Our service:

  • Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees;
  • Help you to choose suitable products within budget with most economy benefit;
  • OEM service offered;

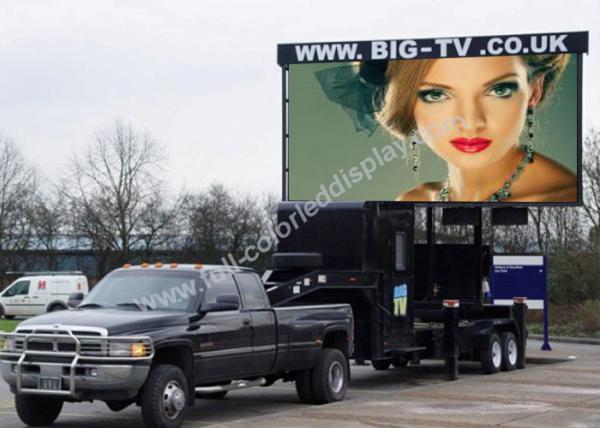

Project case:

SMD3535 Black Mobile Led Screen Hire , Vehicle Led Display Long Lifespan

Package:

SMD3535 Black Mobile Led Screen Hire , Vehicle Led Display Long Lifespan
