Mobile Advertising Led Display P10
Mobile Advertising Led Display P10
Mobile Advertising Led Display P10
Mobile Advertising Led Display P10
Mobile Advertising Led Display P10
Mobile Advertising Led Display P10
Mobile Advertising Led Display P10
Mobile Advertising Led Display P10
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW- FO 10
Certification :
RoHS,FCC,CCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs/month
Delivery Time :
10~18 working days after deposit received
Packaging Details :
Plywood case
Brightness :
>7500cd/Sq.m
Gray scale :
65536
MTBF :
10,000 hours
Pixel pitch :
10mm
Data transafer method :
RJ45
Uniformity :
97%
Refresh frequence :
>1800Hz
Pratical standard :
CCC TUV-CE ETL etc.
Description

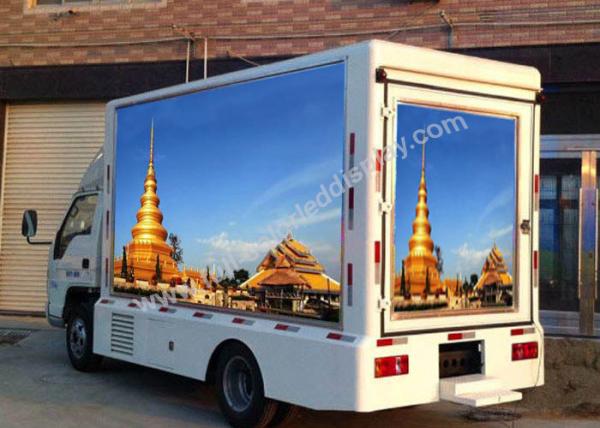

P10 Truck Mobile LED Display outdoor 7500nits wide viewing angle IP65 waterproof .

Features:

  • RGB deep gray processing, color is rich and exquisite, natural picture;
  • Frosted black LED and light absorbing corrugated mask,make the screen can show vivid images even in bright environment;
  • Front and rear maintenance: modules can be removed from front and back side, fast maintenance;
  • Convenient maintenance;
  • Black body led lamps confirm the high brightness,high contrast rate;
  • High ingress protection as IP65, waterproof, apply for outdoor using and have longer life span;



​Parameter:

P10 Outdoor full Color LED Screen Specification
Pixel pitch10mm
Pixel Configuration1R1G1B
LED componentDIP346
Size of module160mm x 160mm
Resolution of module16x16
Size of cabinet960mmx 960mm /1280mm x 960mm
Resolution of cabinet96x96 / 128 x 96
Material of CabinetIron with back doors
Weight of Cabinet<60KGS
Brightness>7500cd/Sq.m
Density10000dots/sq.m
Best viewing angle140 /140
Best viewing distance10-150M
Maximum power consumption<800W/sq.m
Average power consumption<300W/sq.m
Driving method1/4 scan
Control methodSynchronization/Asychronization
Gray scale65536
Colors256*256*256
Color temperature3200-9300k
Uniformity97%
Working voltageAC220V±10%
Working temperature-20ºC~+50ºC±10%
Working humidity10% ~ 90%
MTBF10,000 hours
Frame frequence50/60Hz
Refresh frequence>1800Hz
IP gradeIP65
Life Span100,000 hours
Data transafer methodRJ45
Pratical standardCCC TUV-CE ETL etc.
Effectivce CommunicationUnshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay)Single-mode optic fiber: 10KM
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Applications:
It is designed for mobile use stadiums,post office,traffic display,conference,large exhibition hall,high-speed rail station,parking garage,athletic contest,backgound and so on.

Our service:

  • Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on;
  • We offered training to our customer who includes operating and maintenance of our products;
  • Design the framework structure to install our led products with technical drawing;


Project case:
Mobile Advertising Led Display P10

Package:
Mobile Advertising Led Display P10
