Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW- FO 12
Certification :
RoHS,FCC,CCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs/month
Delivery Time :
10~18 working days after deposit received
Packaging Details :
Plywood case
Temperature :
Working: -35~+85
Control method :
Synchronization
Driving device :
1/4scanning
Video signal :
PAL/NTSC
Display mode :
1024*768
Brightness adjustment :
256 levels of each color(R/G/B)by software
Operating system :
WIN98/2000/NT/XP
Working voltage :
AC220V/110V± 10%
Description

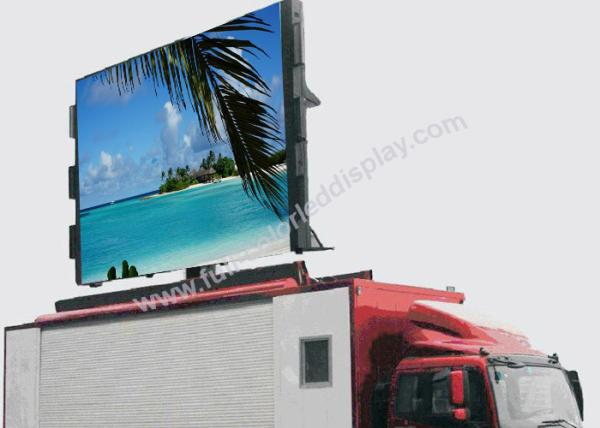

P12 outdoor full color Truck Mobile LED Display screen 2R1G1B 960x960 mm cabinet .

Features:

  • outdoor using and have longer life span;
  • It can be combined with the old version of cabinet which solve further problems you might have. (Only except the cables between cabinets require to be lengthened);
  • High density: pixel spacing is 6.944 mm, the unit displays high resolution, applicable to the family the high-definition pictures showed;
  • Product has strong ability to anti-surge, anti-static and anti lightning stroke;
  • Special Front maintenance/Back maintenance design, Modules, power supplies, receiving cards can be taken out/assemble from front/back side;
  • Revolutionary TEX Series VS Traditional outdoor display;

​Parameter:

Description Technical parameter
Unit module Module size 192*192mm
Pixel pitch 12mm
Pixel density 6944dots/m2
Pixel configuration 2R1G1B
Led specification Φ 3ellipse
Pixel resolution W: 16dots*H: 16dots
Cabinet Dimension 960mm*960mm*170mm
Quantities of module 25pcs
Power supply 5pcs
Thermal discharge Fan*2pcs
Total weight 60kg
Best viewing angle 10-150m
Temperature Storage: -35~+85
Working: -35~+85
Thickness 17cm can adjustable
Remarks: cabinet size can changed, upon project need.
Power Working voltage AC220V/110V± 10%
Average power consumption 250-400W
Max. Power consumption ≤ 1000W/sqm
Current ≤ 20mA(single LED)
Control system CPU Pentium4 or above
Operating system WIN98/2000/NT/XP
Control method Synchronization
Main technical parameter Driving device 1/4scanning
Drive type Constant Current driver IC
Refresh frequency ≥ 400Hz
Grey scale/colors 256 levels of each color(R/G/B)/16.7M color
Brightness of white balance More than 8000cd/sqm
Brightness adjustment 256 levels of each color(R/G/B)by software
Operating ambient humidity 10%--95%
Video signal PAL/NTSC
Control system DVI display card+full color controller card
MTBF ≥ 10, 000hours
Life span ≥ 100, 000hours
Flatness Tolerance of interpixel ≤ 0.3mm
Tolerance of modules clearance≤ 0.6mm
Power switch Automatic switch
Display mode 1024*768
Communication distance Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
Software LED media player
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Applications:

It is designed for rental use parking lot,stores country club,advertising,Amusement parks,monitoring center,massage room,plaza,entertainment venues and so on .

Our service:

  • Training in our factory offered FOC;
  • Top quality+Reasonable price+Responsible After Service=Successful & Win;
  • Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on;

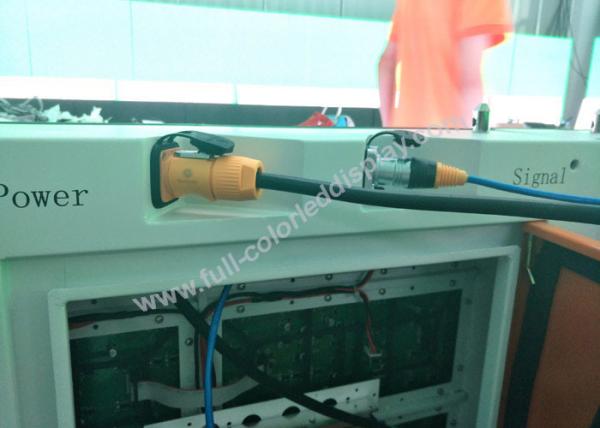

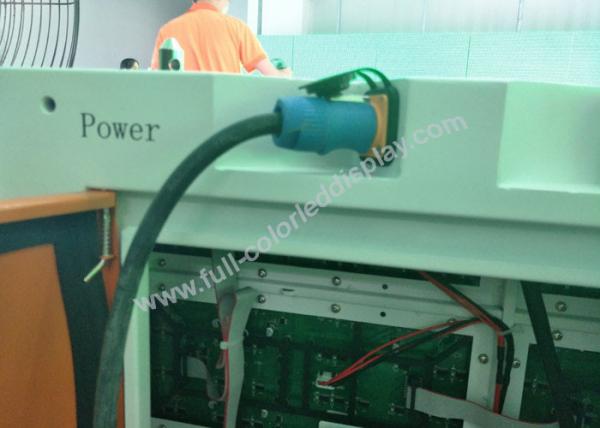

Product detail:

P12 Mobile Advertising Led Display Outdoor With RoHS / FCC / CCC / CE

Package:

P12 Mobile Advertising Led Display Outdoor With RoHS / FCC / CCC / CE
