Outdoor Rental LED Display Curved Led Screen For Commercial Building
Outdoor Rental LED Display Curved Led Screen For Commercial Building
Outdoor Rental LED Display Curved Led Screen For Commercial Building
Outdoor Rental LED Display Curved Led Screen For Commercial Building
Outdoor Rental LED Display Curved Led Screen For Commercial Building
Outdoor Rental LED Display Curved Led Screen For Commercial Building
Outdoor Rental LED Display Curved Led Screen For Commercial Building
Outdoor Rental LED Display Curved Led Screen For Commercial Building
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-RO 6.25
Certification :
CE,RoHS,FCC,CCC
Place of Origin :
China
MOQ :
1 square meter
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000 sqm/month
Delivery Time :
12~20 working days after deposit received
Packaging Details :
Carton/Plywood case/Flight case etc.
Cabinet Weight :
12KG/PCS
Cabinet Size :
500 mm x 500mm or 500mm x 1000mm
Input Voltage :
AC220V/50Hz or AC110V/60Hz
Frame Frequency :
60 Hz
Defects Rate :
≤0.00001
led lamp :
SMD3535
Driving Method :
1/14constant current
Description

indoor&outdoor rental 500x500mm-P3.91,P4.81,P5.95,...

Curved indoor outdoor arc rental led video wall screen P3.91 / P4.81 / P5.95 / P6.25.

Product Description:

  • LED screen size is flexible and adjusted freely with same cabinets;

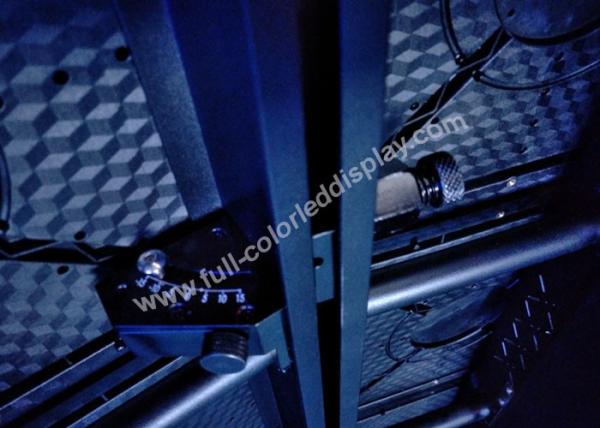

  • radian dial lock design, joining together 15 degrees - 15 degrees of arbitrary curved;
  • Cabinet size:500mmW*1000mmH, thickness around 70mm, only about 12Kg;
  • This cabinet can be used both outdoors and indoors;
  • The 3 in 1 intergrated back of power supply,receving card and HUB board makes replacement simply,with simple plug;
  • Achieve shaped and curved install function. Could be assembled with more different shapes to meet the different install design requirements of different application areas;
  • The shapes can be outer curved ,inner curved ,flat and waved by using our specially designed angle regulator;
  • The resolution is 43264 pixels per square meter so definition is high enough for showing video, images and it's clear enough when viewed in short distance;
Application:

Suitable for plaza,commercial building,waiting area,Showrooms,hotels,conferance center, commercial streets,Offices,ticket center,TV Shows,bus station,stadiums,Campus,athletic contest,
stores Square,exhibition,leisure square,entertainment TV,Celebration,station waiting area and so on.

Parameter:

1 Pixel Pitch 4.81 mm
2 Pixel Configuration 3 in1, SMD2121
3 Module Resolution 52dots * 52 dots
4 Module Pixles 2704 dots
5 Module Size 250 mm* 250 mm
Cabinet Specification
1 Cabinet Size(WXHXD) 500 Lx 1000 H mm
2 Cabinet Resolution 104 x2088pixels
3 Module Quanity 2*4=8 pcs
4 Cabinet Pixels 21632 dots
5 Pixel Density 43264 dots/m2
6 Average Power Consumption 300 W/m2
7 Max. Power Consumption 750 W/m2
8 Cabinet Material Aluminum
9 Cabinet Weight 12KG/PCS
Screen Parameters
1 led lamp SMD3535
2 Cabinet Size 500 mm x 500mm or 500mm x 1000mm
3 Brightness ≥2500 CD/sqm
4 Brightness(Max./Min.) 1.2:1
5 Driving Method 1/14constant current
6 View Angle Horizontal 140° Vertical 140°
7 Optimal Viewing Distance 4M --50 M
8 Brightness Control Red,Green and Blue 256 Grade/Each
9 Fresh requency > 1920 HZ
10 Frame Frequency 60 Hz
11 Input Voltage AC220V/50Hz or AC110V/60Hz
12 Defects Rate ≤0.00001
13 Power Consumption Max.: 950 W/sqm Average: 350W/sqm
14 screen Weight ≤12 kg/ cabinet
15 MTBF >10,000 hours
16 Life span ≥100,000 hours
17 Module Display Brightness Uniformity <2%
18 Earth Leakage Current < 3mA
19 Protective Grade IP 65
20 Temperature-operating -25ºC~65ºC
21 Humidity-operating 10%~95%
22 Controlling system LINSN Or Nova
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.
Our service:
We promise you more than just two years warranty service;
We offered training to our customer who includes operating and maintenance of our products;
Training in our factory offered FOC;
Warranty: 2 years+modules free if the product was broken,and we will take the half of courier chages;

Product test:

Outdoor Rental LED Display Curved Led Screen For Commercial Building

Package:

Outdoor Rental LED Display Curved Led Screen For Commercial Building
