Die casting Outdoor Rental LED Display for stage performance , Led Screen Hire
Rental P5 led display outdoor description:
Rental P5 led display outdoor specification:
LED module:
| Parameter | P5 |
| Chip | Epstar + Silan chip |
| Chip size | Red 9 mil, Green 12. Blue 12mil |
| Light type | SMD |
| Pixel Pitch | 5mm |
| Module Size | 320mmX160mm |
| Module Resolution | 64 X 32 (dots) |
| Density of pixel | 40000dots/m2 |
| Pixel configuration | 1R1G1B |
| Red wavelength | 625±2nm |
| Green wavelength | 525±2nm |
| Blue wavelength | 470±2nm |
| Colors | 16777216 |

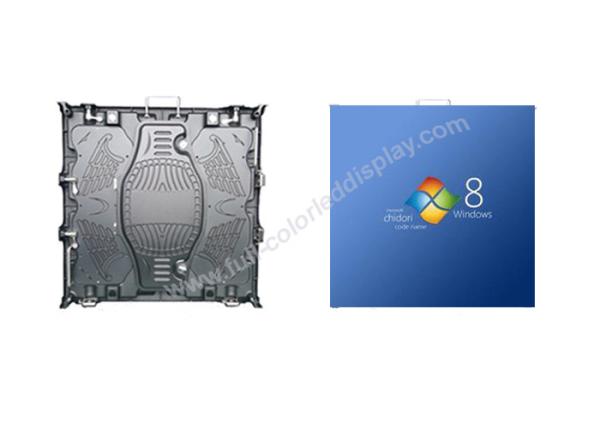

Cabinet:

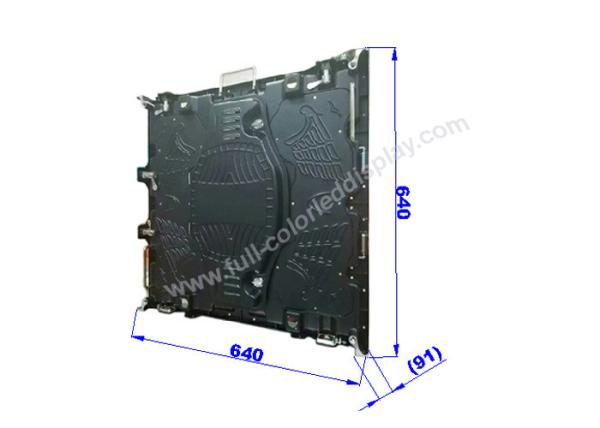

| Cabinet size | 640x640mm |
| Cabinet resolution | 128 dots x 128 dots |
| Cabinet material | die-casting |
Electrcity:
| Best viewing distance | ≥4m |
| viewing angle | 120°/120° |
| Maximum power consumption | 20W |
| Brightness | 2000cd/m2 |
| Gray scale | 14bits per color |
| Color temperature | 6500k |
| Control method | Synchronization or Asynchronization |
| Driving method | 1/16 scanning |
| Frame frequency | 60Hz |
| Refresh frequency | ≥600Hz |
| Working Voltage | DC5V |
| IP grade | IP54 |
| MTBF | More than 8000hours |
| Life Span | 80,000hours |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Why choose us:
FQA:
Question 1:I’m a new comer to the Outdoor Rental LED Panel Screen, can I operate it?
Answer1:There is detailed operation manual in the producing packing. It will show you how to operate it step by step.
When talking about whether it is easy or not, I want to say as long as you can type and move the mouse on a computer, you can operate it. The Outdoor Rental LED Panel Screen operation is much easier than playing a cell phone;
Question2: Why should I do the business with you, but not with other vendors?
Answer2:Hangel Technology has powerful technical team, rich-experienced production management team, skillful workers considerate customer service staff. We are ready to give you reliable products considerate service;
Question3: What about the maintaince for the scoreboard ?
Answer3: 2 Years Warranty .Under the condition of not artificial damage, we will send you the new parts to replace.
Rental P5 led display outdoor Project case:
