Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-RO 8
Certification :
CE,RoHS,FCC,CCC
Place of Origin :
China
MOQ :
1 square meter
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000 sqm/month
Delivery Time :
12~20 working days after deposit received
Packaging Details :
Carton/Plywood case/Flight case etc.
Contrast ratio :
1,000:1
Display refresh rate :
180~3,000Hertz
Red wavelength (dominant) :
620~625nm
Brightness control :
256
Panel weight :
9kg
Dot per panel :
6,400
Mounting system :
Hanging / Fixed
Panel area :
0.4096
Brightness :
5,000 nits
Panel height :
640mm
Description

outdoor rental 640x640mm-P5,P8,P10.pdf

No Fans Design P8 Outdoor Rental LED Display with 640x640mm die-casting thin cabinet

P8 Outdoor Rental LED Display quick detail:

  1. Cabinet size:640x640mm;
  2. Pixel density:15625 dots/square meter;
  3. Stable quality:Opto + Silan chipset;
  4. High quality using MBI5124 or MBI5024.

P8 Outdoor Rental LED Display description:

  1. 8mm outdoor 1R1G1B LED display panel with light weight 640x640 mm die-casting cabinet.
  2. Fanless and IP65 waterproof design of cabinet greatly protect cabinet in any outdoor environment;
  3. Extremely weather-proof, adapt to different kinds of environment;
  4. No any gaps;
  5. Ultra-thin design, handle bar also available;
  6. Made with Die-casting aluminum material,light weight and strong configuration;
  7. Fast lock with precise positioning function to connect left and right cabinets within 10 seconds, preferred for stage rental screen;

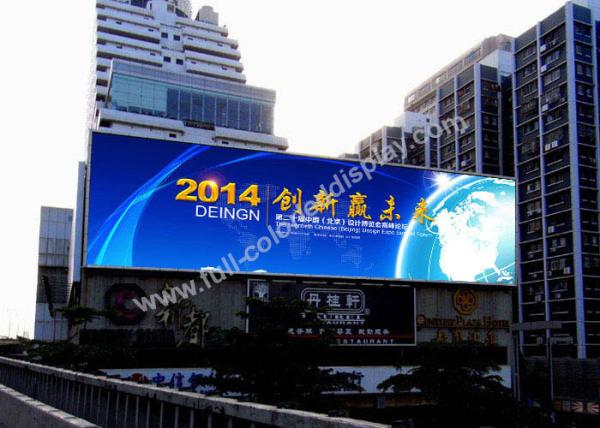

P8 Outdoor Rental LED Display application:

Our full color LED display are widely used in ferry,surrounding,airport,hospital,live meeting,enterprises,enterprise engineering, Stage Performance,insurance company,banquet,touring,gas station,chain shop and so on .

P8 Outdoor Rental LED Display parameter:

Parameter Unit Value
Pitch mm 8
Brightness nits 5,000
Color temperature deg. K 6,500
Viewing angle - Horizontal (50% brightness) deg. 140(-70 ~ +70)
Viewing angle - Vertical (50% brightness) deg. 140(-70 ~ +70)
Panel weight kg 9
Panel width mm 640
Panel height mm 640
Panel depth mm 90
Panel area sq. m. 0.4096
Panel material 　 Die-cast Aluminum Magnesium Alloy
Panel mode 　 Rental
Operating temperature range deg. C -30 to +60
Humidity operating RH 10% ~ 90%
Pixel type and configuration R/G/B 3in1 SMD
Resolution per panel 　 80x80
Dot per panel 　 6,400
Dot per sq. meter 　 15,625
LED per sq. meter 　 15,625
Recommended minimum viewing distance m 6.08
Recommended best viewing distance m 8~24
Colors 　 281 Trillion
Grey scale (linear) Levels 65,536 levels per color
Brightness control Levels 256
Contrast ratio 　 1,000:1
Processing depth bit 16
Video frame rate Hertz 60
Display refresh rate Hertz 180~3,000
Input voltage (nominal) VAC 110 to 240
Input power frequency Hertz 50 to 60
Input power (max) Watts / panel. 300
Input power (typical) Watts / panel. 120
Lifetime (50% brightness) Hours ≥100,000
Red wavelength (dominant) nm 620~625
Green wavelength (dominant) nm 520~525
Blue wavelength (dominant) nm 470~475
Multimedia data format 　 DVI,MPG,AVI,WMV,RM etc.
Data interconnection 　 UTP Cat 5/Optical Fiber
Mounting system 　 Hanging / Fixed
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.
Our service:
  • Warmly welcome your visit in our company if avaiable;
  • Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc;
  • Help you to choose suitable products within budget with most economy benefit;
  • Personalized solution will be provided to you by our veteran and professional engineers and staffs
  • Factory visiting and inspecting is welcome;

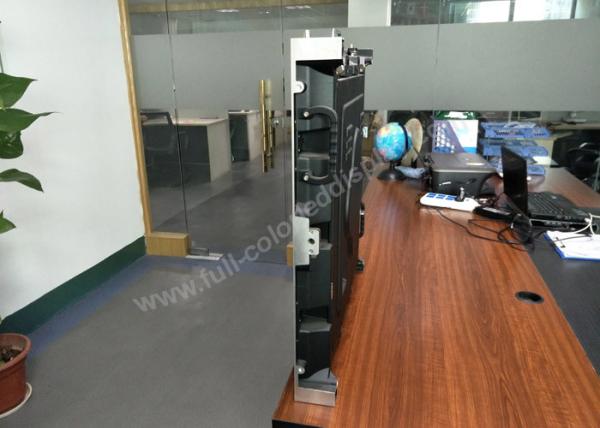

P8 Outdoor Rental LED Display​ detail:

RGB P8 Outdoor Rental LED Display 640x640mm Die Casting With Plug
