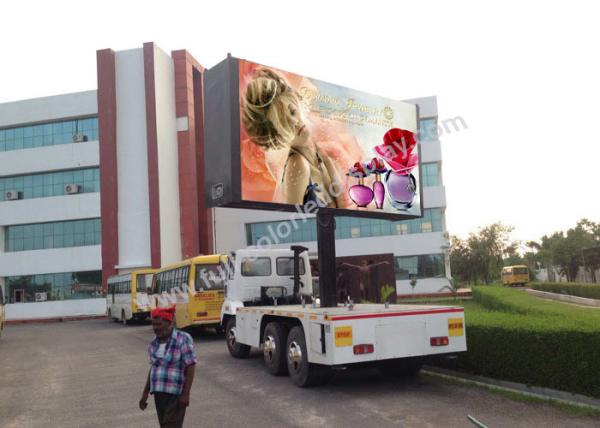

P6 high definition Truck Mobile LED Display high brightness 192 x192 mm led module
Features:
- DIP technology, high brightness. Keeps the display content visible even if facing the strong sunlight directly;
- Anti-UV, anti-oxidation module prevents from deformation;
- The design of the acrylic back cover ensures good cooling and stable performance when the led screen is working;
- Stability and reliability;
- Competitive price:We have the best competitive price with the same even better quality at the market, Our price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management;"
- High-efficiency power supply with the power factor more than 0.95;
- professional aviation packaging protection, control of the lease equipment has played a good protection effect;
Parameter:
| Description | Technical parameter |
| Unit module | Module size | 192mm*192mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m2 |
| Pixel configuration | 1R1G1B |
| Led specification | Φ 5ellipse |
| Pixel resolution | W: 32dots*H: 32dots |

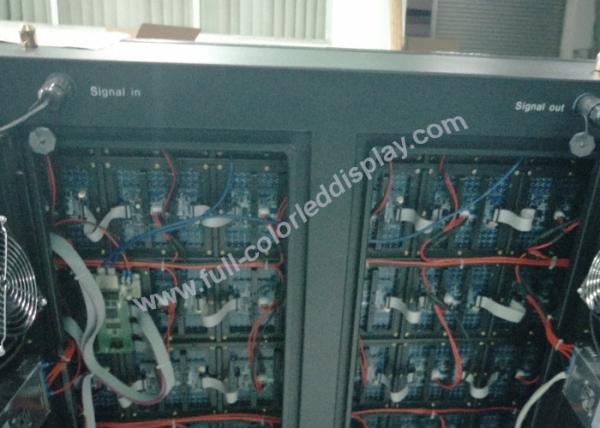

| Cabinet | Dimension | 960mm*960mm*150mm |
| Quantities of module | 25pcs |
| Power supply | 4pcs |

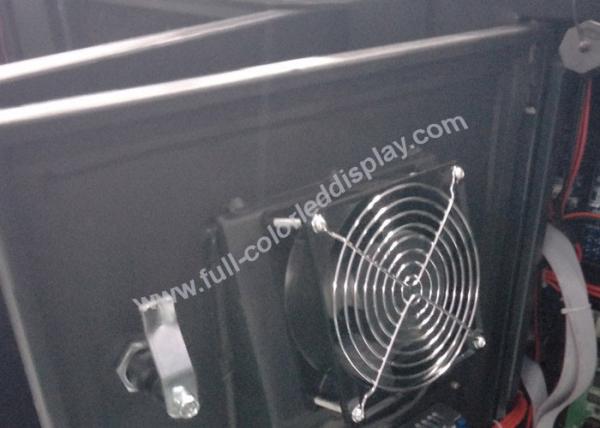

| Thermal discharge | Fan*2pcs |
| Total weight | 55kg |
| Best viewing angle | 6m-110m |
| Temperature | Storage: -40degree~+80degree |
| Working: -20degree~+80degree |
| Thickness | 15cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 600-1100W/m2 |
| Max. Power consumption | ≤ 560W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | 1/8 scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 300Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 7000cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. |
| Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
| Software | LED media player |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
Applications:
It can be widely used in public places,Auto Parts and Maintenance shops,high-rise building roof,backgound,airport,event,high-speed rail station,post office,security company and so on.
FQA:
- what is LED display?
- LED full color led display is composed of many LEDs. One pixel is made up of three colors of LEDs, colors of LED can be divided into R.G.B.led display screen can show letters,pictures.video, images and so on.
- May I know the Minimum order for your products?
- For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen;
- What is your terms of delivery?
- We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you;
- How long can I get the cargos?
- Our production time is about 10-25 working days.
- When we confirmed the order, we can start production after receiving your deposit (40% TT in advance).we will update the production details in time.we will notice you before finish and after delivery the goods to you after we get full payment.About the time from start port to destination, it depends on the distance and the state of the forwarder;
- How can i place an order?
- Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.For designing or further discussion, it is better to contact us with Skype/email /phone, incase of any delays;
