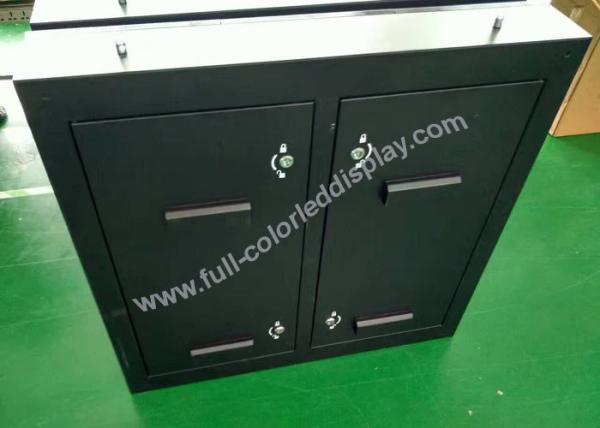

Waterproof Truck Mobile LED Display With Nova Linsn System 1/5 Scan Mode
Waterproof Truck Mobile LED Display With Nova Linsn System 1/5 Scan Mode
Waterproof Truck Mobile LED Display With Nova Linsn System 1/5 Scan Mode
Waterproof Truck Mobile LED Display With Nova Linsn System 1/5 Scan Mode
Waterproof Truck Mobile LED Display With Nova Linsn System 1/5 Scan Mode
Waterproof Truck Mobile LED Display With Nova Linsn System 1/5 Scan Mode
Waterproof Truck Mobile LED Display With Nova Linsn System 1/5 Scan Mode
Waterproof Truck Mobile LED Display With Nova Linsn System 1/5 Scan Mode
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW- FO 8
Certification :
RoHS,FCC,CCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs/month
Delivery Time :
10~18 working days after deposit received
Packaging Details :
Plywood case
Refresh frequency :
≥1,200HZ
Power switch :
Automatic switch
Temperature :
working:-20ºC~+50ºC
Drive type :
Constant drive
Port type :
HUB75-A
Pixel pitch :
8mm
Brightness of white balance :
≥5600cd/m2
Scan mode :
1/5scan
Description

Mobile trailer outdoor P8 truck led screen panel for advertising with nova linsn system .

Features:

  • Anti-UV, anti-oxidation module prevents from deformation;
  • IP65 for front,and IP54 for back , good waterproof, can be used for outdoor when it is raining;
  • Can be done with single side or double sides,screen size can be customized if your quantity is larger More pictures for understanding well;
  • Back installation for drivers,benefical to maintenance；
  • The product is with convenient installation, and flight connectors connecting；
  • Minimum space needed behind cabinet, only enough for structure & ventilation;
  • Support multimedia playback;

Parameter:

Unit Module Item Parameter
Model Number LW-FO 8
Module size 320mm*160mm
Pixel pitch 8mm
Pixels Density 15625dots/m2
Pixel configuration 1R1G1B
LED Package mode SMD3535
Pixel resolution 40dots(W)*20 dots(H)
Max Power 25W
Module thickness 17.05mm
Weight 0.38kg
Drive type Constant drive
Scan mode 1/5scan
Port type HUB75-A
Brightness of white balance ≥5600cd/m2
LED Cabinet Dimension 640mm*640mm
Monomer Module Number 8
Power supply 5V/40A*1 pcs
Thermal discharge fan 2pcs
Pixel per cabinet 80mm*80mm
Best viewing distance 8M~40M
Best viewing angle 160°(W) 120°(H)
Temperature storage:-35ºC~+85ºC
working:-20ºC~+50ºC
Relative humidity 10%-95%
Thickness 85mm
Power Working voltage AC220V±10%
Average Power consumption 140W/m2
Max.Power consumption ≤480W/m2
Current ≤20mA(single LED)
Control system CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization
Main technical parameter Driving device Constant drive IC
Refresh frequency ≥1,200HZ
Grey scale/colors 4,096gray level/16.7M colors
MTBF ≥9,000hours
Power switch Automatic switch
Display Mode ≥800*600/1024*768
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Applications:

It can be widely used in leisure square, commercial real estate,surrounding,indoor stadium,municipal public buildings,exclusive agency,gym,Internet bar,railway stations and so on.

Our service:

The size can be change as you give, your customized lightings we can help you to design and put into product;
Service principles: Response in time, solve problems as soon as possible and ensure the use;
Factory visiting and inspecting is welcome;

Project case:

Waterproof Truck Mobile LED Display With Nova Linsn System 1/5 Scan Mode



Package:

Waterproof Truck Mobile LED Display With Nova Linsn System 1/5 Scan Mode
