20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One
20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One
Specifications
Brand Name :
Noonlight
Model Number :
N-LS2.5
Certification :
DLC 5.0 / ETL / RoHS
Place of Origin :
China
MOQ :
300
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Product Name :

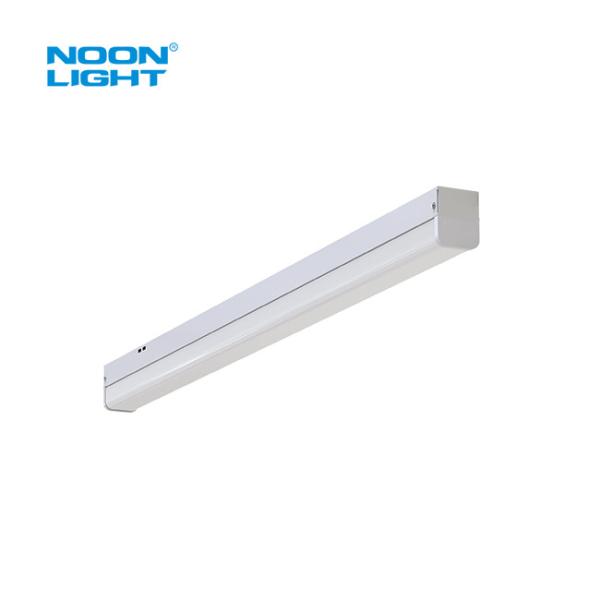

4FT 20W 130lm/W 3900lm LED Linear Strip, Warm White, Neutral White, Daylight All in One
Luminous :
Max 5200lm
Efficiency :
Super high LPW, 145LM/W@4000K
Standard Dimming :
0-10V dimmable, flicker free,with 12V auxiliary output
IP Rating :
IP20
Operating Temp :
-25°C- +40°C Ambient
Warranty(Year) :
5 years warrantly
Description

4FT 20W 130lm/W 3900lm LED Linear Strip, Warm White, Neutral White, Daylight All in One

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

  • Integrated with new trend of field-adjustable functions provide our customers greater flexiblity on power and color temperatures.
  • Optional Occupancy Sensor & Built-in Emergency Battery Backup

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

  • UP TO 135LM/W
  • An auxiliary to connect low voltage sensor/BLE or other IOT network.
  • Various Lens Option: Clear, Frosted,
  • Built-in PIR Sensor and Motion Sensor Options.
  • Built-in Emergency Driver Option.
  • L70>50,000hrs, 5 year warranty.

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle

N-LS2.5-4FT-40W-1XX-[Blank, S1, S2]-D-FL-CT-FA-Z

YES

100-277VAC

or

100-347VAC

40W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

5200

LM

130

LM/W

 120°

N-LS2.5-4FT-30W-1XX-[Blank, S1, S2]-D-FL-CT-FA-Z

YES

100-277VAC

or

100-347VAC

30W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

3900

LM

130

LM/W

 120°

N-LS2.5-4FT-24W-1XX-[Blank, S1, S2]-D-FL-CT-FA-Z

YES

100-277VAC

or

100-347VAC

24W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

3250LM

130LM/W

120°

N-LS2.5-4FT-15W-1XX-[Blank, S1, S2]-D-FL-CT-FA-Z

 YES

100-277VAC

or

100-347VAC

15W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

1950LM

130LM/W

 120°

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

Bi-level 12VDC 0-10V Motion Sensor

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

Specification

  • Dual PD Technology: can identify daylight and artificial light.
  • Input Voltage: 12VDC
  • Output: 0-10V, 25mA sinking current
  • Mounting Height: Max. 40ft.
  • Detection Range: 30ft @ 40ft height in diameter
  • IR remote commissioning: easy setting via remote controller
  • Photocell available

Default Setting/Setting

  • Sensitivity: 100%/25%, 50%, 75%, 100%
  • Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
  • Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
  • Twiligh Time: never turn off/1min, 30min, 1h, never tun off
  • Twilight Level: 20%/off, 10%, 20%, 50%

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

4W or 8W UL Listed Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 15 or 30W
  • Illumination Time: 90min
  • Battery Type:Li-ion/Ni-MH
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV
  • Protection:
  • Input over-current Protection (Fuse)
  • Output over-voltage Protection
  • Output Low Voltage Protection
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

HOW TO CHANGE THE WATTAGE IN THIS FIXTURE

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

Power Adjustable Slide Switch Position
Size/Positon W1 W2 W3 W4
4ft 40W 30W 24W 15W
8ft 80W 70W 60W 45W


20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

HOW TO CHANGE THE CCT IN THIS FIXTURE

CCT Tunable Slide Switch Position
Position/Group CCT
CCT1 3000K
CCT2 3500K
CCT3 4000K
CCT4 5000K

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One

Office, Stairwell, Corridor, Shop, Low Bay, Education, Hospital Lighting

20W 3900lm LED Linear Strip Lights Warm White Neutral White Daylight All In One
